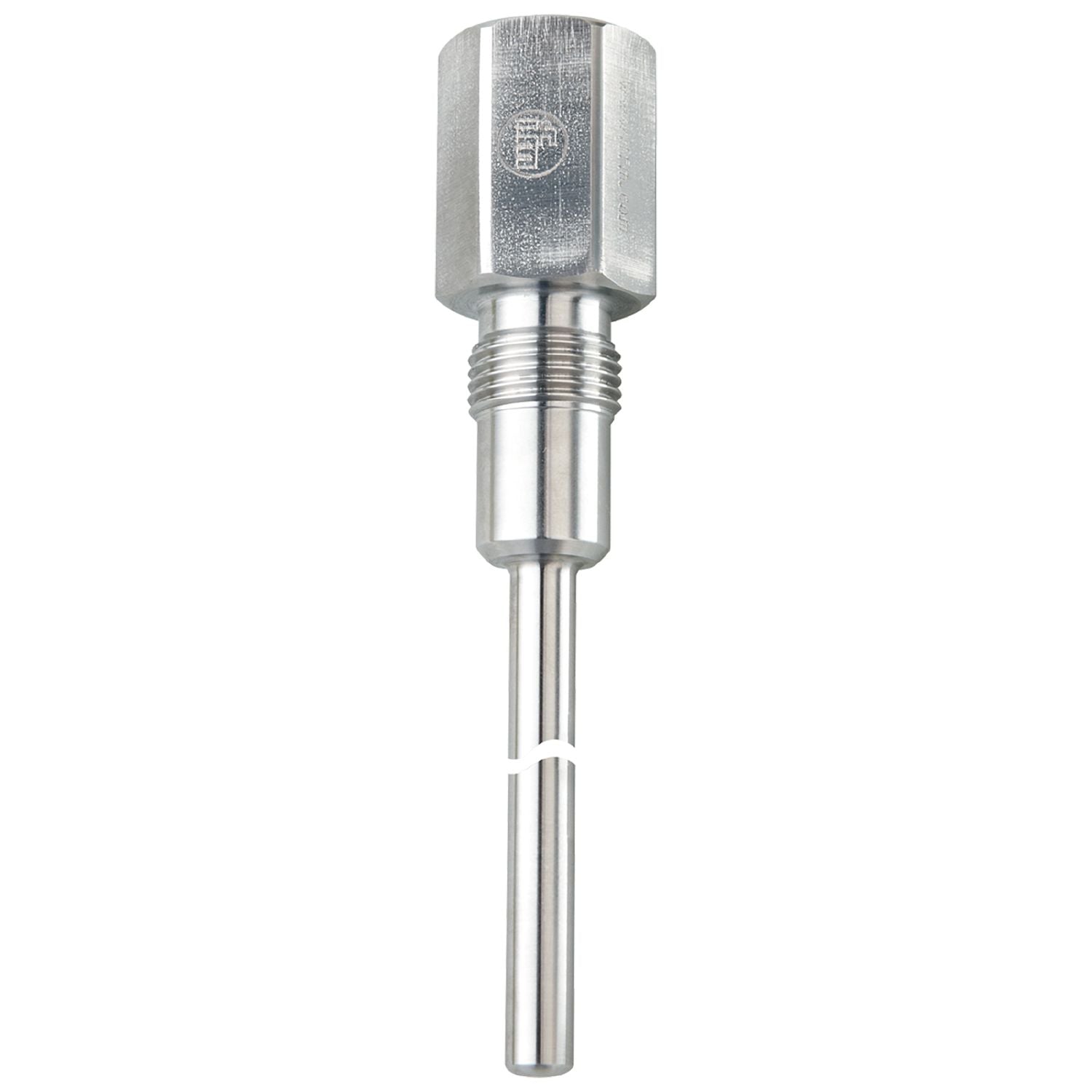

IFM E37521 - Thermowell for temperature sensors THERMOWELL, D6/ G1/2 conical/L=150

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
Robust stainless steel housing with high pressure rating.
Simple process connection via adapter.
Hygienic design for the requirements of the food and beverage industry

Design	for temperature sensors EL = 150 mm
Pressure rating [bar]	16

Weight [g]	197.5
Materials	stainless steel (1.4404 / 316L)
Sensor connection	G 1/2 sealing cone Ø 6 mm
Process connection	G 1/2
Surface characteristics Ra/Rz of the wetted parts	≤ 0.6 / -
Installation length EL [mm]	118
Bore length BL [mm]	187

Pack quantity	1 pcs.
