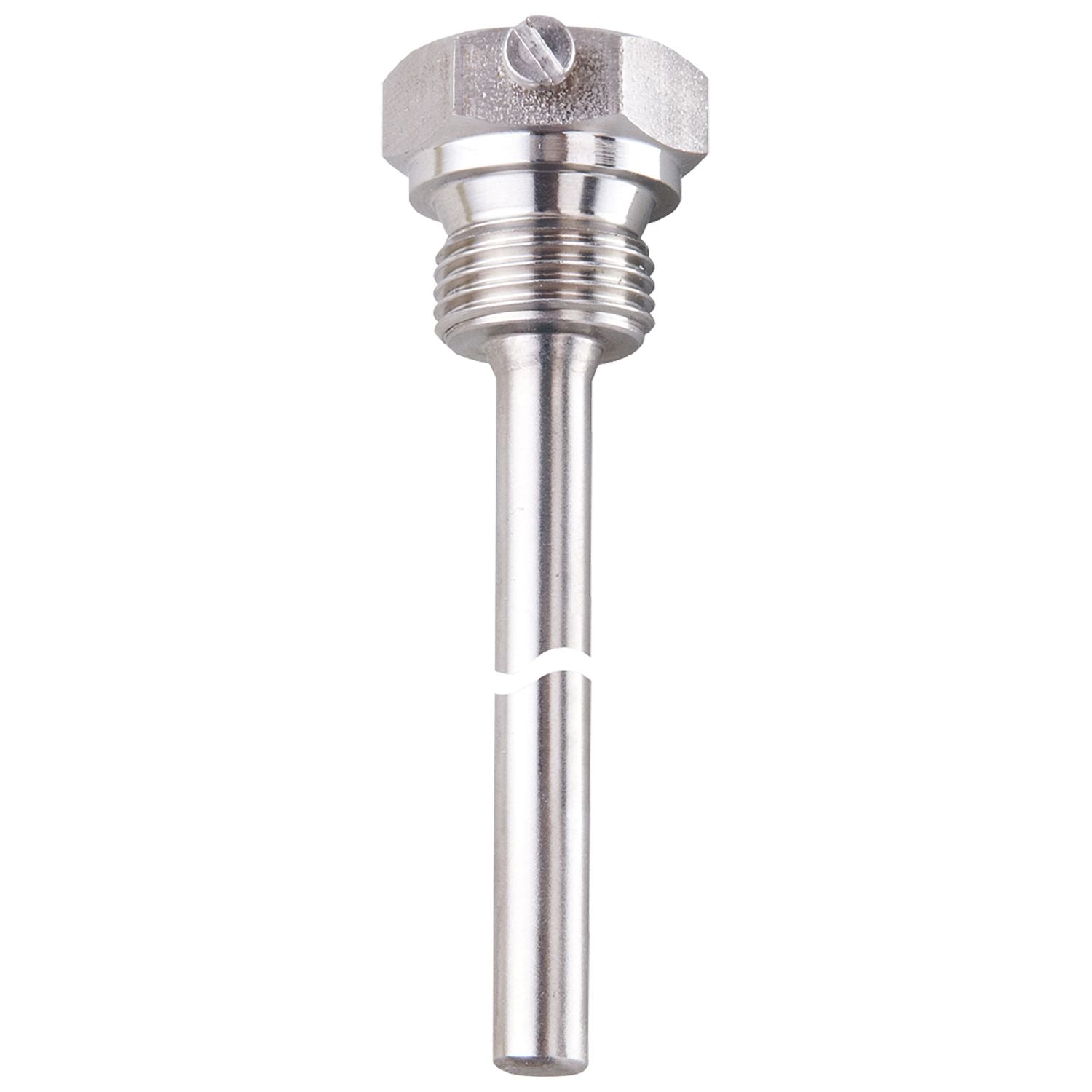

IFM E37623 - Thermowell for temperature sensors THERMOWELL, D6/ 6mm/L=150

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
High pressure rating.
Simple process connection via adapter.
Robust stainless steel housing for the requirements of harsh industrial environments

Design	for temperature sensors EL = 150 mm
Pressure rating [bar]	100
Note on pressure rating	< 250 °C

Weight [g]	115
Materials	stainless steel (1.4571/316Ti )
Sensor connection	Ø 6 mm
Process connection	G 1/2
Installation length EL [mm]	128
Bore length BL [mm]	140

Pack quantity	1 pcs.
