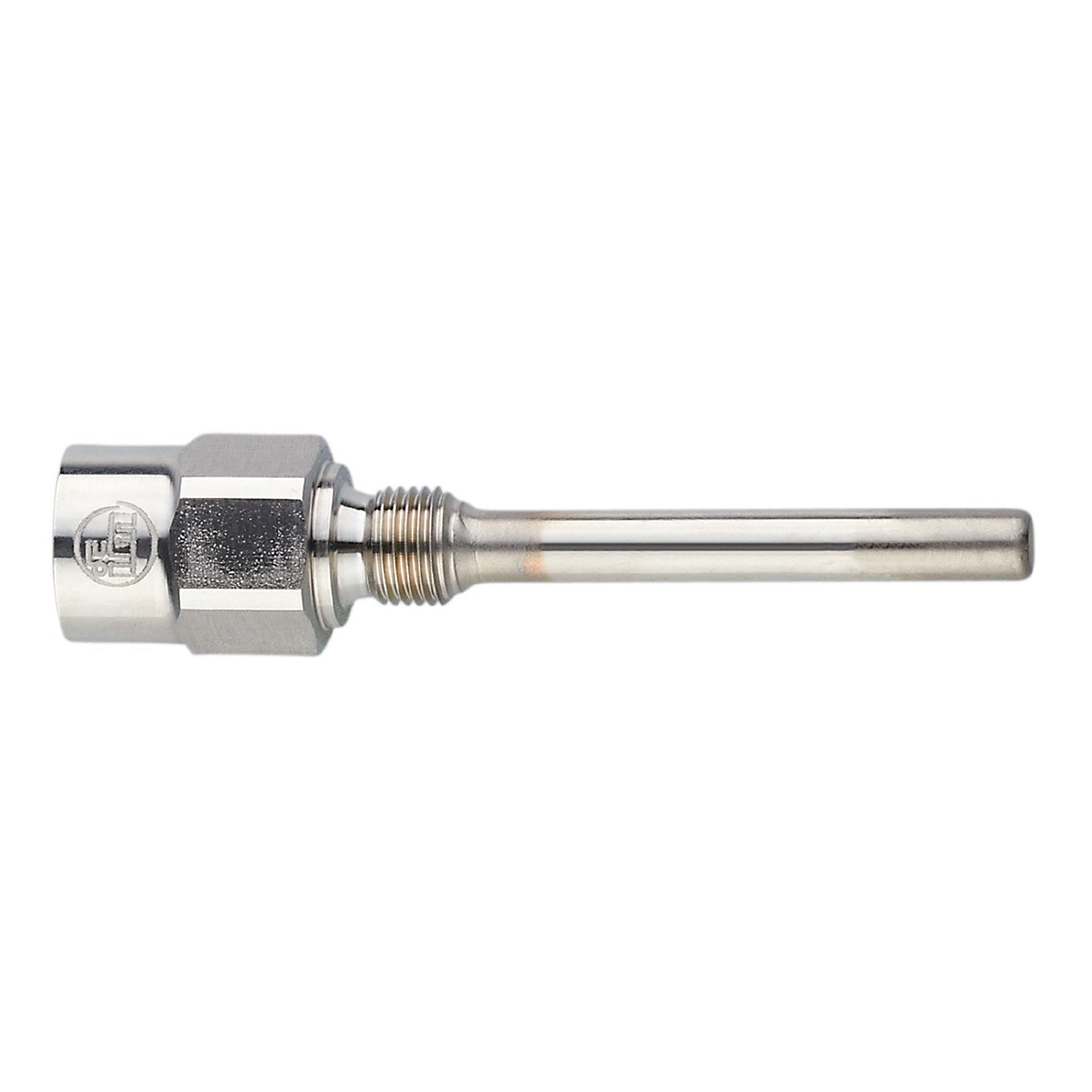

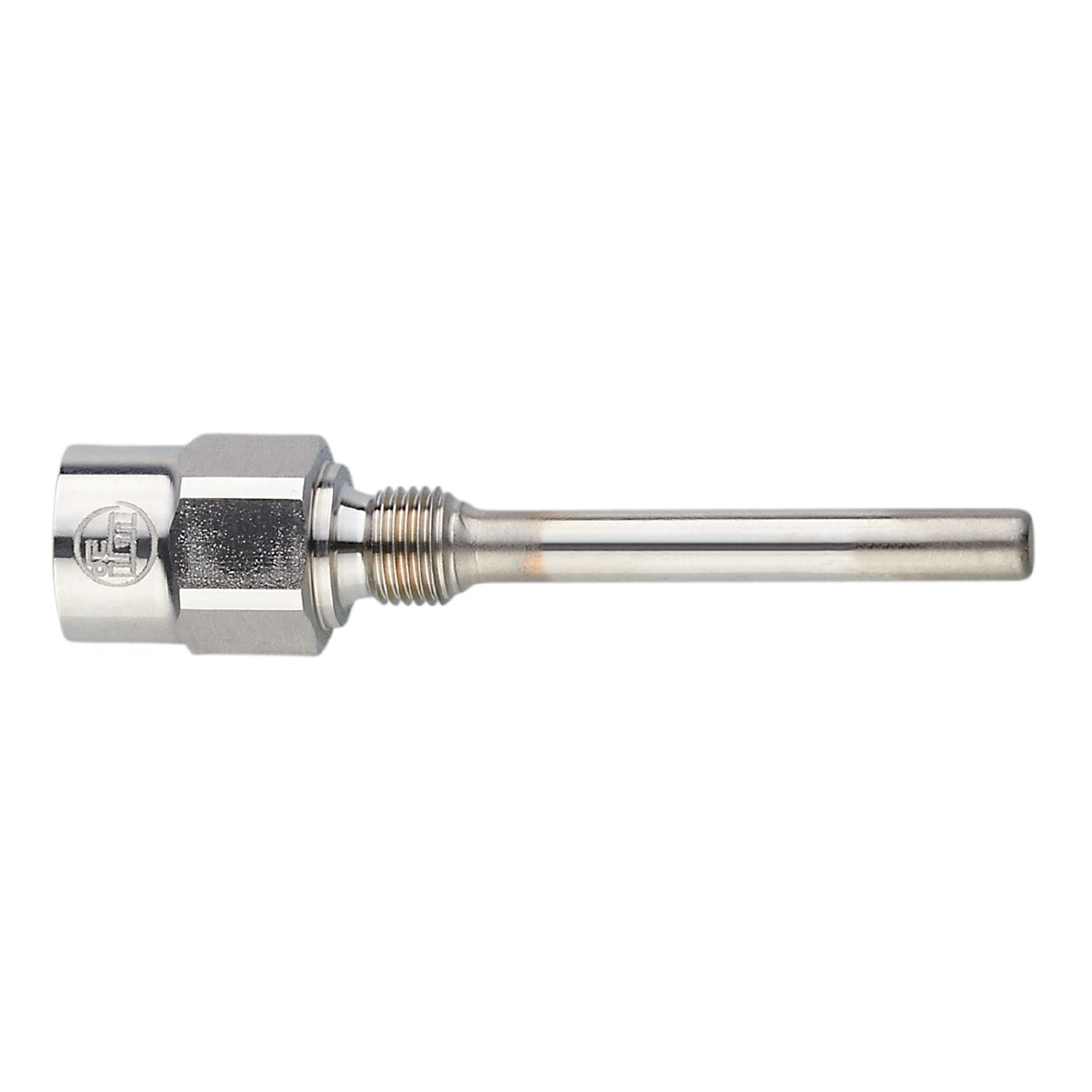

IFM E37710 - Thermowell for temperature sensors THERMOWELL, D6/ G1/4 /L=100

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
High pressure rating.
Simple process connection via adapter.
Robust stainless steel housing for the requirements of harsh industrial environments

Design	for temperature sensors EL = 100 mm
Pressure rating [bar]	100
Note on pressure rating	< 250 °C

Weight [g]	100
Materials	stainless steel (1.4571/316Ti )
Sensor connection	G 1/4 Ø 6 mm
Process connection	G 1/4
Installation length EL [mm]	74
Bore length BL [mm]	100

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E37710-00 — 06.09.2016 —
