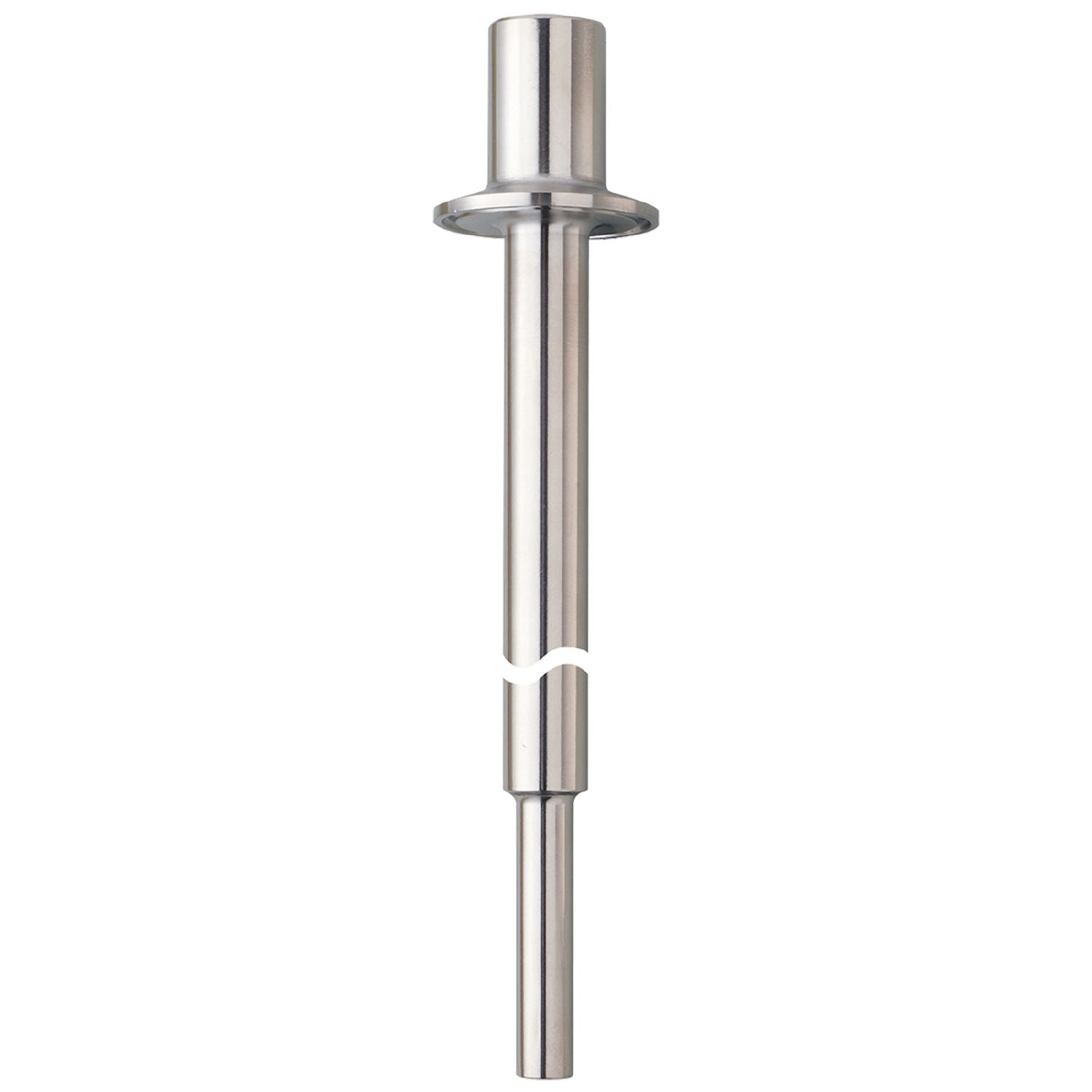

IFM E37810 - Thermowell for temperature sensors THERMOWELL, D6/1,5"CLAMP/L=100

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
Robust stainless steel housing with high pressure rating.
Simple process connection via clamp adapter.
Hygienic design for the requirements of the food and beverage industry

Design	for temperature sensors EL = 100 mm
Pressure rating [bar]	25

Weight [g]	241
Materials	stainless steel (1.4404 / 316L)
Sensor connection	1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT
Process connection	Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)
Surface characteristics Ra/Rz of the wetted parts	≤ 0.6 / -
Installation length EL [mm]	64
Bore length BL [mm]	101.6

Pack quantity	1 pcs.
