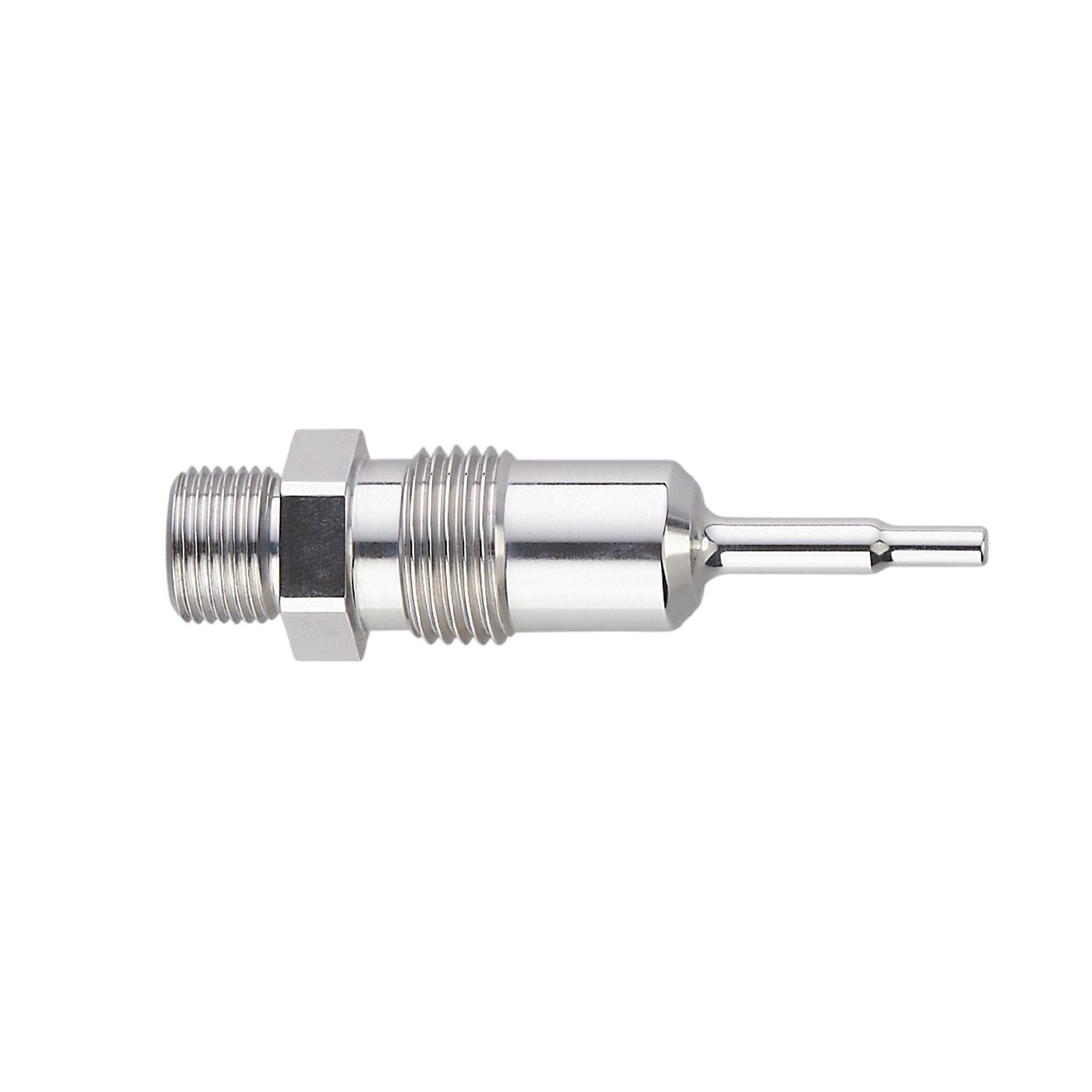

IFM E38515 - Thermowell for temperature sensors THERMOWELL, D3/G1/2 conical/EL=30

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
High pressure rating.
Simple process connection via adapter.
Hygienic design for the requirements of the food and beverage industry

Design	for temperature sensors EL = 83 mm
Pressure rating [bar]	16

Weight [g]	97
Materials	stainless steel (1.4435 / 316L)
Tightening torque [Nm]	20
Sensor connection	G 3/8 internal thread Ø 3 mm
Process connection	G 1/2
Surface characteristics Ra/Rz of the wetted parts	< 0.4 / -
Installation length EL [mm]	30
Bore length BL [mm]	83

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E38515-00 — 28.07.2021 —
