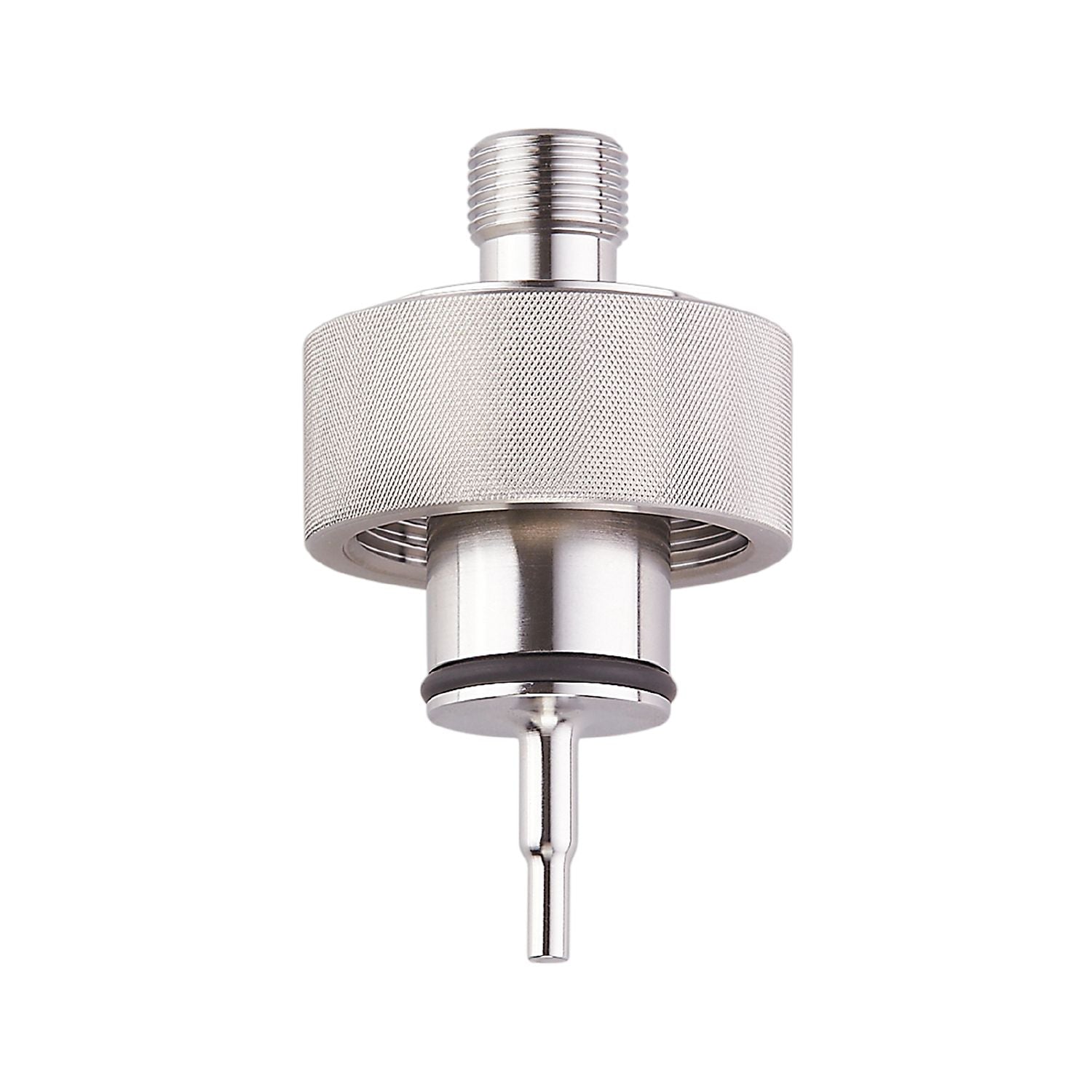

IFM E38826 - Thermowell for temperature sensors THERMOWELL, D3/DN25 Ingold/EL=25

Reliable protection against aggressive media and high flow velocities.
Allows the replacement of the temperature sensor in a running process.
High pressure rating.
Simple process connection via adapter.
Hygienic design for the requirements of the food and beverage industry

Design	for temperature sensors EL = 83 mm
Pressure rating [bar]	16

Weight [g]	868
Materials	stainless steel (1.4435 / 316L)
Sensor connection	G 3/8 internal thread Ø 3 mm
Process connection	Ingold Ø 25 mm
Surface characteristics Ra/Rz of the wetted parts	< 0.4 / -
Installation length EL [mm]	25
Bore length BL [mm]	83

Pack quantity	1 pcs.
