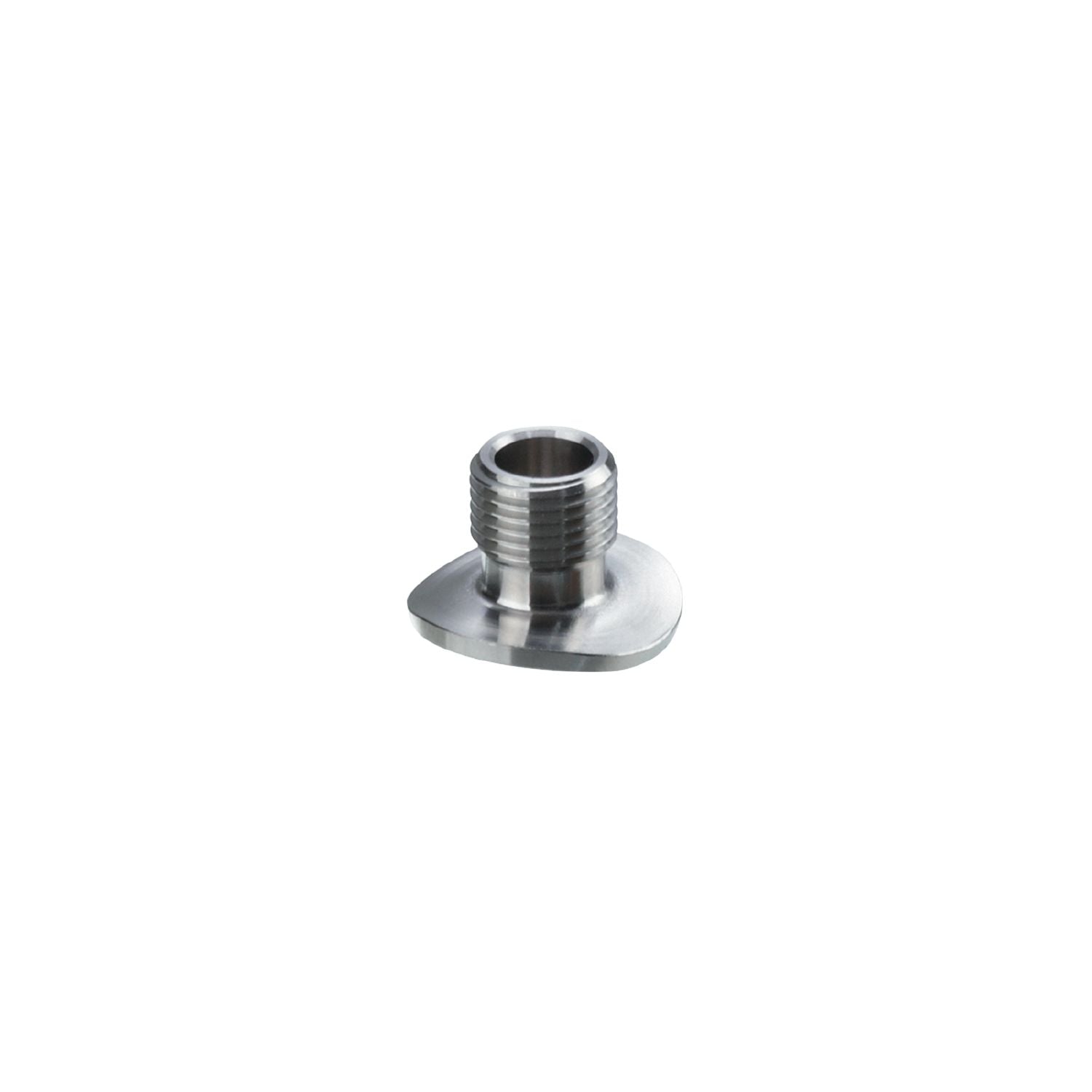

IFM E38827 - Welding adapter for process sensors ADAPT, D3/ZERO VOID/R=19/T=1.25

Welding adapter for process sensors.
For use in industrial and hygienic applications.
Robust stainless steel design for use in harsh industrial environments

Pressure rating [bar]	120
Note on pressure rating	for the connection sensor - adapter

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	8.2
Materials	stainless steel (1.4404 / 316L)
Sensor connection	G 1/8 internal thread Ø 3 mm
Process connection	welding adapter Ø 18 mm ; nominal pipe size: DN25...DN100; pipe wall thickness: 1,25 mm
Surface characteristics Ra/Rz of the wetted parts	< 0.4 / -

Pack quantity	1 pcs.
