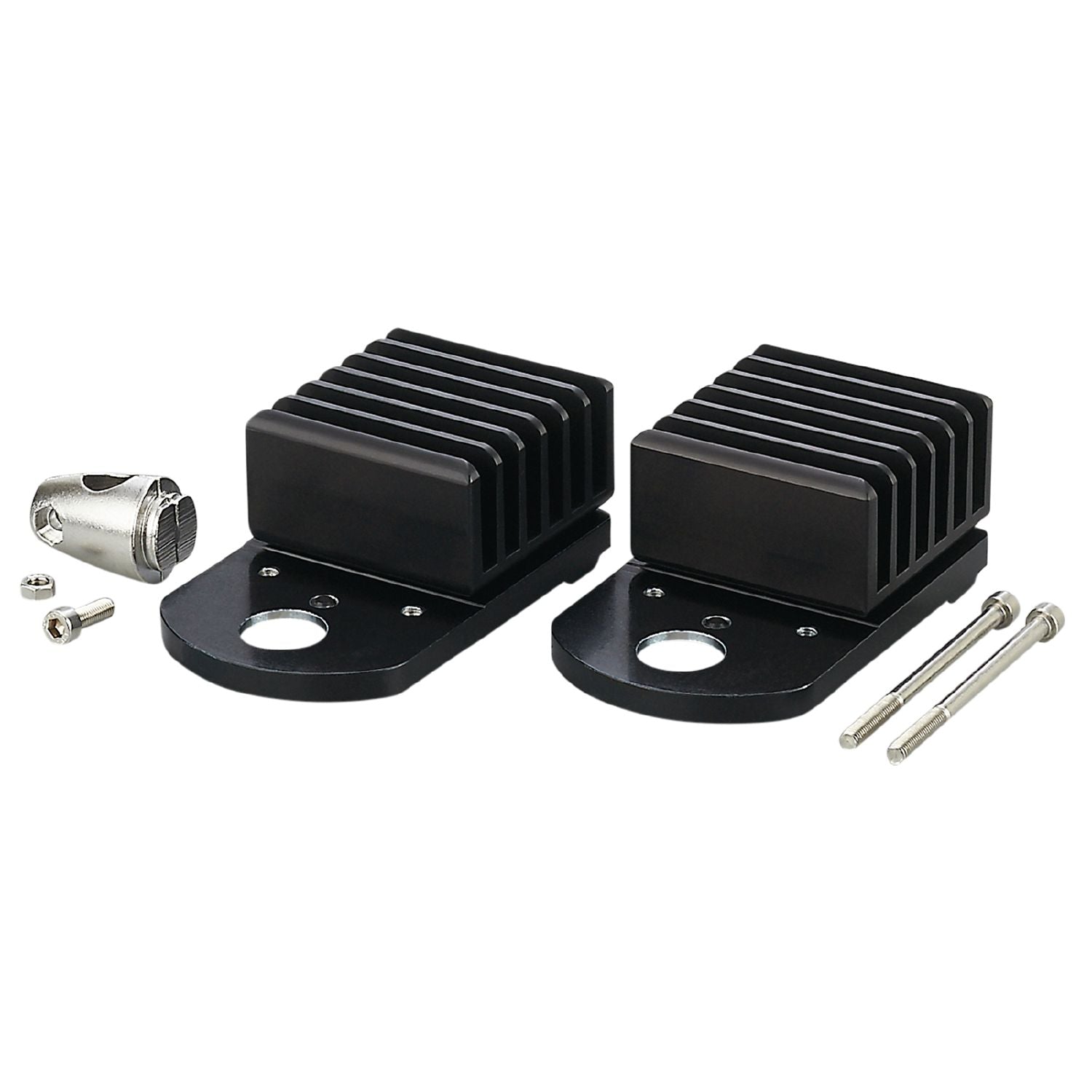

IFM E3D354 - Cooling element for 3D cameras COOLING ELEMENT 2 SMART CAM FF

Application	heat sink with variable flow direction

Weight [g]	813
Installation instruction	heat sink can be rotated by 90°
Materials	dissipator: AlSi1MgMn; Heat conductor: AlMg3

Accessories

Items supplied	Cooling elements: 2, Heat conductor fitted cylinder screws: 2 x M5 x 75 countersunk screws: 8 x M5 x 16 Clamp installation instructions

Pack quantity	1 pcs.

Diagrams and graphsifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E3D354-00 — 19.08.2019 —
