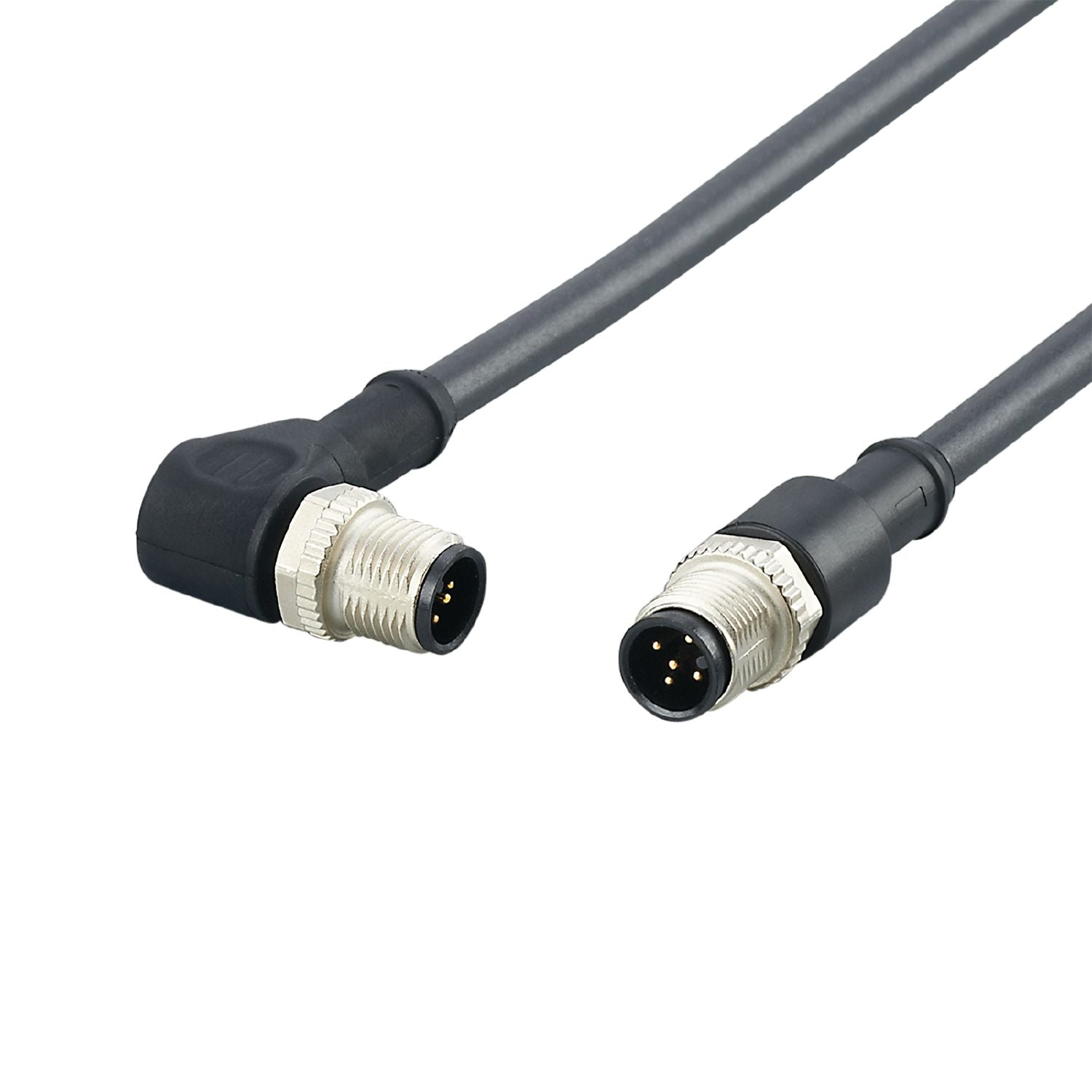

IFM E3M153 - Connection cable CONNECTION CABLE M12 16M

Reliable connection of a mobile 3D camera to a display.
Good electromagnetic compatibility thanks to shielded cable.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Screened cable; Drag chain suitability
Design	for 3D Smart sensor mobile with analogue video output PAL

Operating voltage [V]	< 25 AC / < 60 DC
Protection class	III

Operating conditions

Ambient temperature [°C]	-40...80
Protection	IP 67; IP 69K

Weight [g]	806.2
Materials	housing: PUR; Sealing: FKM; contact pins: CuSn6 nickel-plated and tin-plated
Material nut	stainless steel (1.4305 / 303)
Drag chain suitability	yes
Drag chain suitability	bending radius for fixed installation ≥ 60 mm

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, angled; coding: A; Locking: stainless steel (1.4305 / 303)

Electrical connection

Connection	Cable: 16 m, black, Ø 6 mm, shielded; 3 x 0.25 mm²

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4305 / 303)
