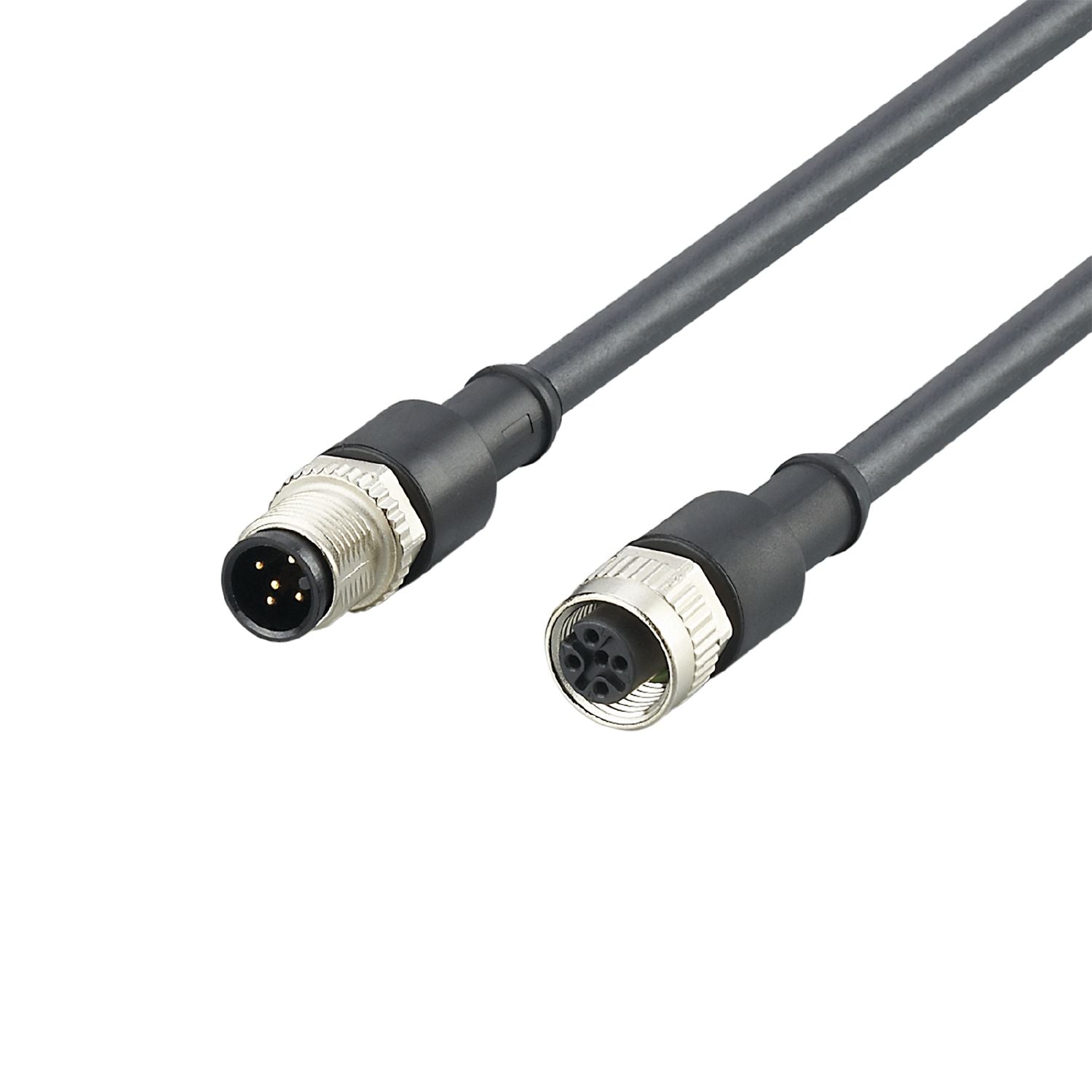

IFM E3M159 - Extension cable CONNECTION CABLE M12 5M EXT.

For the reliable connection of mobile 3D cameras.
Good electromagnetic compatibility thanks to shielded cable.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Screened cable; Drag chain suitability
Design	extension for O3M connection cable for 3D Smart sensor mobile with analogue video output PAL

Operating voltage [V]	< 25 AC / < 60 DC
Protection class	III

Operating conditions

Ambient temperature [°C]	-40...80
Protection	IP 67; IP 69K

Weight [g]	274.3
Dimensions [mm]	14.5 x 14.5 x 48.4
Materials	housing: PUR; Sealing: FKM; contact pins: CuSn6 nickel-plated and tin-plated
Material nut	stainless steel (1.4305 / 303)
Drag chain suitability	yes
Drag chain suitability	bending radius for fixed installation ≥ 60 mm

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, TPU, black, Ø 6 mm, shielded; Impedance 75 Ω

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4305 / 303)

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4305 / 303)
