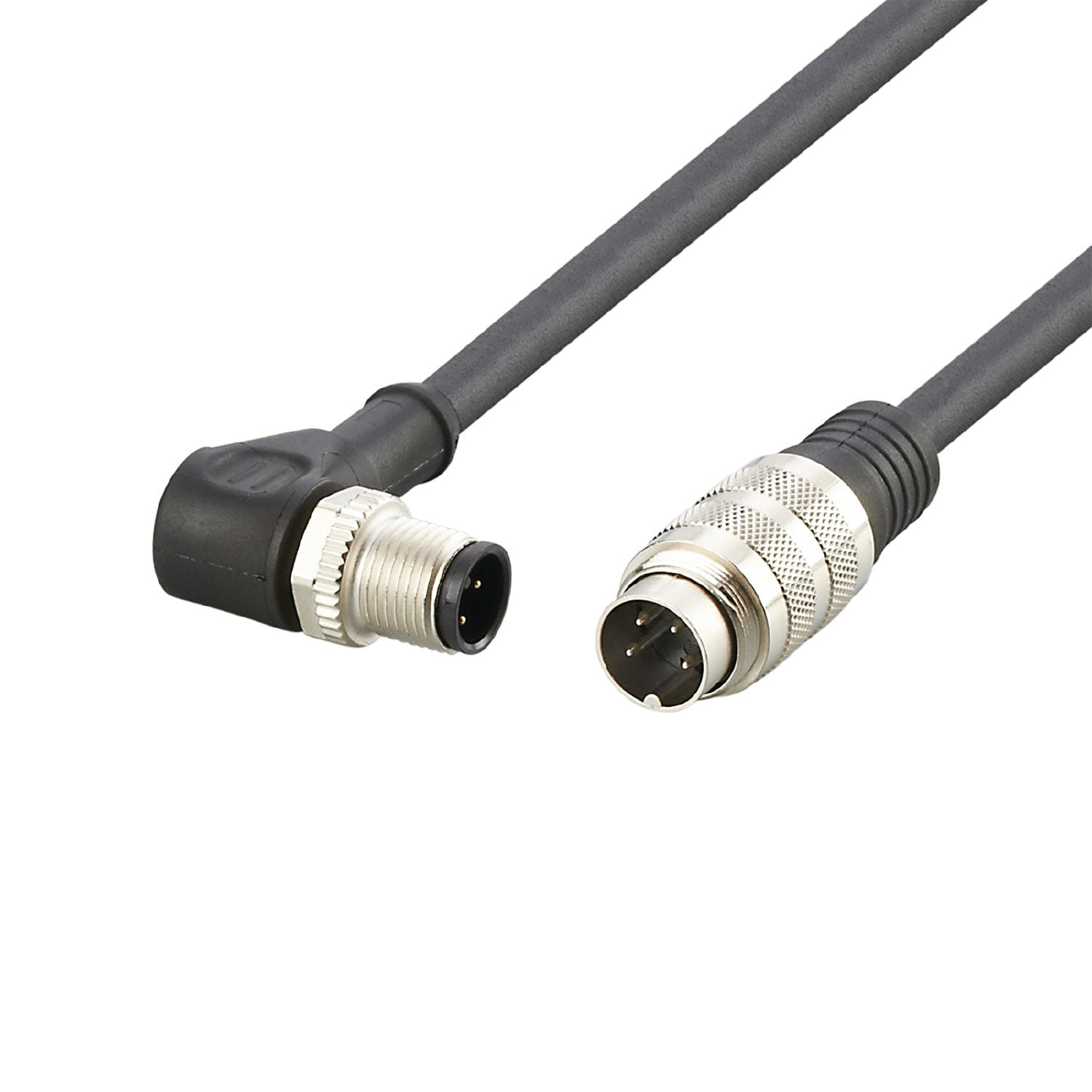

IFM E3M161 - Connection cable VIDEO ADAPTER CABLE M12 M16

Reliable connection of mobile cameras with video output.
Gold-plated contacts for reliable electrical connections.
For connection of the MultiViewBox.
Good electromagnetic compatibility thanks to shielded cable.
High protection rating for the requirements of harsh industrial environments

Special feature	Screened cable; Drag chain suitability
Design	for 3D Smart sensor mobile with analogue video output PAL

Operating voltage [V]	< 25 AC / < 60 DC

Operating conditions

Ambient temperature [°C]	-40...80
Ambient temperature (moving) [°C]	-10...70
Protection	IP 67; IP 69K

Weight [g]	92.2
Materials	PUR black; sealing ring: FKM; contact pins: CuSn6 nickel-plated and tin-plated
Moulded-body material	PUR
Material nut	stainless steel (1.4305 / 303)
Drag chain suitability	yes
Drag chain suitability	bending radius for fixed installation ≥ 60 mm

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, angled; coding: A; Moulded body: PUR; Locking: stainless steel (1.4305 / 303); Shielded connection cable: screen connected

Electrical connection

Connection	Cable: 1 m, PUR, black, Ø 6 mm, shielded; 2 x 0.25 mm²

Electrical connection - plug

	Connector: 1 x M16, straight; coding: A; Moulded body: PUR; Locking: stainless steel (1.4305 / 303); Shielded connection cable: screen connected
