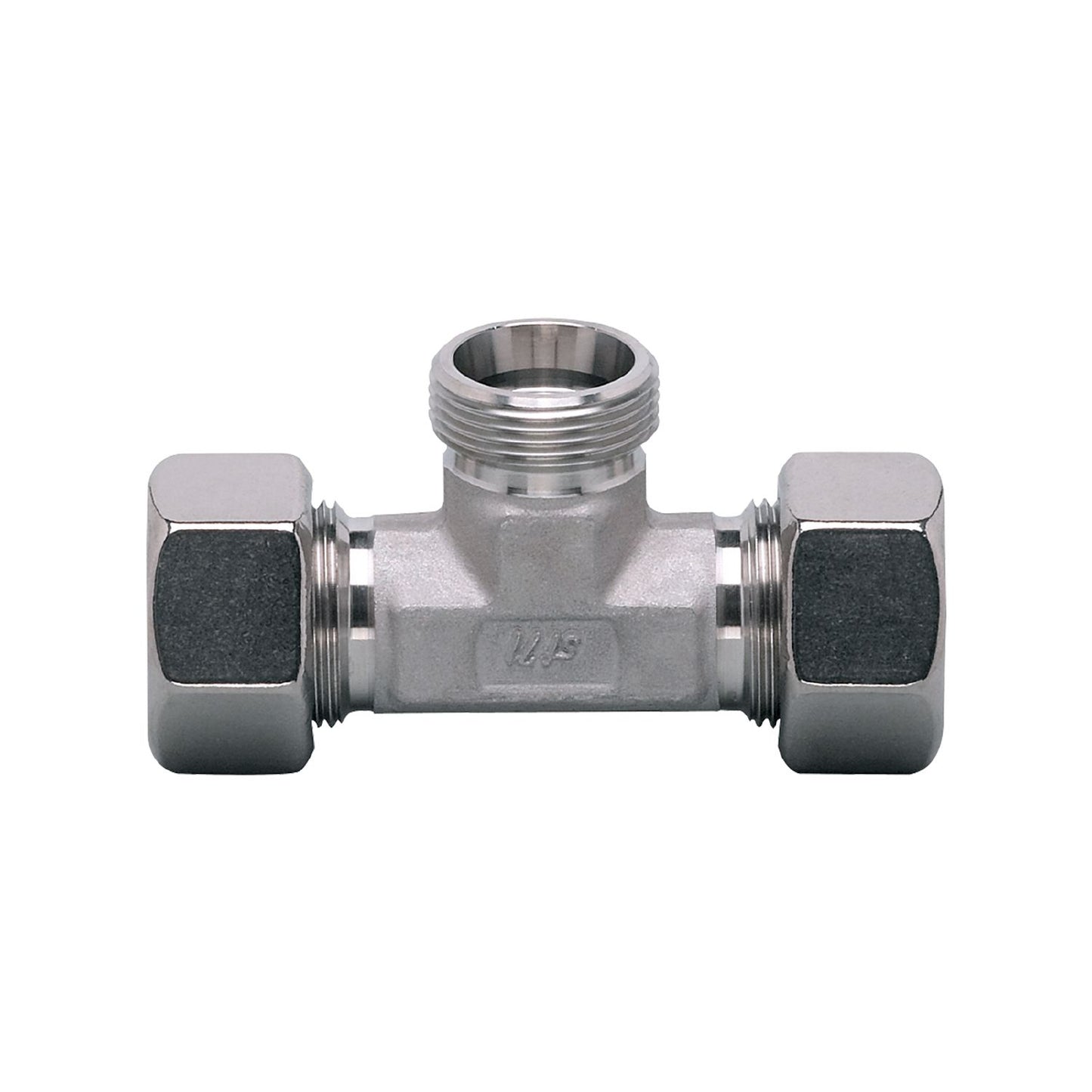

IFM E40078 - T-piece with progressive ring fitting T-PIECE QL18-18-18/VA

Safe installation of process sensors in pipes.
For use in industrial environments.
Adapter for ensuring the correct immersion depth.
High pressure rating.
Robust stainless steel housing

Design	for sensors and adapters with process connection M26x1,5
Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	315

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	292.7
Type of mounting	Recommendation: precision steel pipes18 x 1,5 DIN 2391/ISO 3304
Materials	stainless steel (1.4571/316Ti )
Sensor connection	M26 x 1,5
Process connection	Ø 18 mm

Accessories

Accessories (optional)	Adapter: 1 x M18 x 1,5, for direct connection of flow sensors, E40104

Remarks	Use a lubricating paste which is suitable and approved for the application Observe the notes on the installation of progressive ring fittings
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40078-00 — 10.11.2014 —
