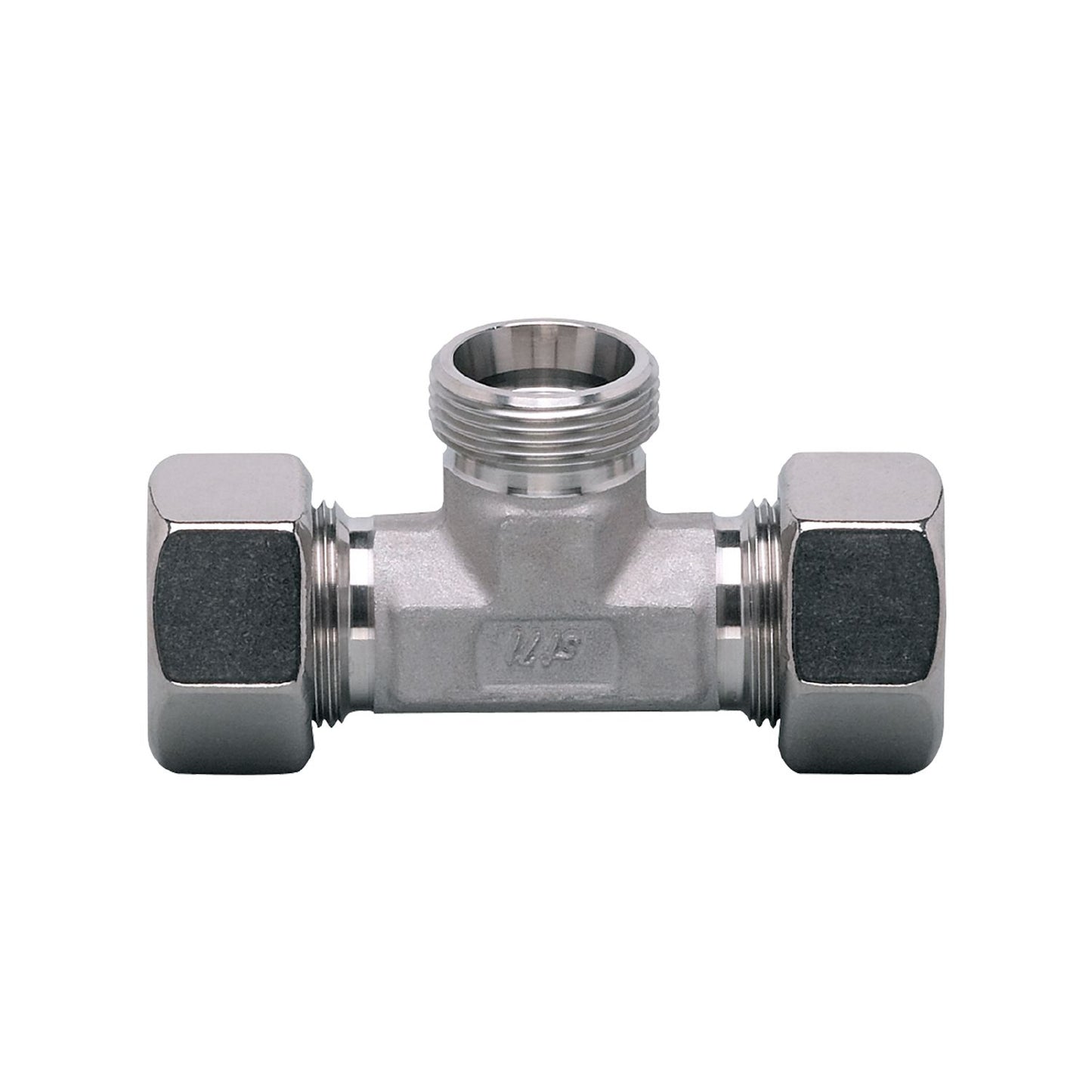

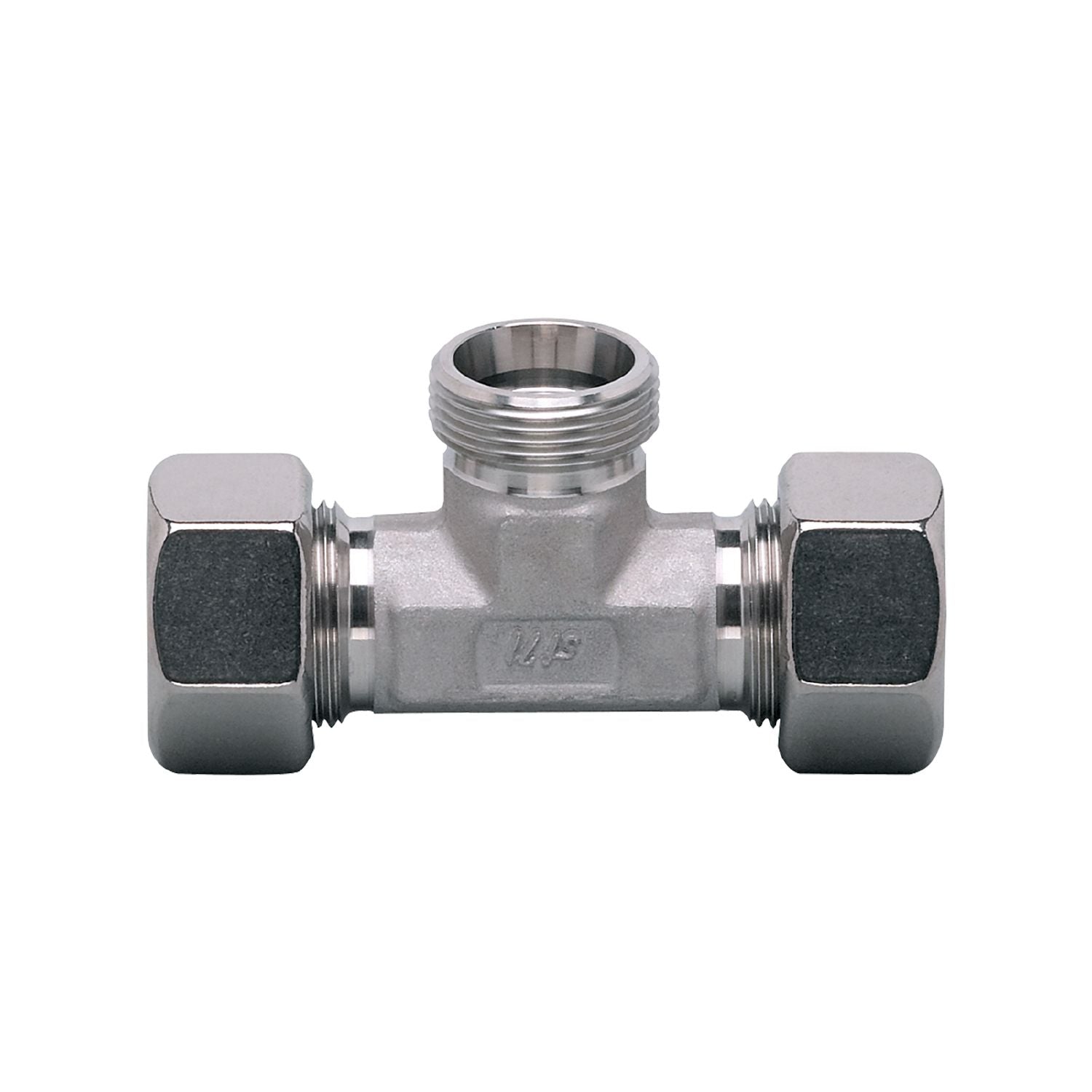

IFM E40082 - T-piece with progressive ring fitting T-PIECE QL22-18-22/MS

Safe installation of process sensors in pipes.
For use in industrial environments.
Adapter for ensuring the correct immersion depth.
High pressure rating

Design	for sensors and adapters with process connection M26x1,5
Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	160

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	378.2
Type of mounting	Recommendation: precision steel pipes22 x 1,5 DIN 2391/ISO 3304
Materials	brass (2.0401)
Sensor connection	M26 x 1,5
Process connection	Ø 22 mm

Accessories

Accessories (optional)	Adapter: 1 x M18 x 1,5, for direct connection of flow sensors, E40104

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40082-00 — 10.11.2014 —
