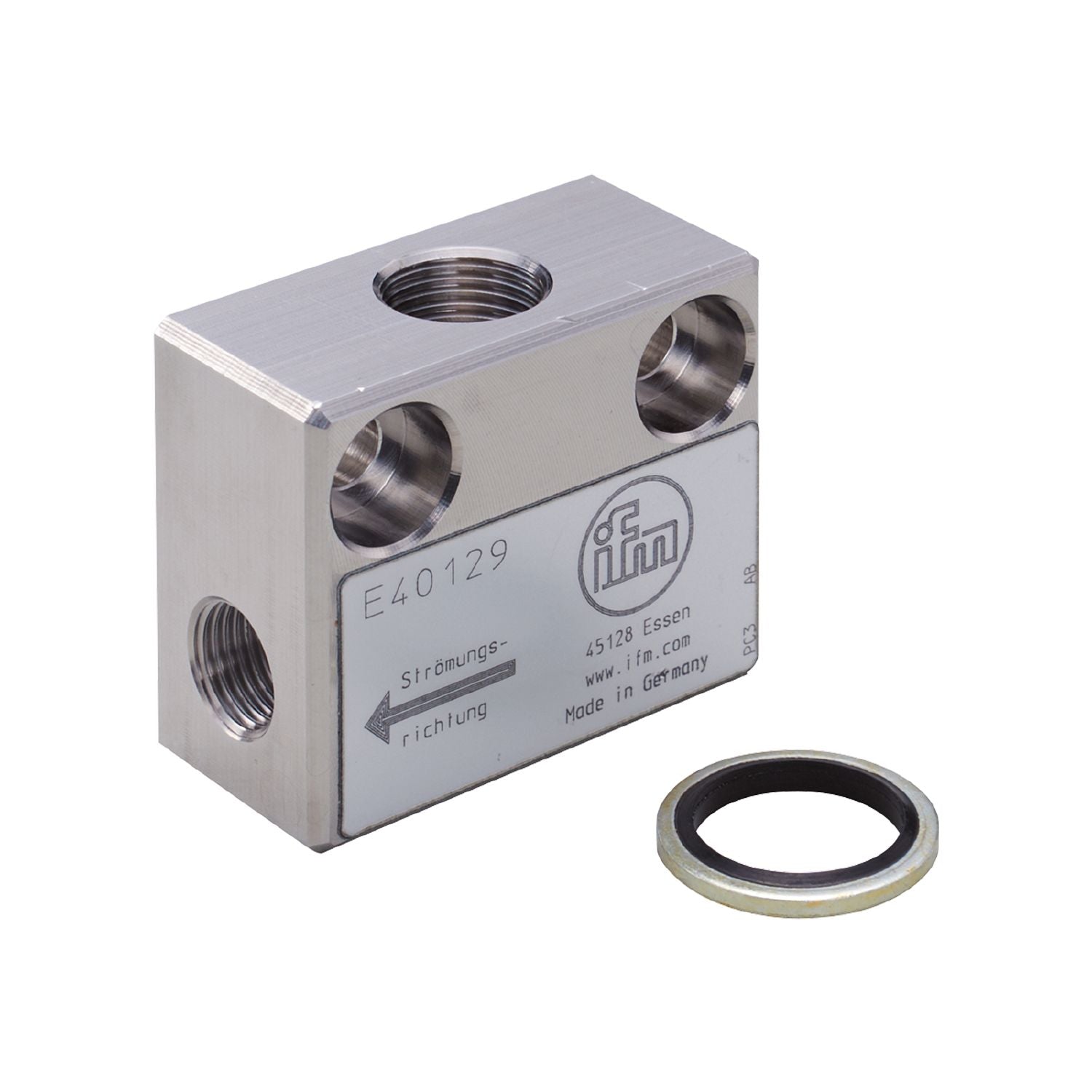

IFM E40129 - Process adapter for small volumetric flow quantities FLOW ADAPT SI

Reliable detection of small flow rates.
Easy installation of the flow sensor via adapter.
Very high pressure rating.
Robust stainless steel design for use in harsh industrial environments.
Suitable for liquids and gases

Design	for flow sensors and flow monitors
Application	for industrial applications
Installation	via internal G1/8A male thread, any mounting position
Media	liquids and gases
Medium temperature [°C]	0...80;(Temperature gradient: 1 K/min)
Pressure rating [bar]	300

Measuring/setting range

Flow range [ml/min]	2...100

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	156.5
Dimensions [mm]	M12 x 1
Thread designation	M12 x 1
Materials	stainless steel (1.4404 / 316L)
Sensor connection	M12 x 1
Process connection	G 1/8

Accessories

Items supplied	sealings: 1, U-seal
Accessories (optional)	Adapter: ≤ 30 bar, E40101 Adapter: ≤ 300 bar, E40236

Remarks	Can only be used in combination with the flow sensor’s relative operating mode.
Pack quantity	1 pcs.
