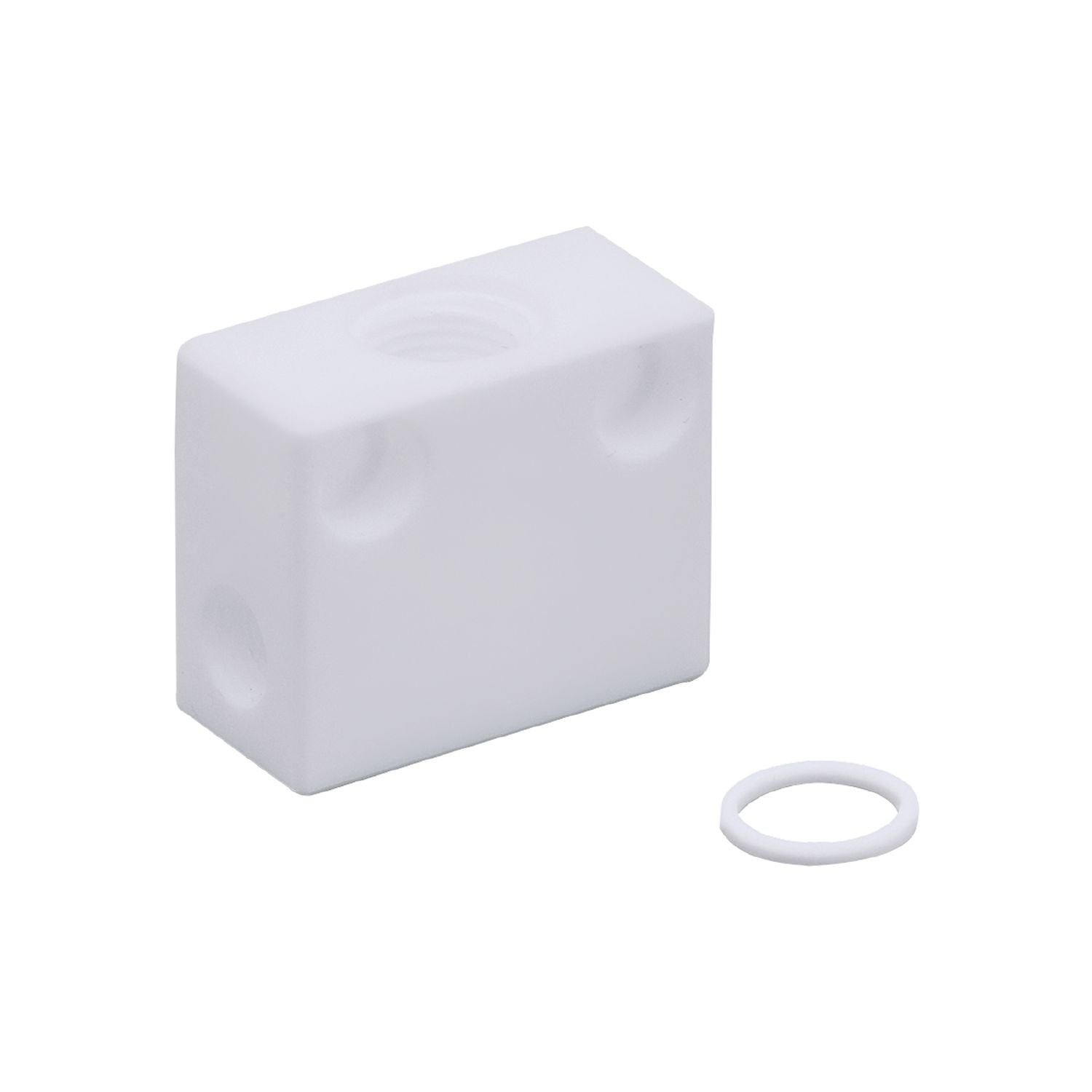

IFM E40159 - Process adapter for small volumetric flow quantities FLOW ADAPT SF PTFE

Reliable detection of small flow rates.
Easy installation of the flow sensor via adapter.
High pressure rating.
Robust design for use in aggressive media.
Suitable for liquids and gases

Design	for flow sensors with ceramic probeG¼
Installation	via internal G1/8A male thread, any mounting position
Medium temperature [°C]	0...80
Pressure rating [bar]	30

Measuring/setting range

Flow range [ml/min]	2...50

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	48
Materials	PTFE
Sensor connection	G 1/4
Process connection	G 1/8

Remarks	Can only be used in combination with the flow sensor’s relative operating mode.
Pack quantity	1 pcs.
