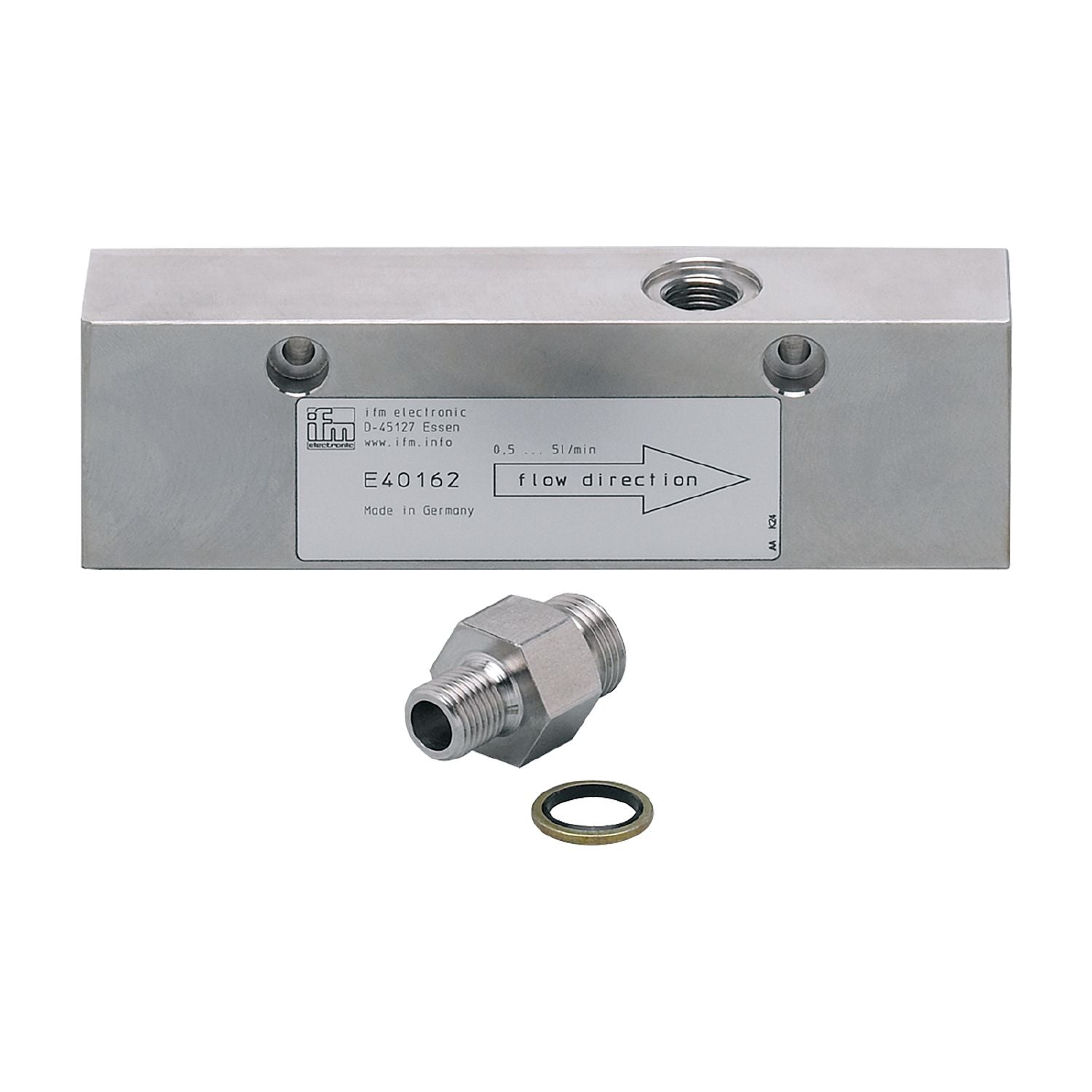

IFM E40162 - Process adapter for small volumetric flow quantities ADAPTBLOCK D16 G1/2

For the installation of flow sensors in pipes.
For the precise detection of a defined volumetric flow quantity.
Easy, quick and secure mounting.
Very high, reliable overload pressure rating.
Robust stainless steel design for use in harsh industrial environments

Design	for flow sensors SID, SF5
Flow range [l/min]	0.5...5;((SI1xxx); 0.5...7 (SI5xxx); factory setting with water)
Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	300

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	1346.5
Materials	stainless steel (1.4404 / 316L)
Sensor connection	M18 x 1,5
Process connection	G 1/2

Accessories

Items supplied	Adapter: 1 x G1/4 BSPP, E40099 sealings: 1, U-seal

Remarks	Can only be used in combination with the flow sensor’s relative operating mode.
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40162-00 — 11.11.2014 —
