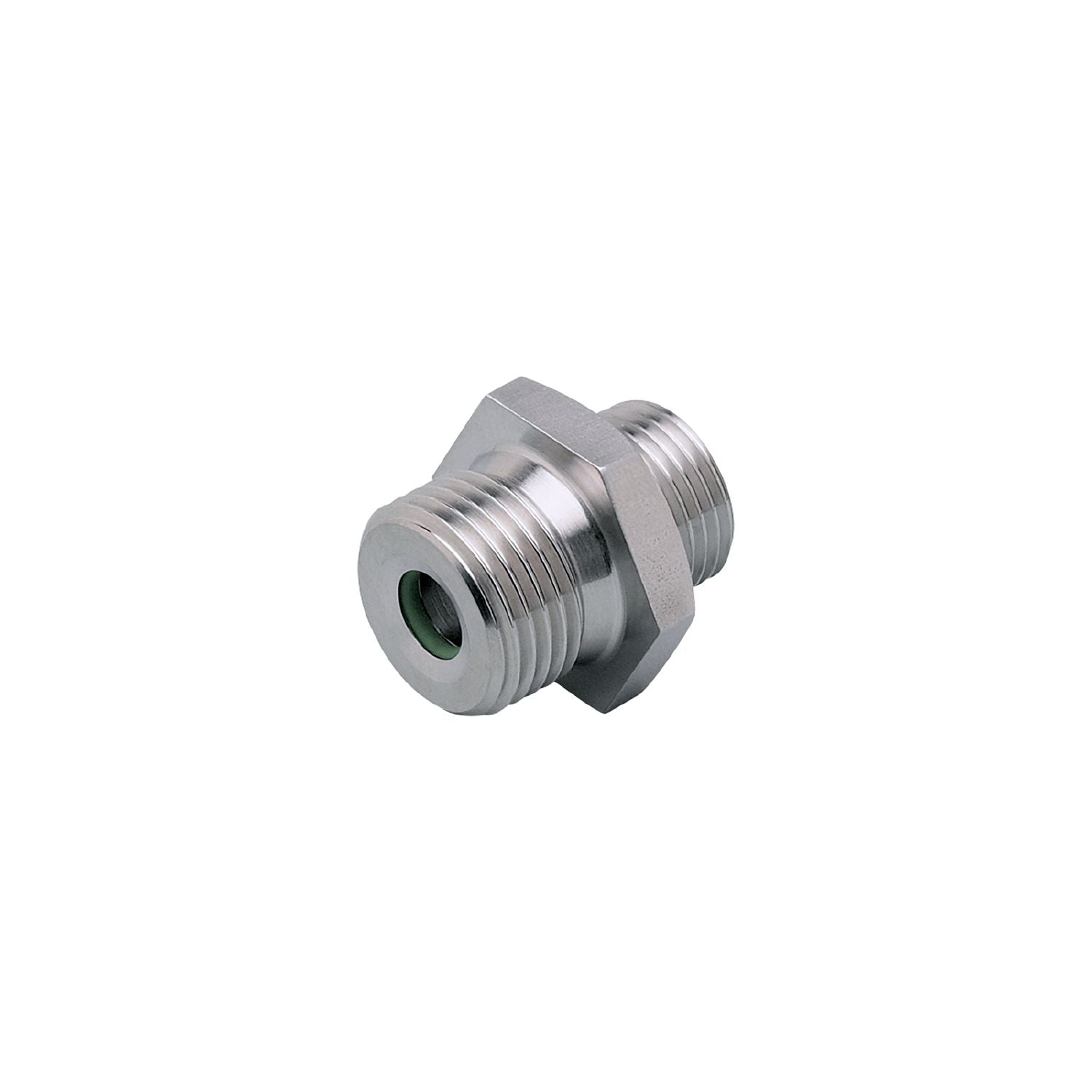

IFM E40175 - Screw-in adapter for process sensors ADAPT /SI/9/ /G1/2 /

For the installation of flow sensors in pipes.
Easy, quick and secure mounting.
Suitable for ultrasonic sensors and magnetic-inductive sensors.
Requested sealings supplied with the unit.
Robust design for use in harsh industrial environments

Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	30

Weight [g]	61.6
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	Hastelloy C-4 (2.4610)
Sensor connection	M18 x 1,5
Process connection	threaded connection G 1/2
Insertion depth [mm]	21;(measuring probe SID, SFD, TN)

Accessories

Items supplied	sealings: 1, AFM

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40175-00 — 11.11.2014 —
