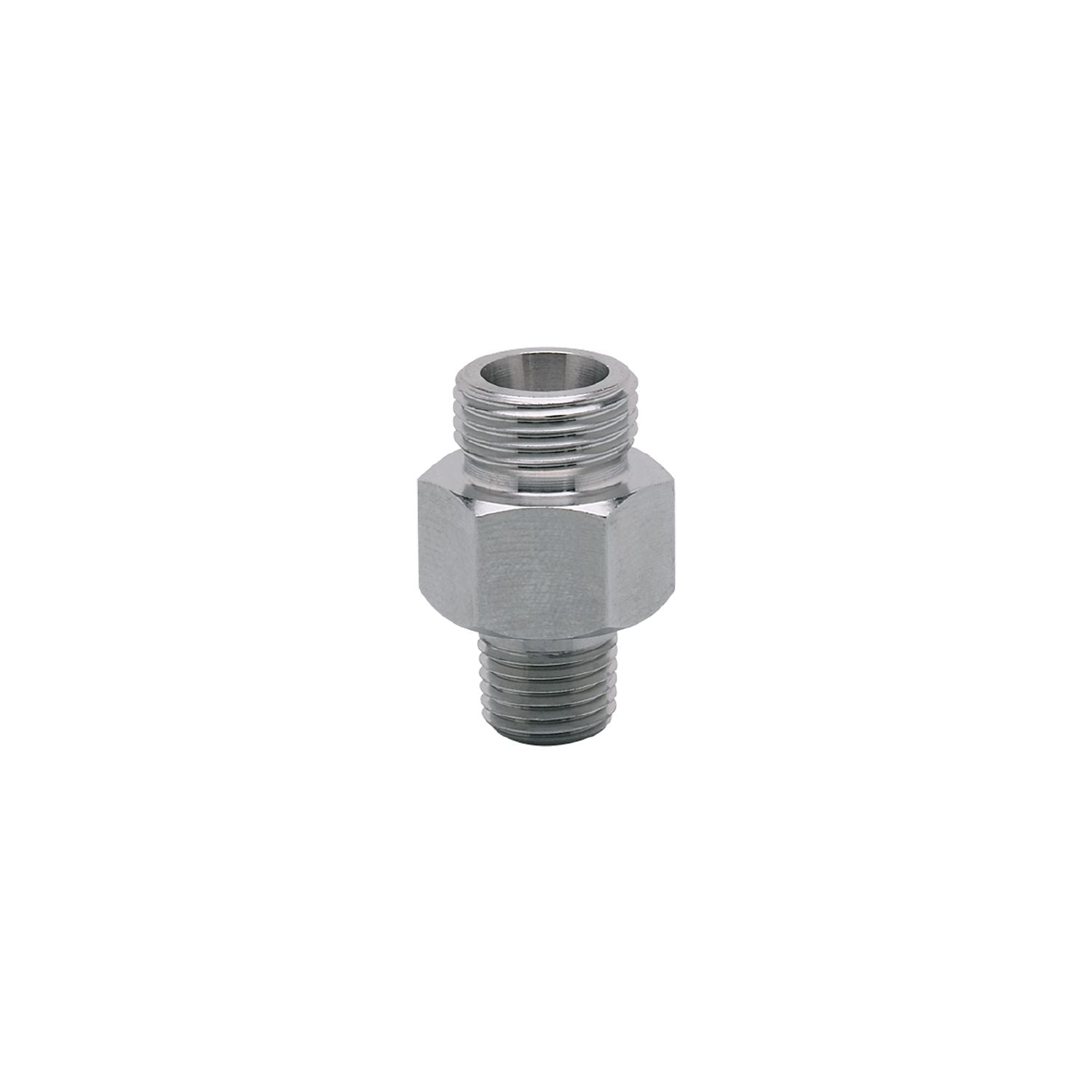

IFM E40176 - Screw-in adapter for process sensors ADAPT /SI/9/ /G1/4 /

For the installation of flow and temperature sensors in containers and pipes.
Easy, quick and secure mounting.
Suitable for liquids and gases.
High permissible overload pressure rating.
Robust design for use in harsh industrial environments

Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	30

Weight [g]	62.8
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	Hastelloy C-4 (2.4610)
Sensor connection	M18 x 1,5
Process connection	threaded connection G 1/4
Insertion depth [mm]	13.5;(measuring probe SID, SFD, TN)

Accessories

Items supplied	sealings: 1, AFM

Pack quantity	1 pcs.
