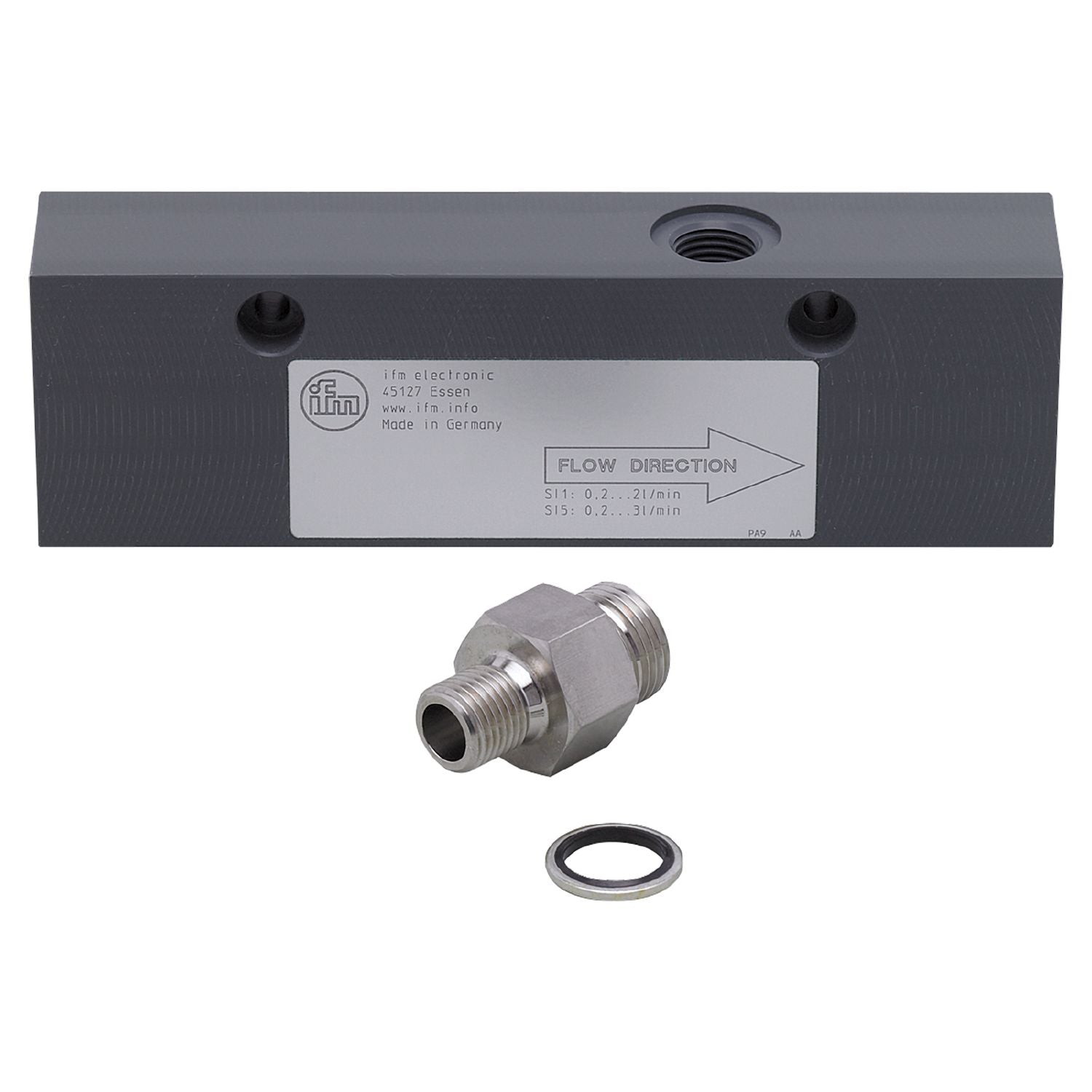

IFM E40181 - Process adapter for small volumetric flow quantities ADAPTBLOCK D10 G1/4 PVC

Reliable detection of small flow rates.
Easy installation of the flow sensor via adapter.
Robust design for use in harsh industrial environments.
Suitable for liquids and gases.
Adapter supplied with the unit

Design	for flow sensors SID, SF5
Flow range [l/min]	0.2...2;((SI1xxx); 0.2...3 (SI5xxx); factory setting with water)
Application	for industrial applications
Media	liquids and gases
Medium temperature [°C]	-25...60
Pressure rating [bar]	6

Weight [g]	404.5
Materials	PVC
Sensor connection	M18 x 1,5
Process connection	G 1/4

Accessories

Items supplied	Adapter: 1 x G1/4 BSPP, E40099 sealings: 1, U-seal

Remarks	Can only be used in combination with the flow sensor’s relative operating mode.
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40181-00 — 11.11.2014 —
