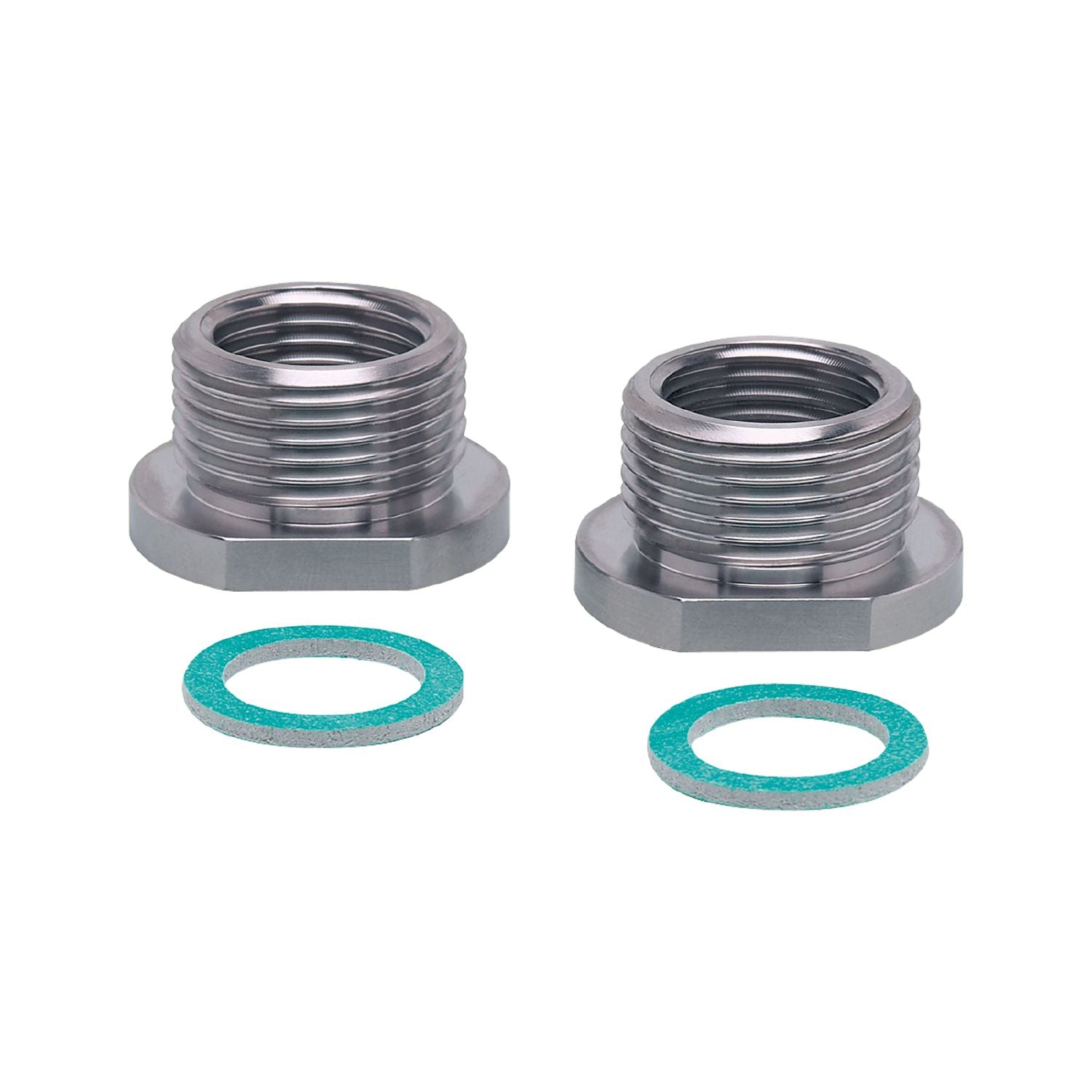

IFM E40189 - Mounting adapter for flow sensors ADAPT G1/2"-3/4"

For the installation of flow sensors in pipes.
Easy, quick and secure mounting.
Suitable for ultrasonic sensors and magnetic-inductive sensors.
Requested sealings supplied with the unit.
Robust design for use in harsh industrial environments

Design	for flow sensors SM6

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	86
Materials	Adapter: stainless steel (1.4404 / 316L); O-ring: FKM 24 x 2 mm; Gasket: Centellen
Sensor connection	G 1/2
Process connection	threaded connection G 3/4 external thread
Sealing	flat seal

Accessories

Items supplied	O-rings: 2 O-rings: 2

Pack quantity	2 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40189-00 — 23.05.2007 —
