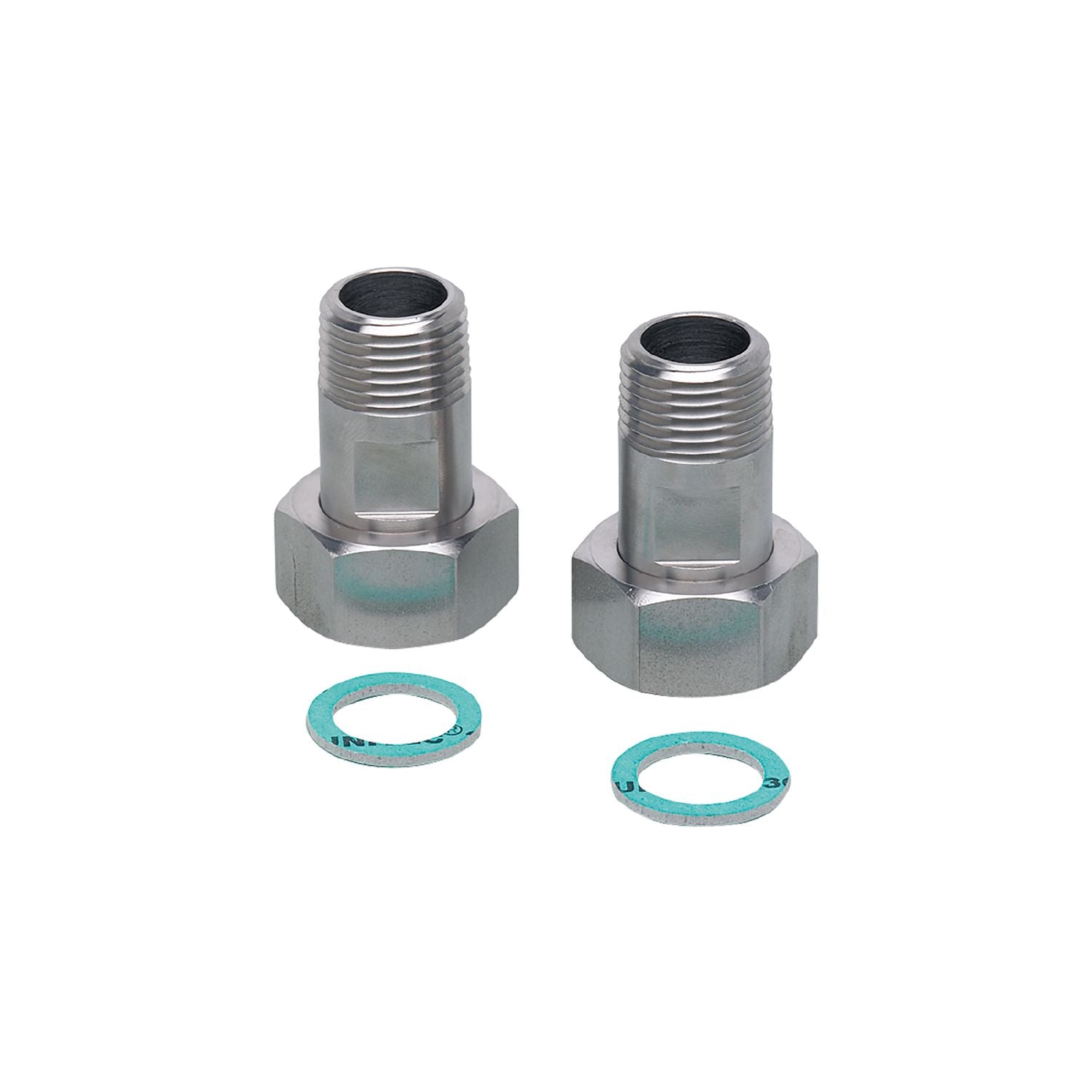

IFM E40191 - Mounting adapter for flow sensors ADAPTER G3/4-NPT1/2/V4A

For the installation of flow sensors in pipes.
Easy, quick and secure mounting.
Suitable for ultrasonic sensors and magnetic-inductive sensors.
Requested sealings supplied with the unit.
Robust design for use in harsh industrial environments

Design	for flow sensors SM7 / SU7
MAWP (for applications according to CRN) [bar]	16

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	207
Materials	Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 17 x 24 x 3 mm
Sensor connection	G 3/4
Process connection	threaded connection 1/2" NPT

Accessories

Items supplied	O-rings: 2

Pack quantity	2 pcs.
