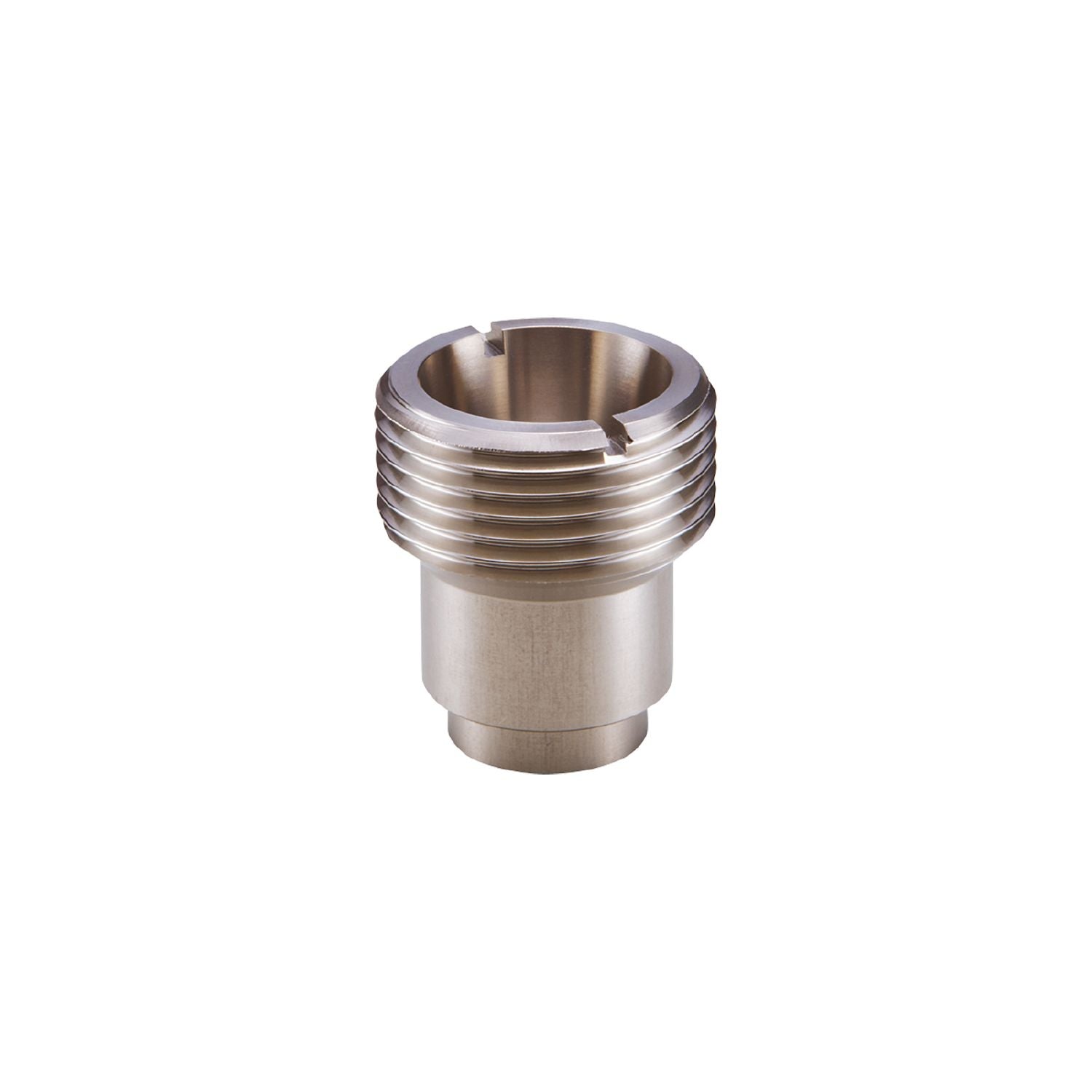

IFM E40195 - Welding adapter for process sensors ADAPT SD G1

For the installation of compressed air meters in pipes.
Robust stainless steel design for use in harsh industrial environments

Design	for compressed air meters SD

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	111.7
Materials	stainless steel (1.4404 / 316L)
Sensor connection	G 1 internal thread
Process connection	welding adapter Ø 20 mm

Pack quantity	1 pcs.
