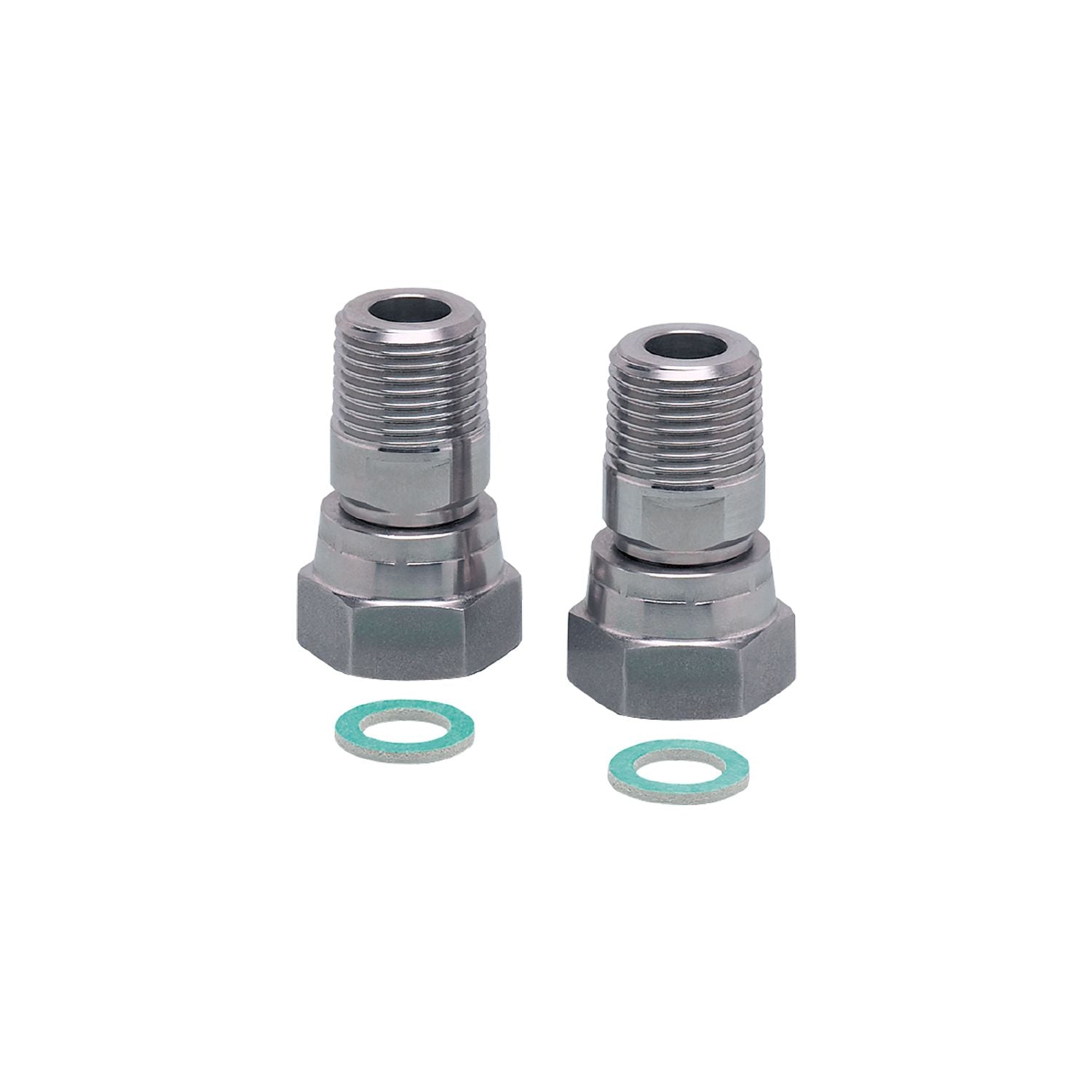

IFM E40199 - Mounting adapter for flow sensors REDADAPT G1/2"-R1/2"

For the installation of flow sensors in pipes.
Easy, quick and secure mounting.
Suitable for magnetic-inductive sensors.
Requested sealings supplied with the unit.
Robust design for use in harsh industrial environments

Design	for flow sensors SM6

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	251
Materials	Adapter: stainless steel (1.4571/316Ti ); Gasket: Centellen 18,5 x 12 x 3 mm
Sensor connection	G 1/2
Process connection	threaded connection R 1/2
Sealing	flat seal

Accessories

Items supplied	O-rings: 2

Pack quantity	2 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40199-00 — 03.12.2007 —
