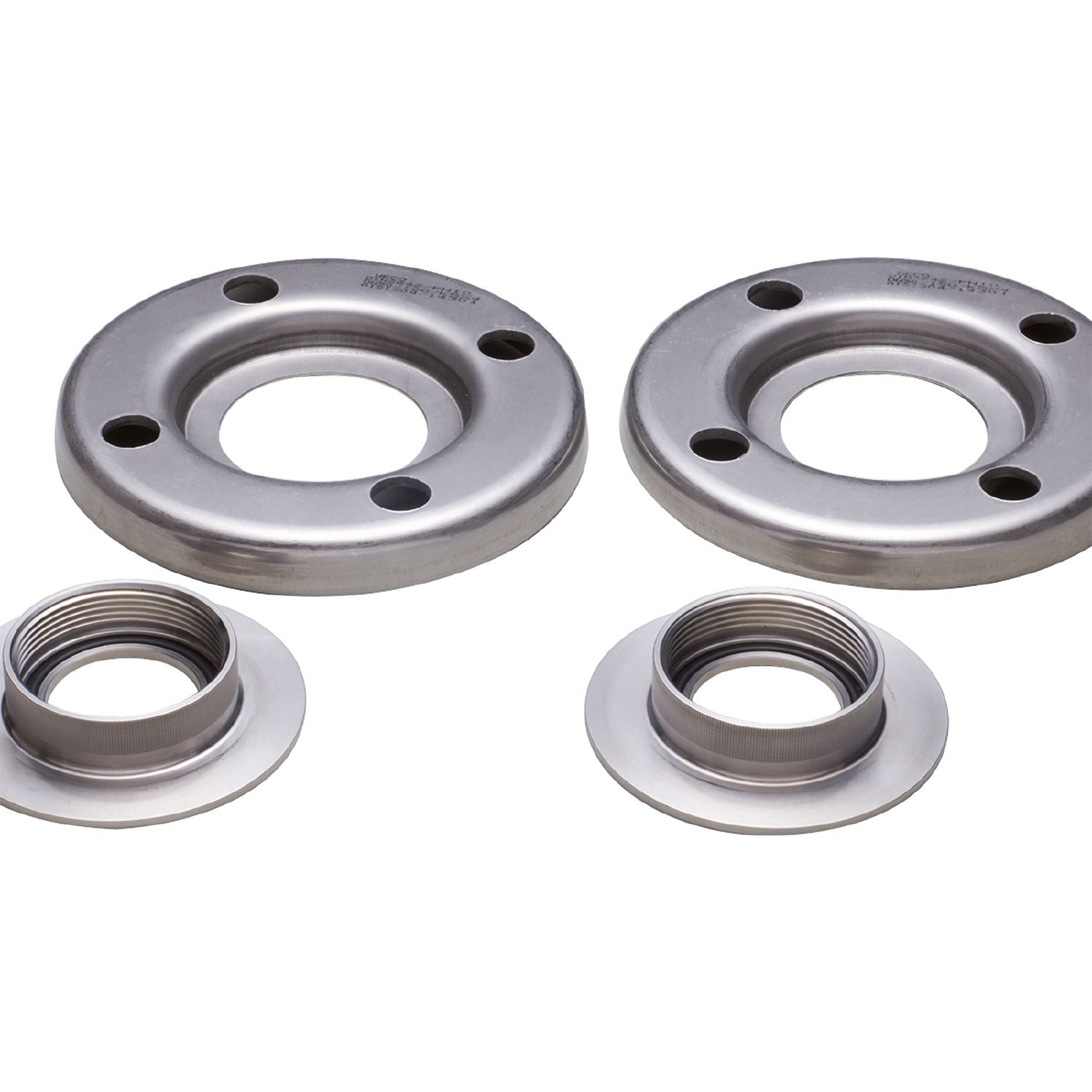

IFM E40240 - Mounting adapter for flow sensors ADAPT G2 FLANGE ADJUSTABLE

For the installation of magnetic-inductive flow sensors in pipes.
Easy, quick and secure mounting.
High permissible overload pressure rating.
Requested sealings supplied with the unit.
Robust stainless steel design for use in harsh industrial environments

Design	for flow sensors Typ SM2, SM9
Installation	SM2 SM9
Pressure rating [bar]	16

Weight [g]	2255.5
Type of mounting	Adapter;(rotatable)
Materials	flange: stainless steel (1.4301 / 304); Adapter: stainless steel (1.4571/316Ti ); O-ring: EPDM 47,22 x 3,53 mm
Sensor connection	G 2
Process connection	flange DN50 according to DIN2642 / EN1092-1 type 2

Accessories

Items supplied	O-rings: 2

Pack quantity	2 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40240-00 — 21.11.2013 —
