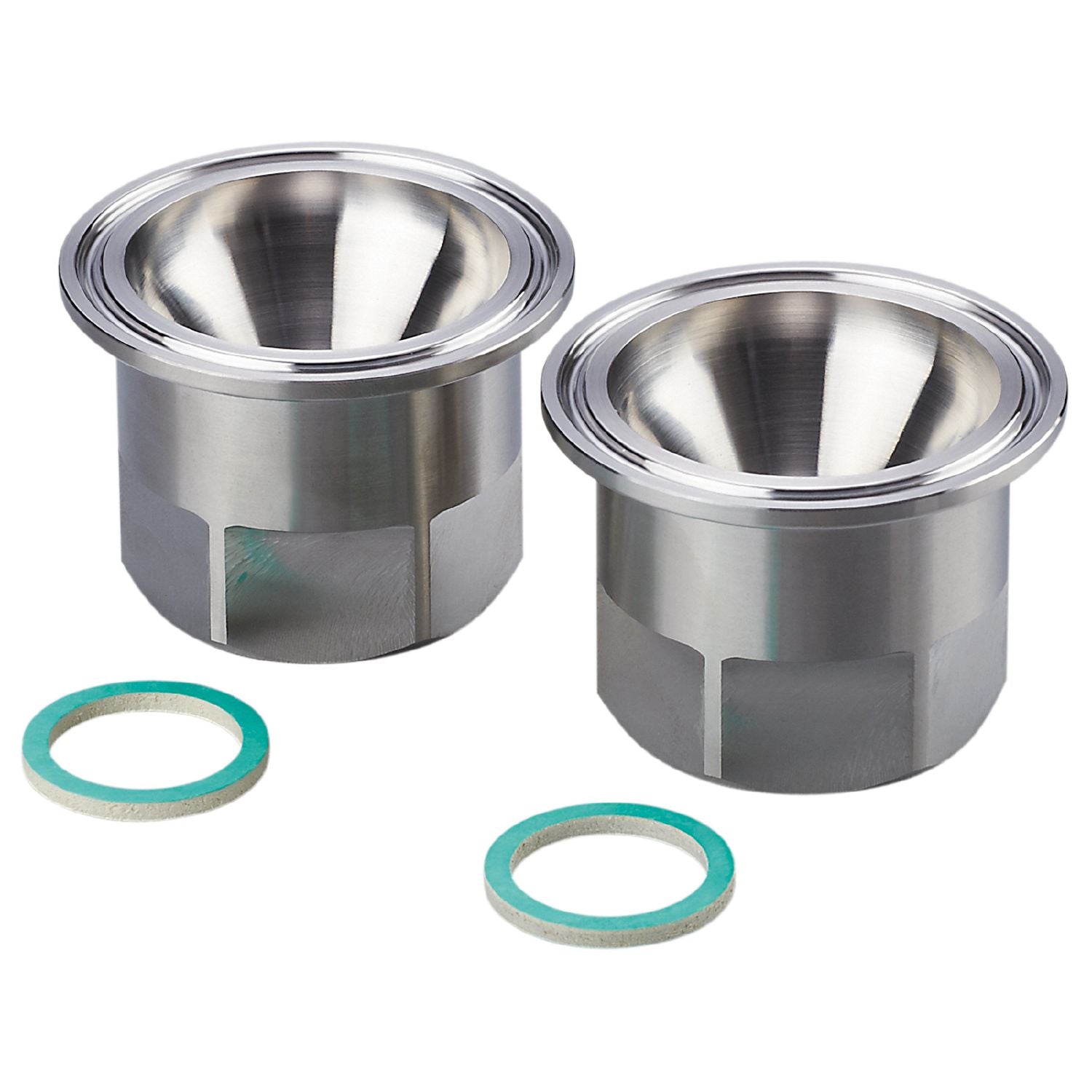

IFM E40252 - Mounting adapter for flow sensors ADAPT G1-CLAMP/D64,0/DIN32676

For the installation of process sensors in containers and pipes.
Easy, quick and secure mounting.
Particularly suited for use in hygienic applications.
Stainless steel adapter for the requirements of the food and beverage industry.
High pressure rating

Design	for flow sensors Typ SM8
Application	for industrial applications; hygienic systems
Media	Liquids
Pressure rating [bar]	16

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	834.5
Materials	Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 23,5 x 30 x 3 mm
Sensor connection	G 1
Process connection	Clamp DN50 (2") DIN 32676 (ISO 2852)

Accessories

Items supplied	O-rings: 2

Pack quantity	2 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40252-00 — 23.04.2015 —
