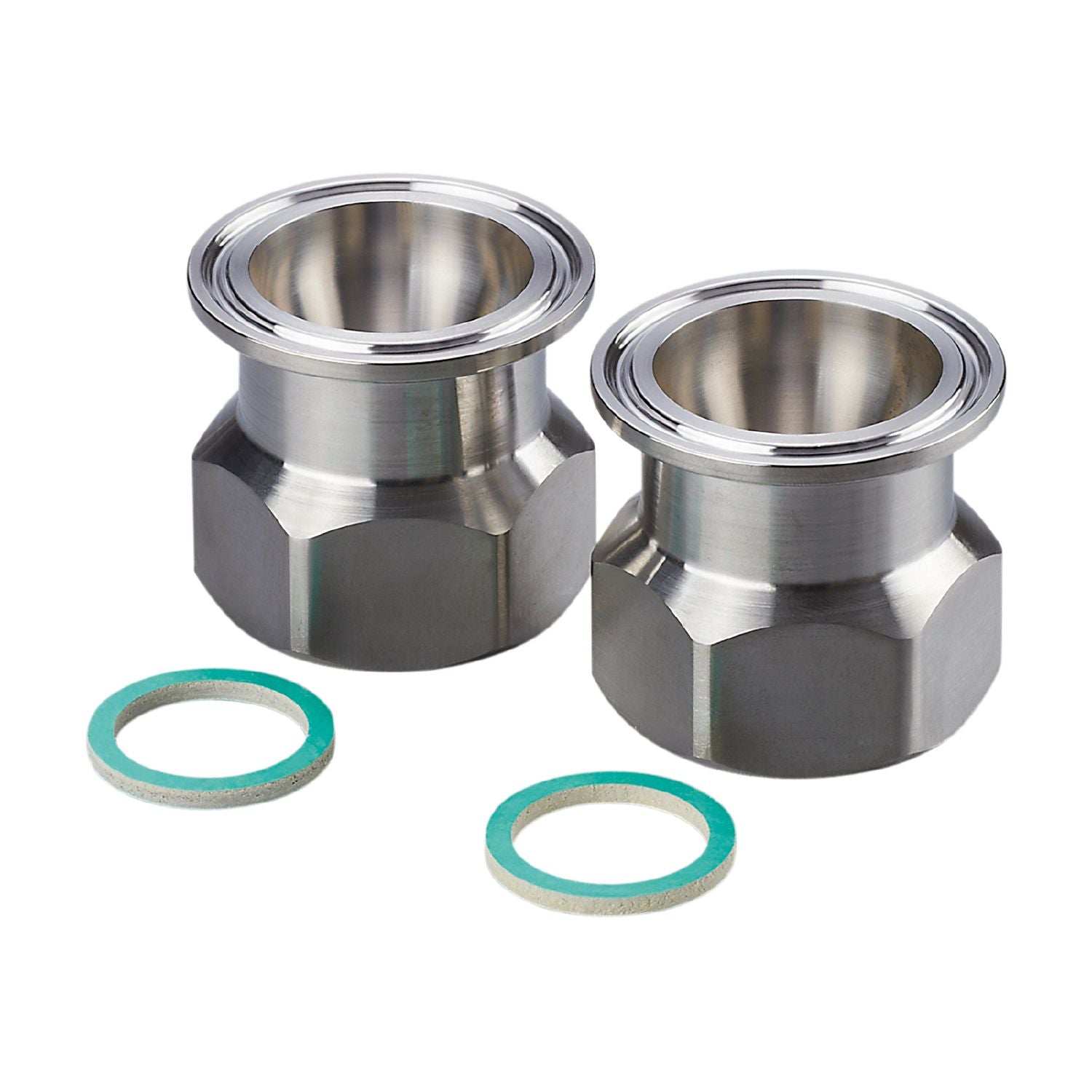

IFM E40253 - Mounting adapter for flow sensors ADAPT G1-CLAMP/D50,5/DIN32676

For the installation of process sensors in containers and pipes.
Easy, quick and secure mounting.
High pressure rating

Design	for flow sensors, Typ SM8, Typ SU8
Application	for industrial applications; hygienic systems
Media	Liquids
Pressure rating [bar]	16

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	662.5
Materials	Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 23,5 x 30 x 3 mm
Sensor connection	G 1
Process connection	Clamp DN40 (1,5") DIN 32676 (ISO 2852)

Accessories

Items supplied	O-rings: 2

Pack quantity	2 pcs.
