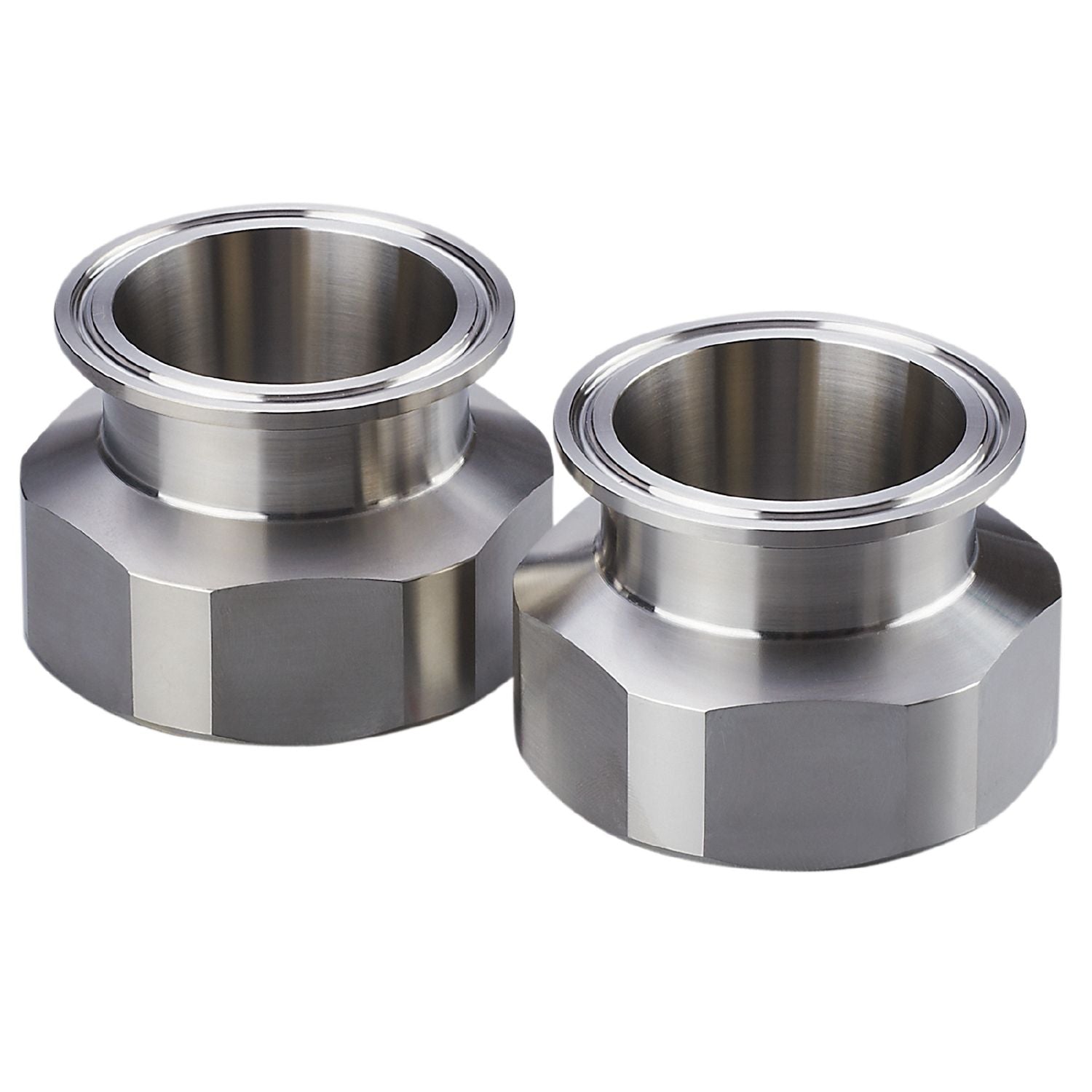

IFM E40254 - Mounting adapter for flow sensors ADAPT G2-CLAMP/D64,0/DIN32676

For the installation of magnetic-inductive flow sensors in pipes.
Easy, quick and secure mounting.
High permissible overload pressure rating.
Requested sealings supplied with the unit.
Robust stainless steel design for use in harsh industrial environments

Design	for flow sensors Typ SM2, SM9
Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	16

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	1040
Materials	Adapter: stainless steel (1.4404 / 316L); O-ring: FKM 47,22 x 3,53 mm
Sensor connection	G 2
Process connection	Clamp DN50 (2") DIN 32676 (ISO 2852)

Accessories

Items supplied	O-rings: 2

Pack quantity	2 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40254-00 — 23.04.2015 —
