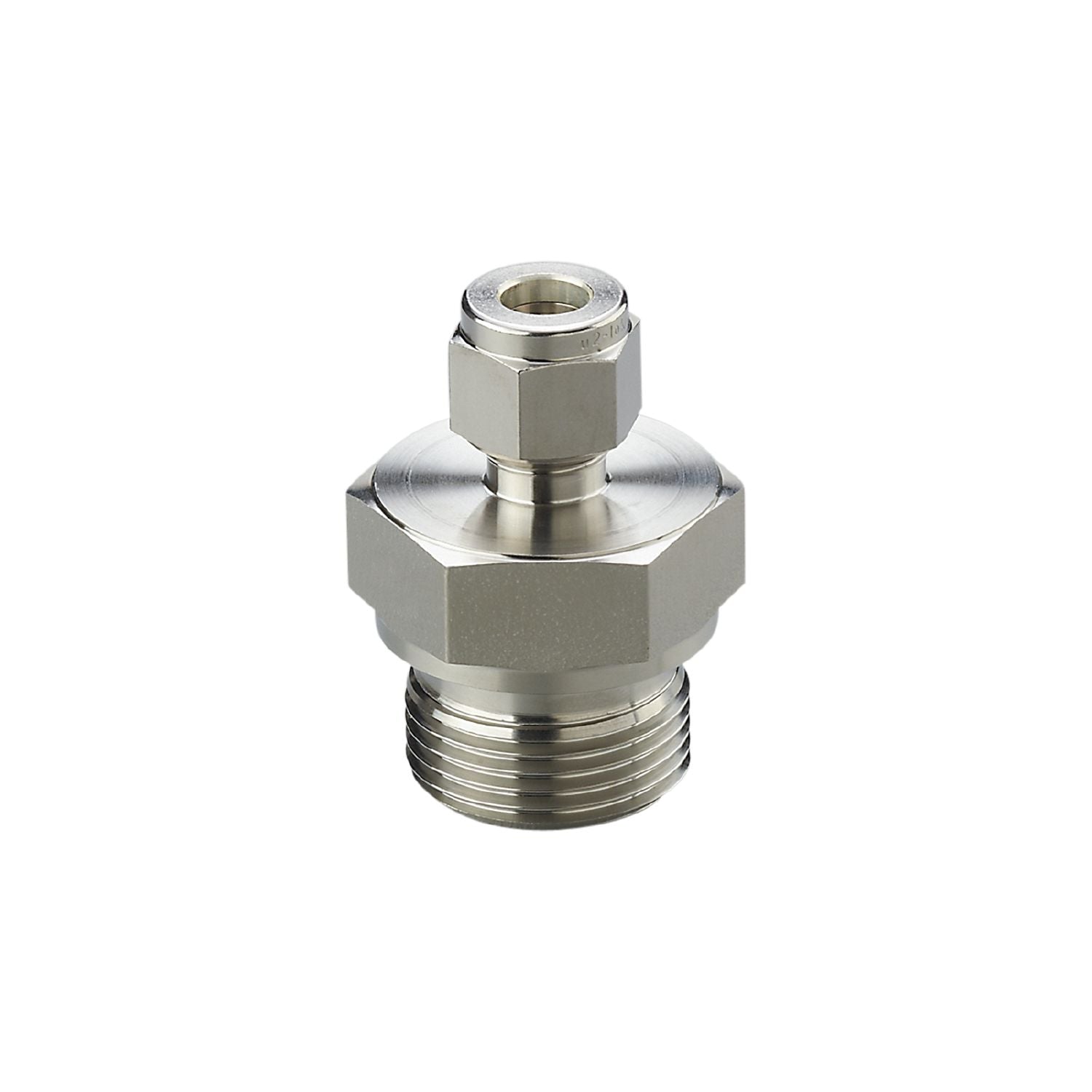

IFM E40268 - Progressive ring fitting COMPRESSION FITTING G3/4 METALLIC SEALIN

For a quick and easy mounting of temperature sensors.
User-friendly setting of the requested immersion depth of the sensor.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating

Installation	Progressive ring fitting

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	161
Materials	stainless steel (1.4404 / 316L)
Sensor connection	Ø 8 mm
Process connection	threaded connection G 3/4

Pack quantity	1 pcs.
