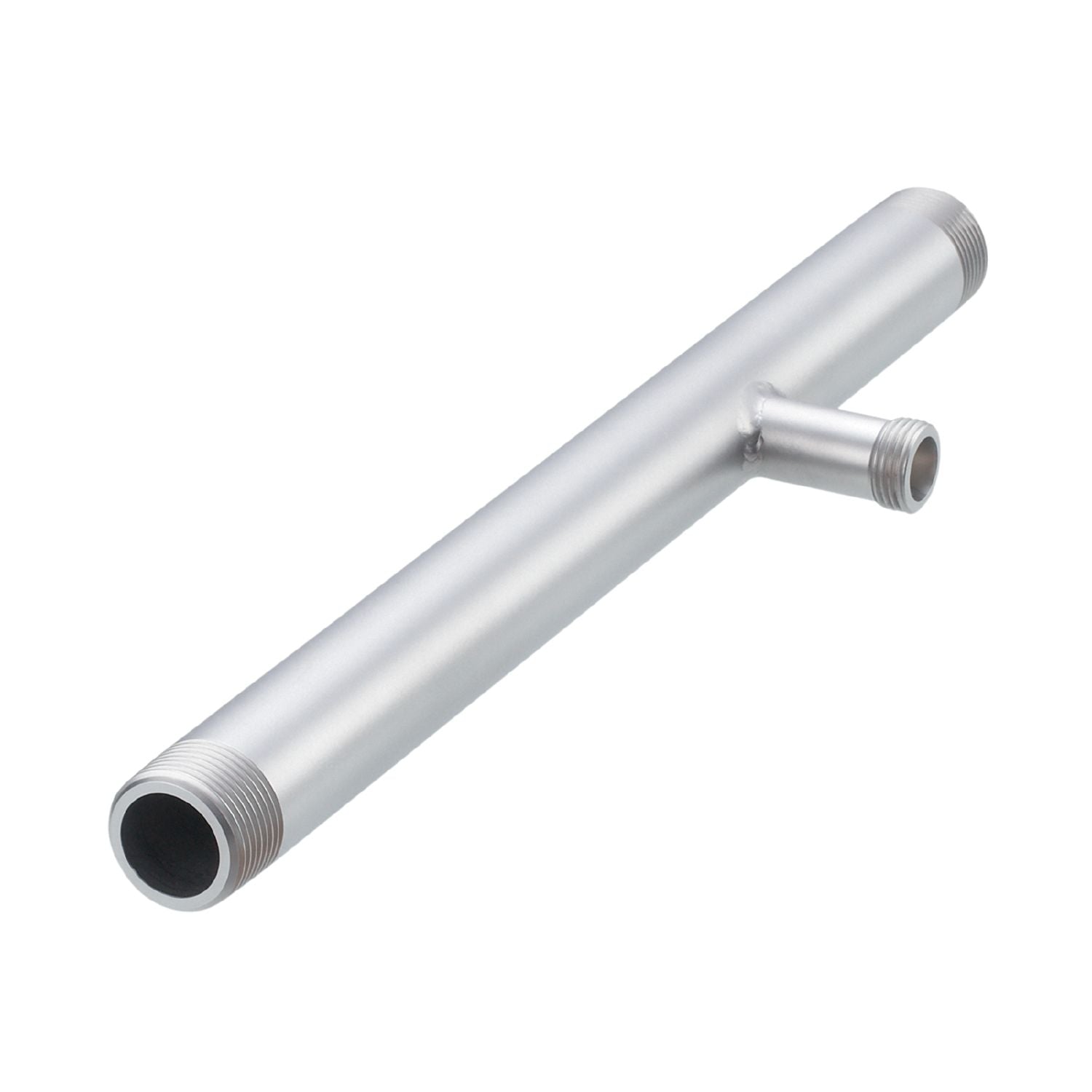

IFM E40278 - T-piece T-PIECE R3/4-M18x1,5-R3/4

Safe installation of process sensors in pipes.
For use in industrial environments.
Adapter for ensuring the correct immersion depth.
Robust stainless steel housing

Design	for sensors and adapters with process connection M18 x 1,5
Flow range [l/min]	0...20
Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	30

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	756.6
Materials	stainless steel (1.4571/316Ti )
Sensor connection	M18 x 1,5
Process connection	threaded connection R 3/4

Pack quantity	1 pcs.
