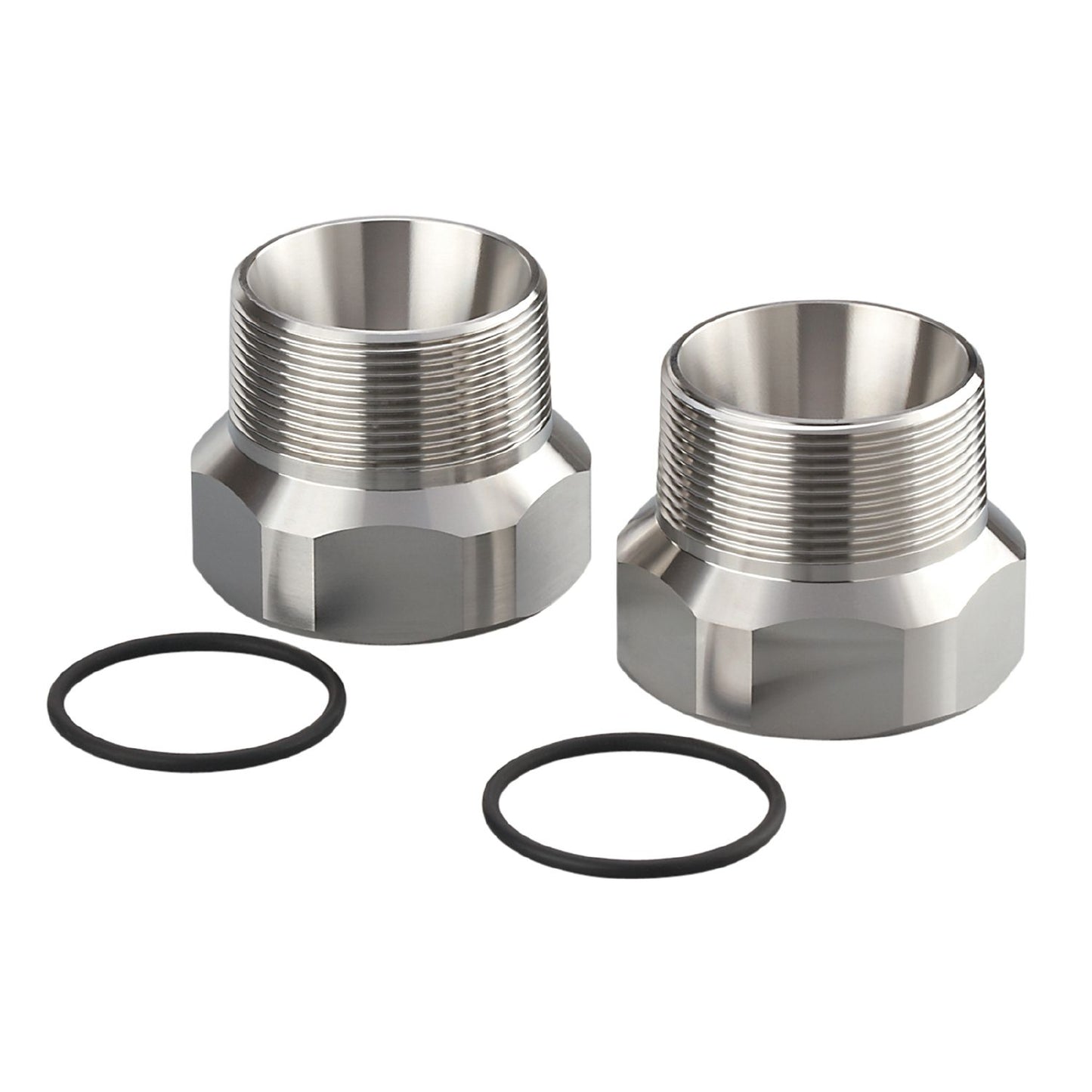

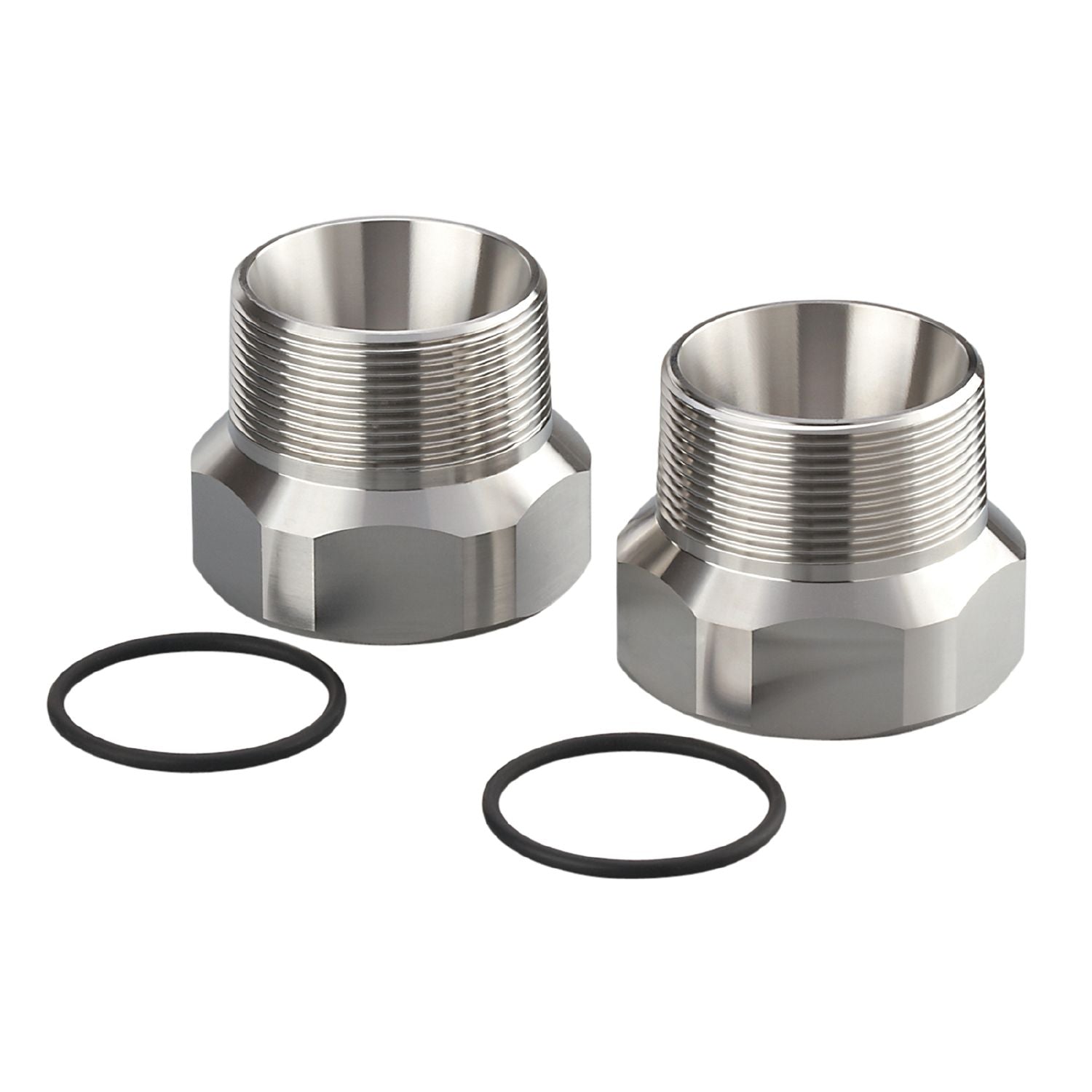

IFM E40433 - Mounting adapter for flow sensors ADAPT /SM/1/G2 - R2

For the installation of flow sensors in pipes.
Easy, quick and secure mounting.
High permissible overload pressure rating.
Requested sealings supplied with the unit.
Robust stainless steel design for use in harsh industrial environments

Design	for flow sensors Typ SM2, SM9
Pressure rating [bar]	16

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	1341
Materials	Adapter: stainless steel (1.4571/316Ti ); O-ring: EPDM 47,22 x 3,53 mm
Sensor connection	G 2
Process connection	threaded connection R 2 external thread

Accessories

Items supplied	O-rings: 2

Pack quantity	2 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40433-00 — 07.12.2015 —
