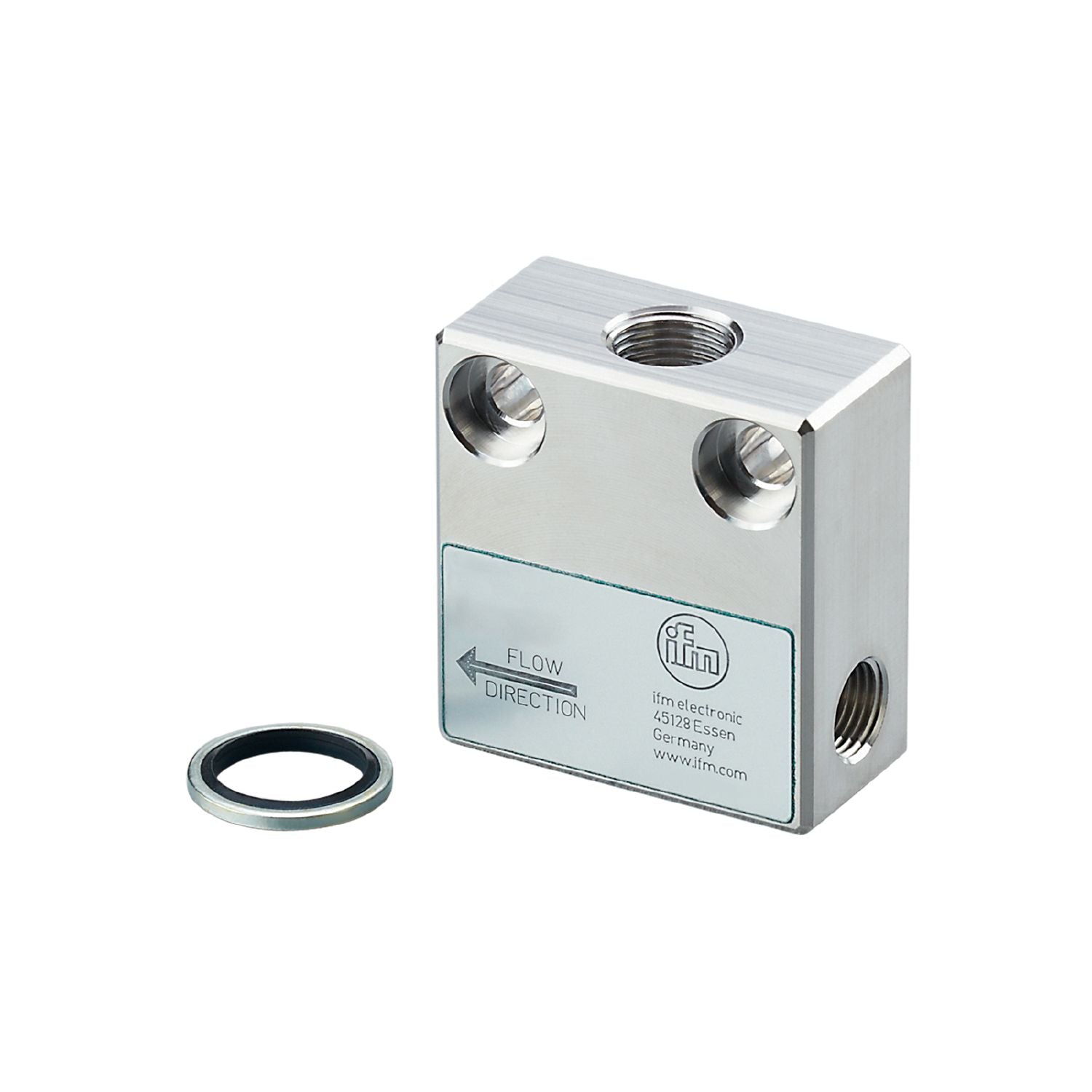

IFM E40434 - Process adapter for small volumetric flow quantities FLOW ADAPT

Reliable detection of small flow rates.
Easy installation of the flow sensor via adapter.
Very high pressure rating.
Robust stainless steel design for use in harsh industrial environments.
Suitable for liquids and gases

Application	for industrial applications
Installation	via internal G1/8A male thread, any mounting position;(SA5)
Medium temperature [°C]	0...80
Pressure rating [bar]	100

Measuring/setting range

Flow range [ml/min]	2...150

Weight [g]	212.7
Materials	stainless steel (1.4404 / 316L)
Sensor connection	M12 x 1
Process connection	G 1/8

Accessories

Items supplied	sealings: 1, U-seal
Accessories (optional)	Adapter: ≤ 30 bar, E40101 Adapter: ≤ 300 bar, E40236

Remarks	Can only be used in combination with the flow sensor’s relative operating mode.
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40434-00 — 25.10.2016 —
