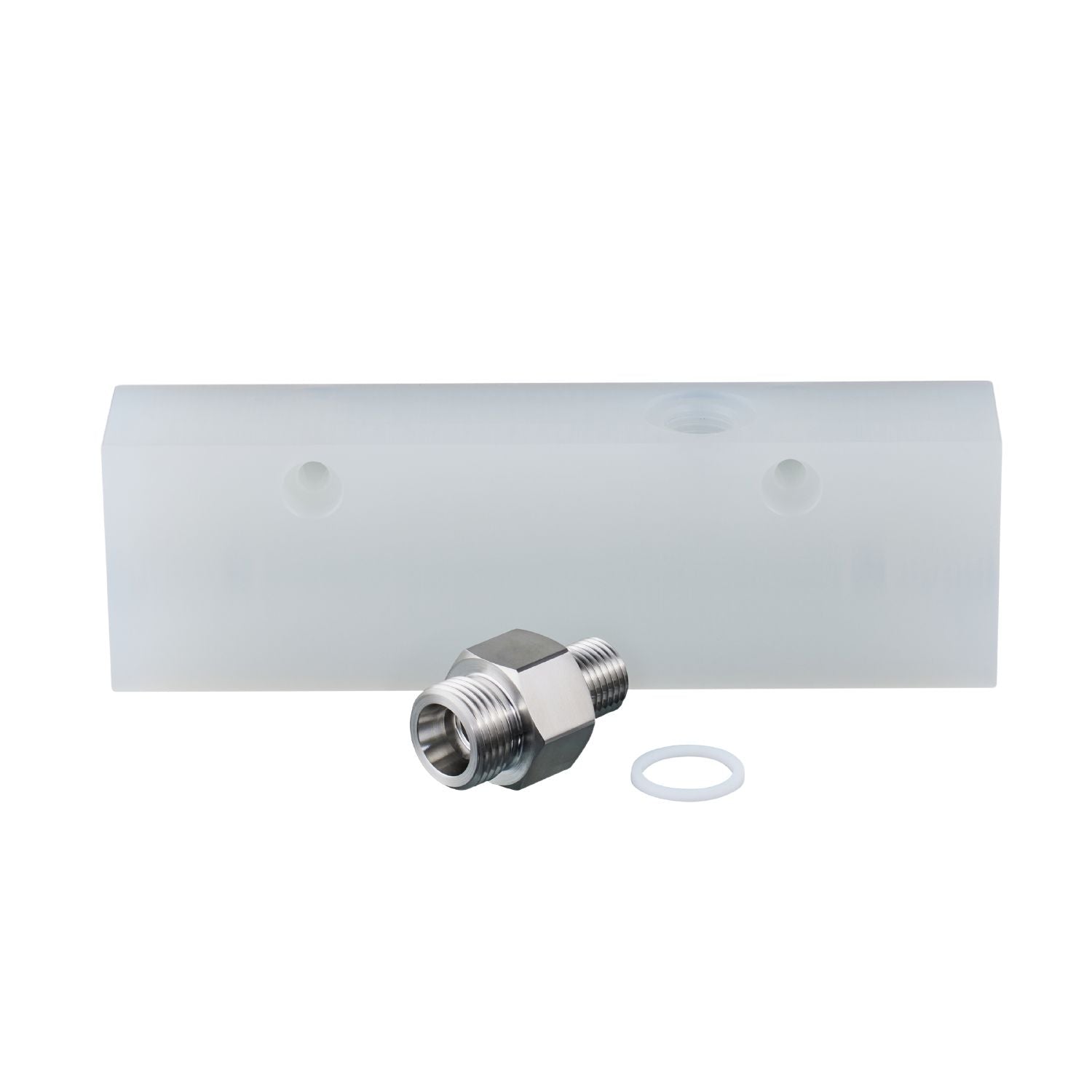

IFM E40461 - Process adapter for small volumetric flow quantities ADAPTBLOCK D16 G1/2 PP

Reliable detection of small flow rates.
Easy installation of the flow sensor via adapter.
High pressure rating.
Robust design for use in aggressive media.
Suitable for liquids and gases

Design	for flow sensors SID, SF5
Flow range [l/min]	0.5...5;((SI1xxx); 0.5...7 (SI5xxx); factory setting with water)
Application	for industrial applications
Media	liquids and gases
Medium temperature [°C]	-25...60
Pressure rating [bar]	16

Weight [g]	305.1
Materials	PP-H
Sensor connection	M18 x 1,5
Process connection	G 1/2

Accessories

Items supplied	Adapter: 1 x G1/4 BSPP, E40176 sealings: 1, PTFE

Remarks	Can only be used in combination with the flow sensor’s relative operating mode.
Pack quantity	1 pcs.
