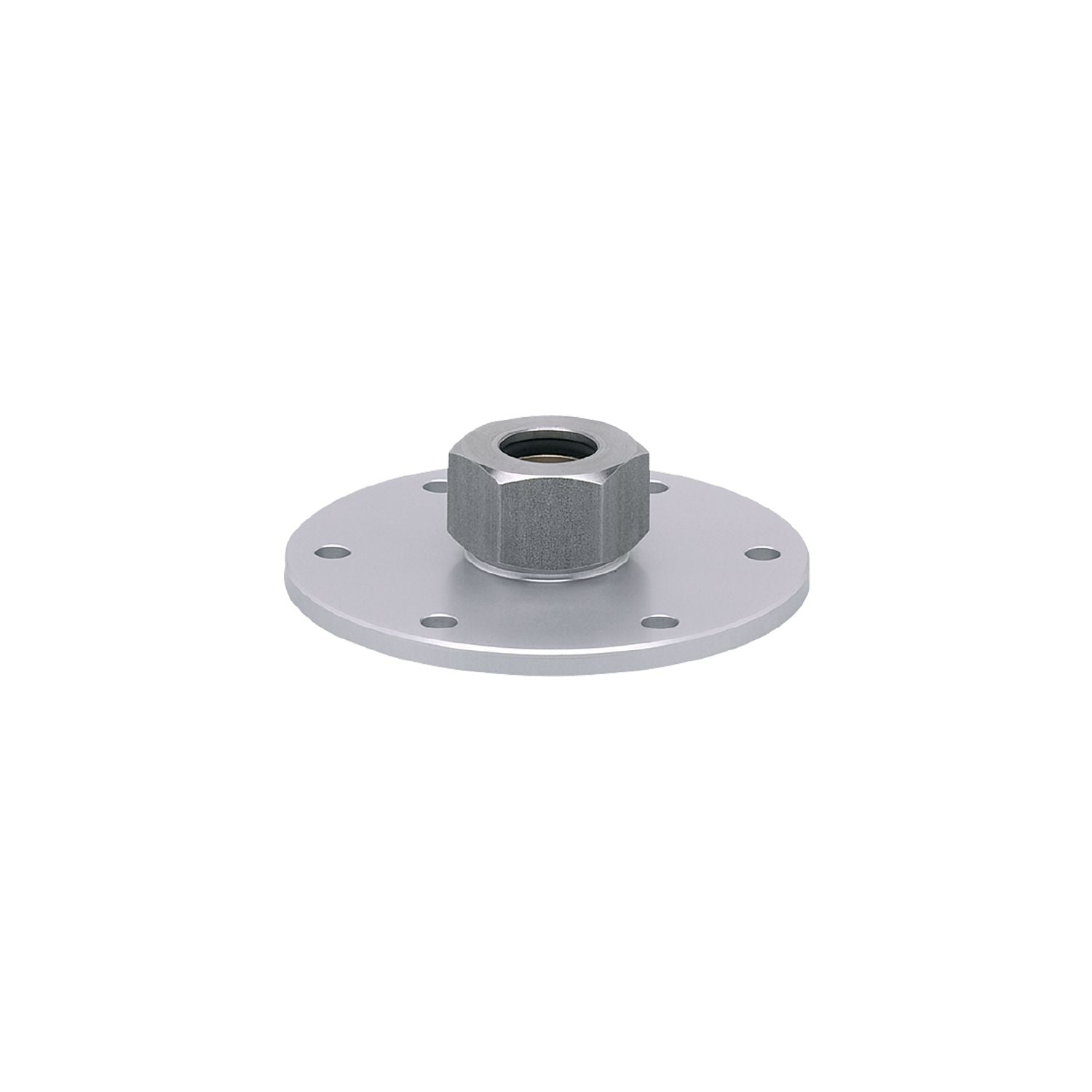

IFM E43001 - Flange plate for level sensors FLANGE PLATE 73-90 D16

Optional for the operation of capacitive level sensors.
Easy, quick and inexpensive mounting in the tank lid.
User-friendly setting of the requested immersion depth of the sensor.
Stable fixing of the sensor by clamp fitting

Design	for capacitive level sensors LK, LI, LT, LL
Installation	according to DIN 24557
Pressure rating [bar]	0.5

Operating conditions

Ambient temperature [°C]	0...80

Weight [g]	183
Type of mounting	according to DIN 24557
Materials	aluminium anodised; Lock nut: stainless steel; spacer: brass; clamping ring: FKM; Sealing: NBR
Tightening torque [Nm]	6...9
Sensor connection	clamp adapter Ø 16 mm
Process connection	flange

Pack quantity	1 pcs.
