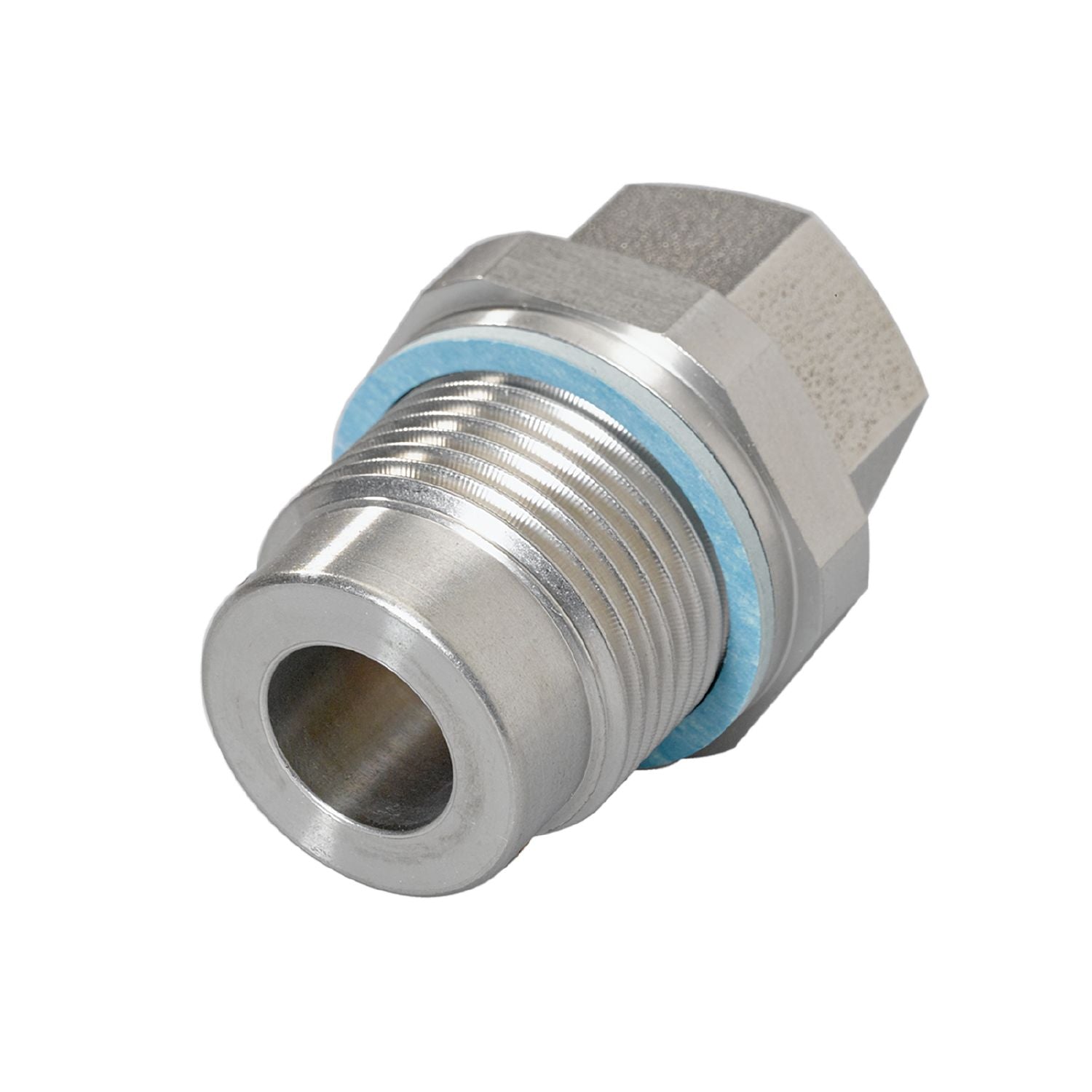

IFM E43004 - Clamp fitting for process sensors MOUNTING ADAPTER G1

For the installation of capacitive level sensors in containers.
Easy, quick and secure mounting.
User-friendly setting of the requested immersion depth of the sensor.
Robust stainless steel design for use in harsh industrial environments

Design	for capacitive level sensors LK, LI, LT, LL
Installation	Clamp fitting
Pressure rating [bar]	0.5

Operating conditions

Ambient temperature [°C]	0...80

Weight [g]	335
Dimensions [mm]	Ø 39 / L = 57
Materials	flange: stainless steel; Lock nut: stainless steel; spacer: brass; clamping ring: FKM; Sealing: Tesnit
Tightening torque [Nm]	6...9
Sensor connection	Ø 16 mm
Process connection	threaded connection G 1 external thread

Pack quantity	1 pcs.
