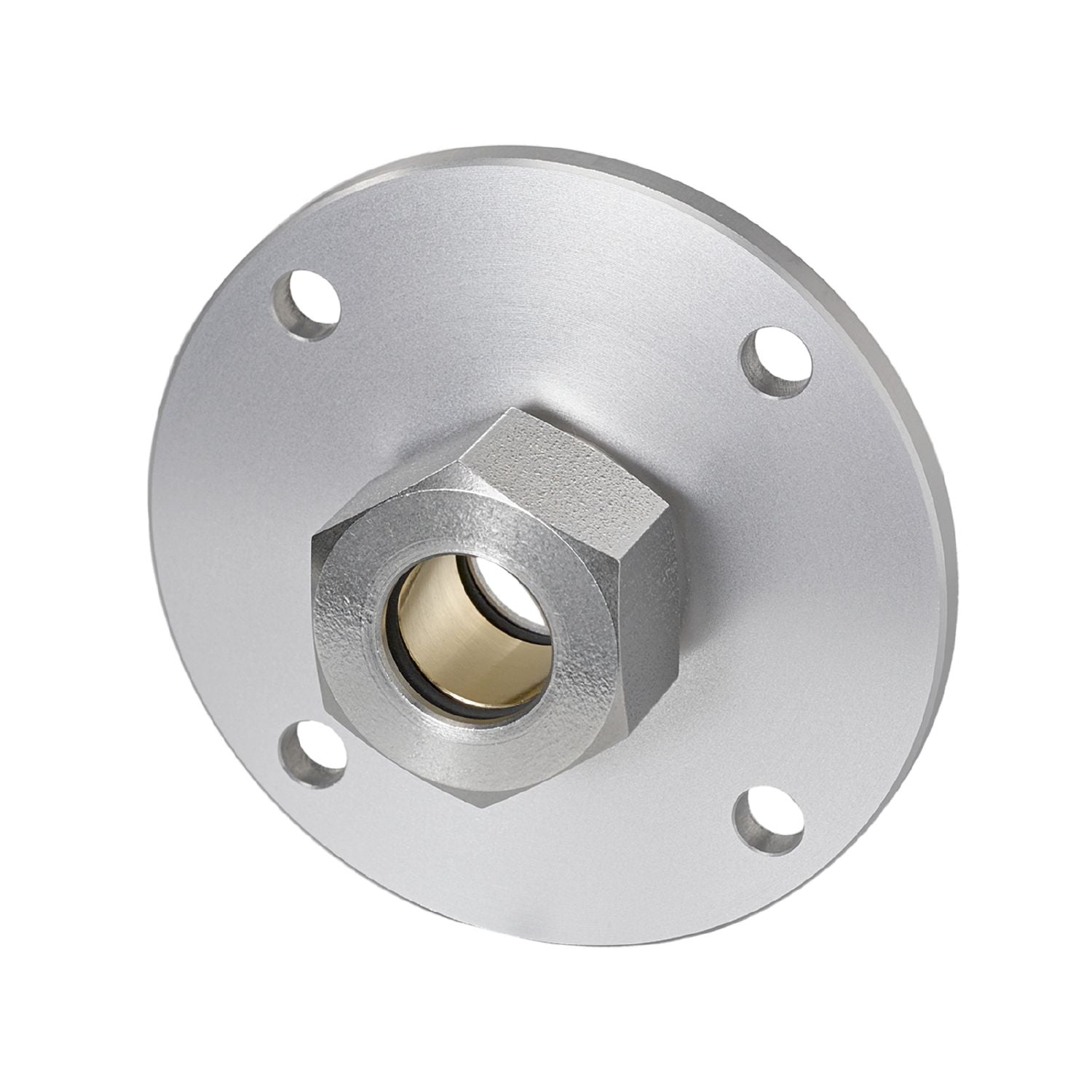

IFM E43005 - Flange plate for level sensors FLANGE PLATE 100-125 D16

Optional for the operation of capacitive level sensors.
Easy, quick and inexpensive mounting in the tank lid.
User-friendly setting of the requested immersion depth of the sensor.
Stable fixing of the sensor by clamp fitting

Design	for capacitive level sensors LK, LI, LT, LL
Pressure rating [bar]	0.5

Operating conditions

Ambient temperature [°C]	0...80

Weight [g]	252
Materials	flange: aluminium anodised; Lock nut: stainless steel; spacer: brass; clamping ring: FKM
Tightening torque [Nm]	6...9
Sensor connection	clamp adapter Ø 16 mm
Process connection	flange

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43005-00 — 14.11.2012 —
