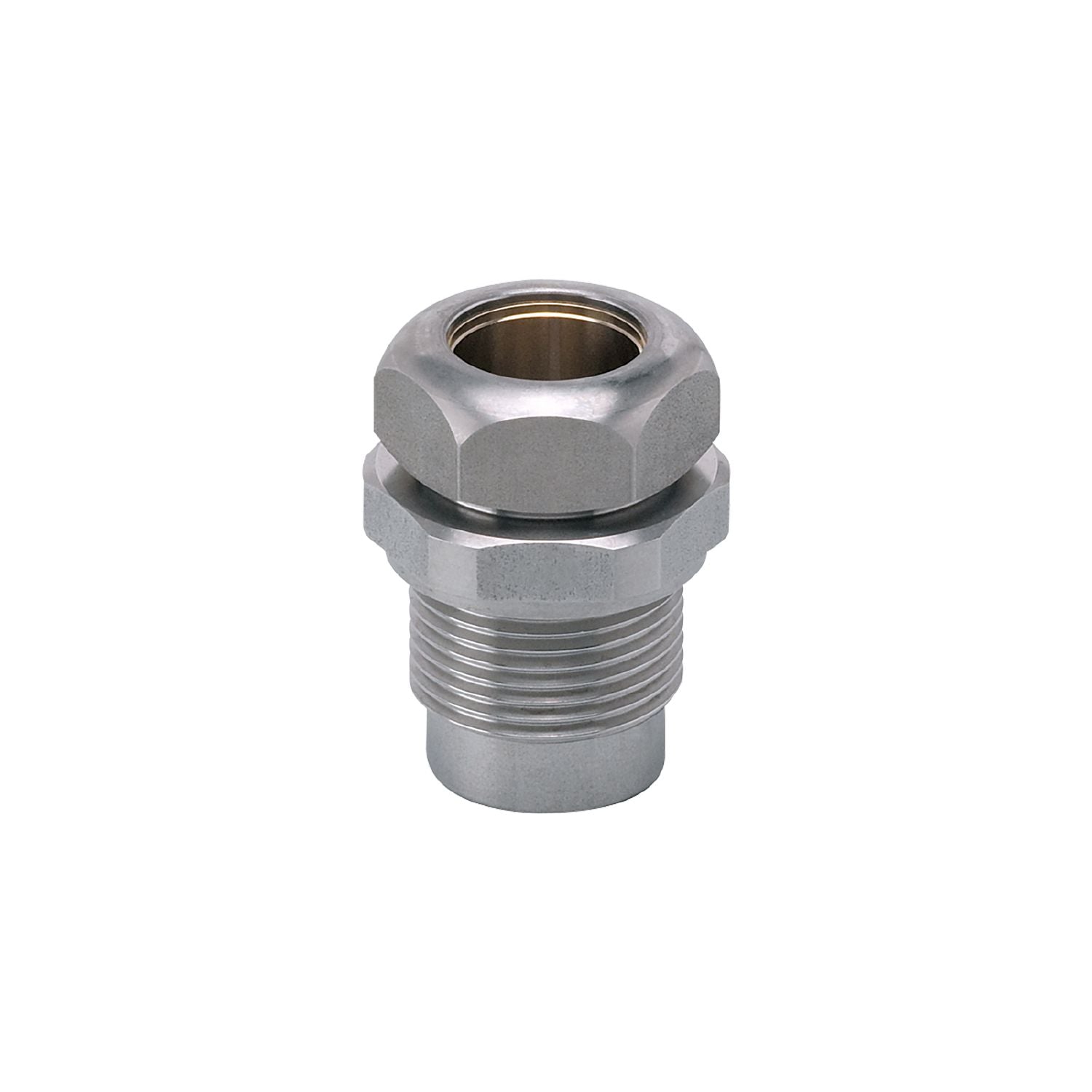

IFM E43009 - Clamp fitting for process sensors MOUNTING ADAPTER G1/D22

For the installation of capacitive level sensors with climatic tube in containers.
Easy, quick and secure mounting.
User-friendly setting of the requested immersion depth of the sensor.
Robust stainless steel design for use in harsh industrial environments

Design	for climatic tube LK, LI
Installation	Clamp fitting
Pressure rating [bar]	0.5

Operating conditions

Ambient temperature [°C]	0...80

Weight [g]	256
Dimensions [mm]	Ø 39 / L = 55
Materials	stainless steel; NBR; Tesnit; brass
Tightening torque [Nm]	6...8
Sensor connection	Ø 22 mm
Process connection	threaded connection G 1 external thread

Pack quantity	1 pcs.
