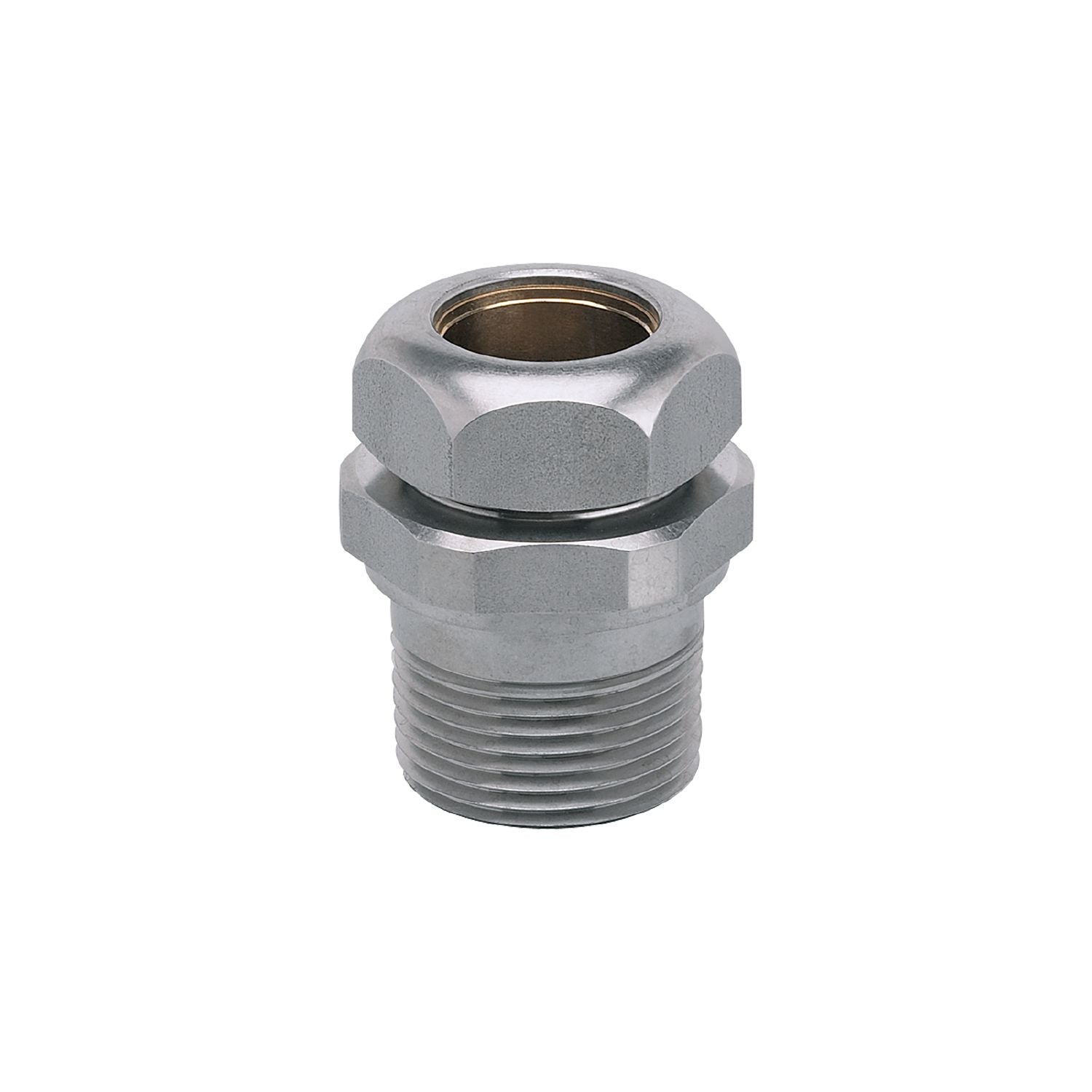

IFM E43015 - Clamp fitting for process sensors MOUNTING ADAPTER NPT1/D22

For the installation of capacitive level sensors with climatic tube in containers.
Easy, quick and secure mounting.
User-friendly setting of the requested immersion depth of the sensor.
Robust stainless steel design for use in harsh industrial environments

Design	for climatic tube LK, LI
Installation	Clamp fitting
Pressure rating [bar]	0.5

Operating conditions

Ambient temperature [°C]	0...80

Weight [g]	258.5
Materials	stainless steel; NBR; brass
Tightening torque [Nm]	6...8
Sensor connection	Ø 22 mm
Process connection	threaded connection 1" NPT

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43015-00 — 14.11.2012 —
