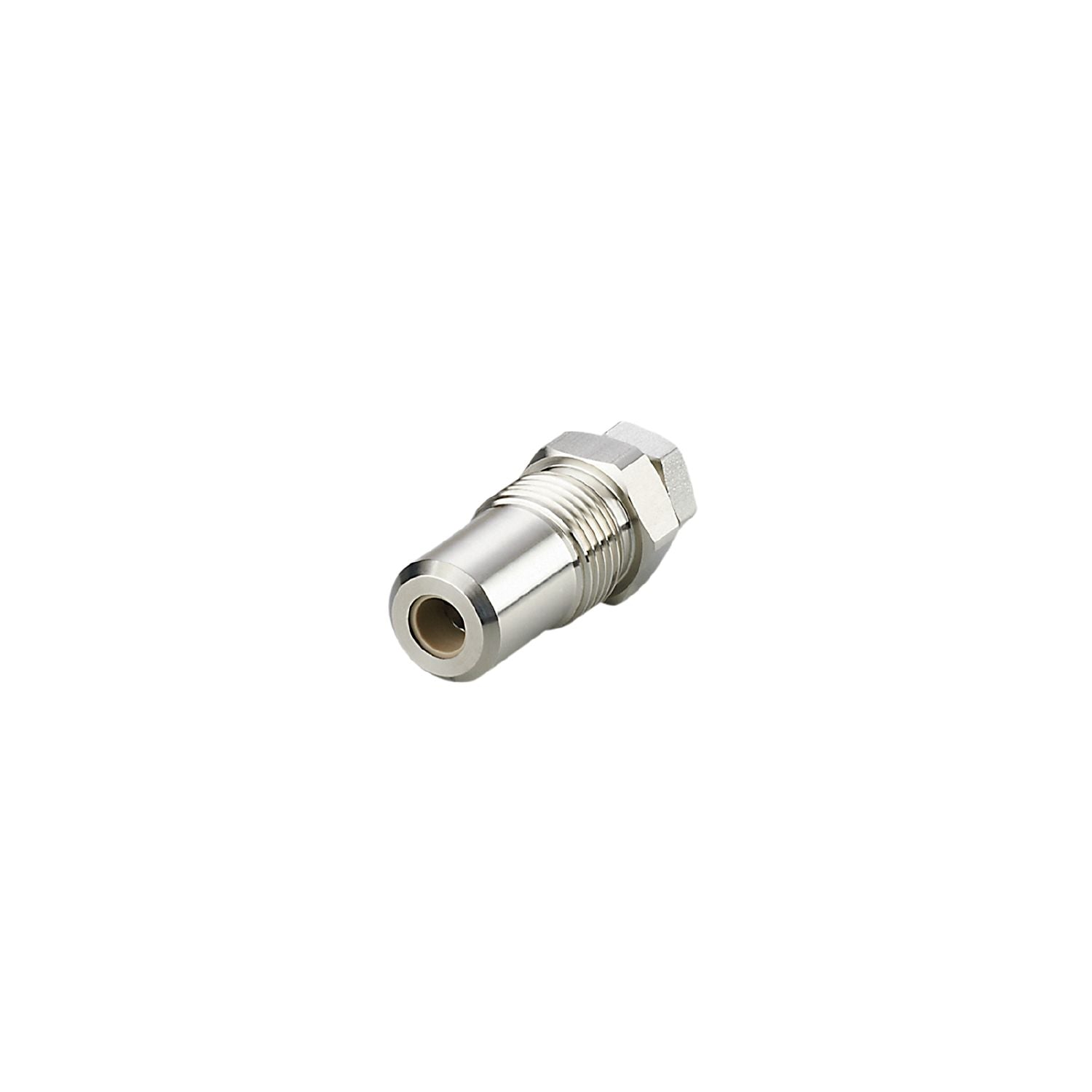

IFM E43020 - Clamp fitting for process sensors G 1/2" COMPRESSION FITTING 8MM

For the installation of flow and temperature sensors in containers and pipes.
Easy, quick and secure mounting.
Easy adjustment of the immersion depth of the sensor.
Stainless steel adapter for the requirements of the food and beverage industry

Application	hygienic systems
Installation	Clamp fitting
Media	viscous media and liquids with suspended particles
Pressure rating [bar]	10
No dead space	yes

Operating conditions

Ambient temperature [°C]	-10...150

Weight [g]	100
Materials	stainless steel (1.4404 / 316L); clamping ring: PEEK
Tightening torque [Nm]	< 10;(screw-in adapter; 10 ± 1 Clamp adapter)
Sensor connection	Ø 8 mm
Process connection	threaded connection G 1/2 sealing cone

Pack quantity	1 pcs.
