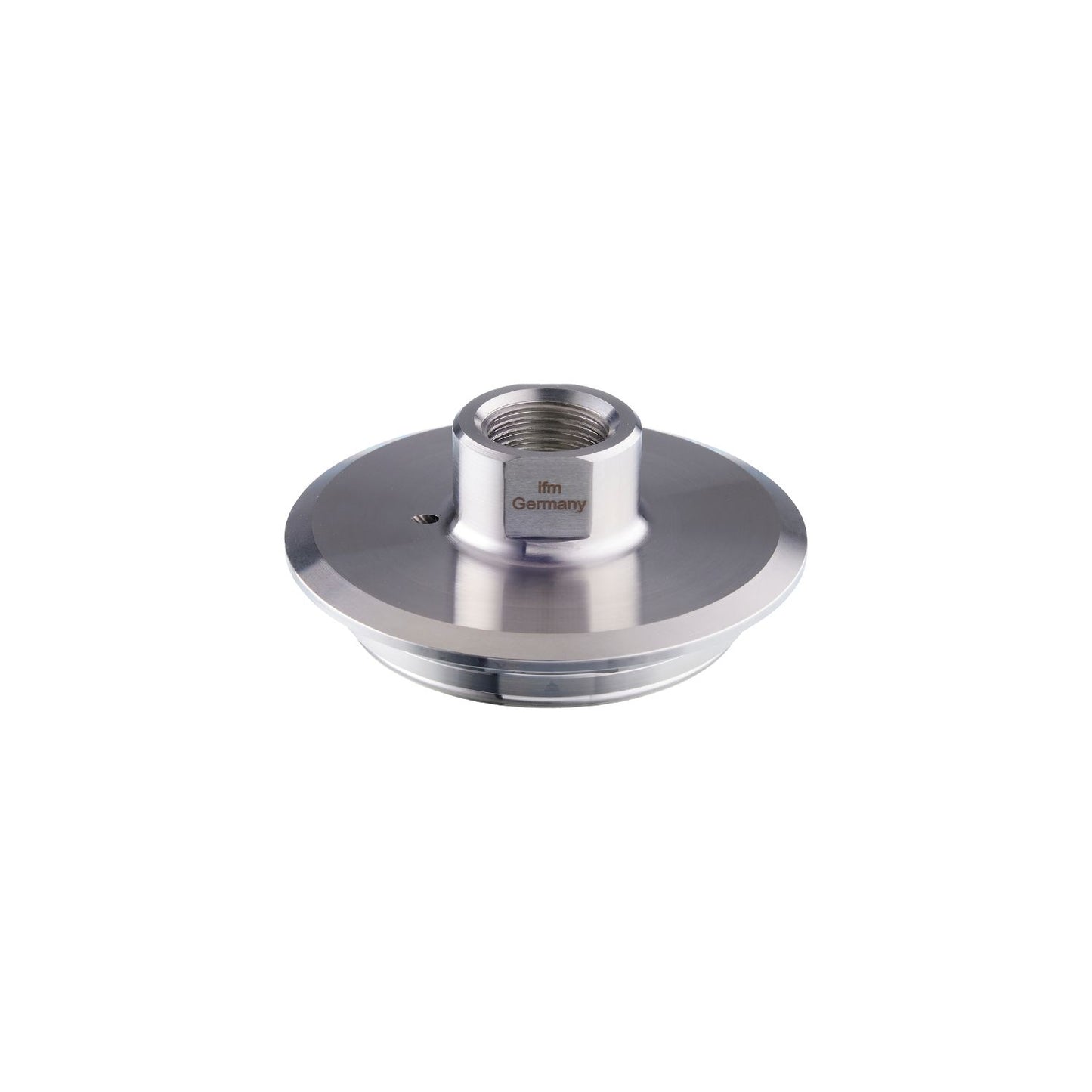

IFM E43035 - Process adapter Varivent ADAPT G1/2-VARIVENT D68 3A

For the installation of process sensors in containers and pipes.
Easy, quick and secure mounting.
Particularly suited for use in hygienic applications.
Stainless steel adapter for the requirements of the food and beverage industry.
High pressure rating

Design	with leakage port
Pressure rating [bar]	25
Note on pressure rating	for the connection sensor - adapter

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	590.8
Materials	stainless steel (1.4435 / 316L); surface characteristics Ra>0,4 / Rz 4
Sensor connection	G 1/2 sealing cone
Process connection	Varivent Form N, DN40...DN150 (1,5...6"), Ø 68 mm
Hygienic equipment class to DIN 11866	H4

Pack quantity	1 pcs.
