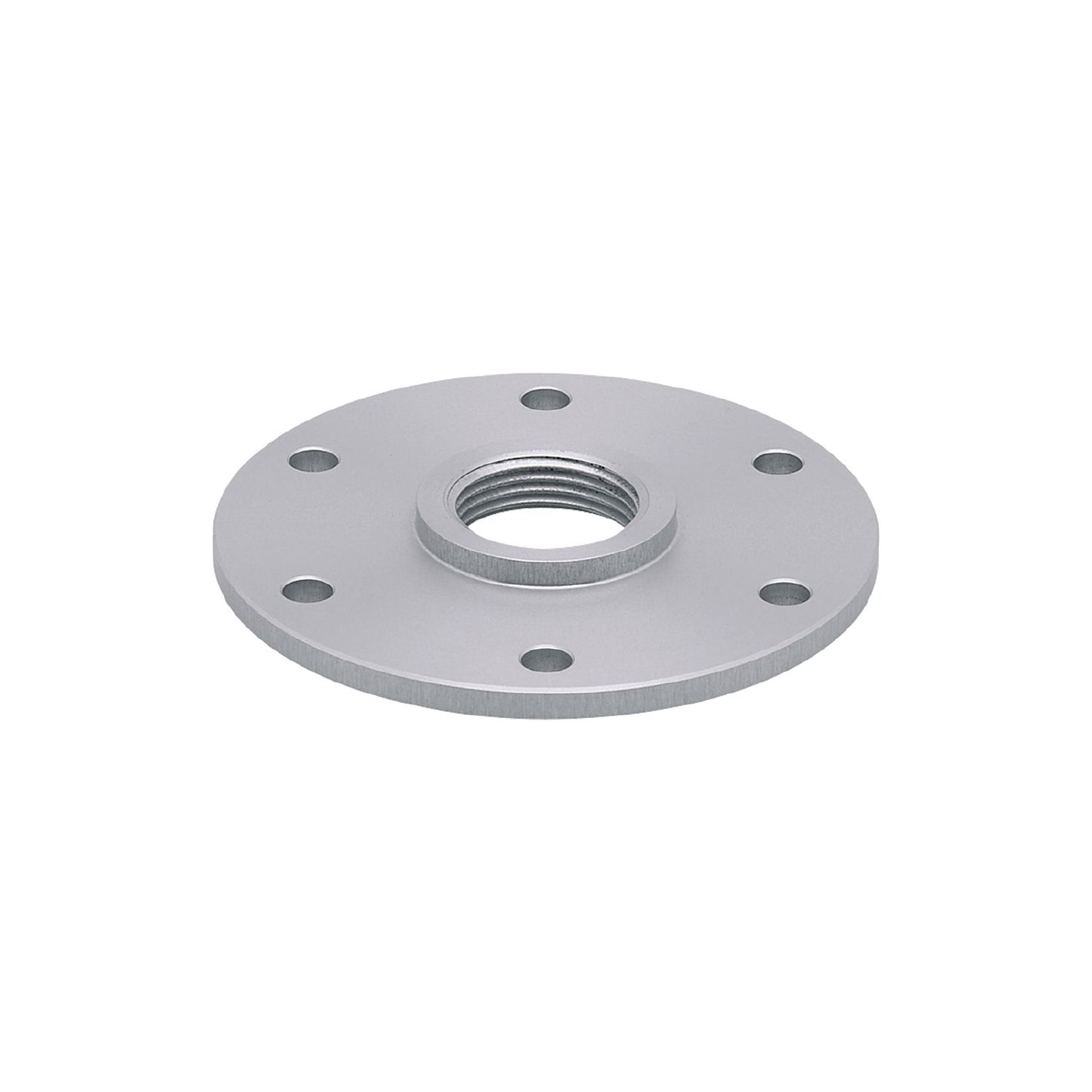

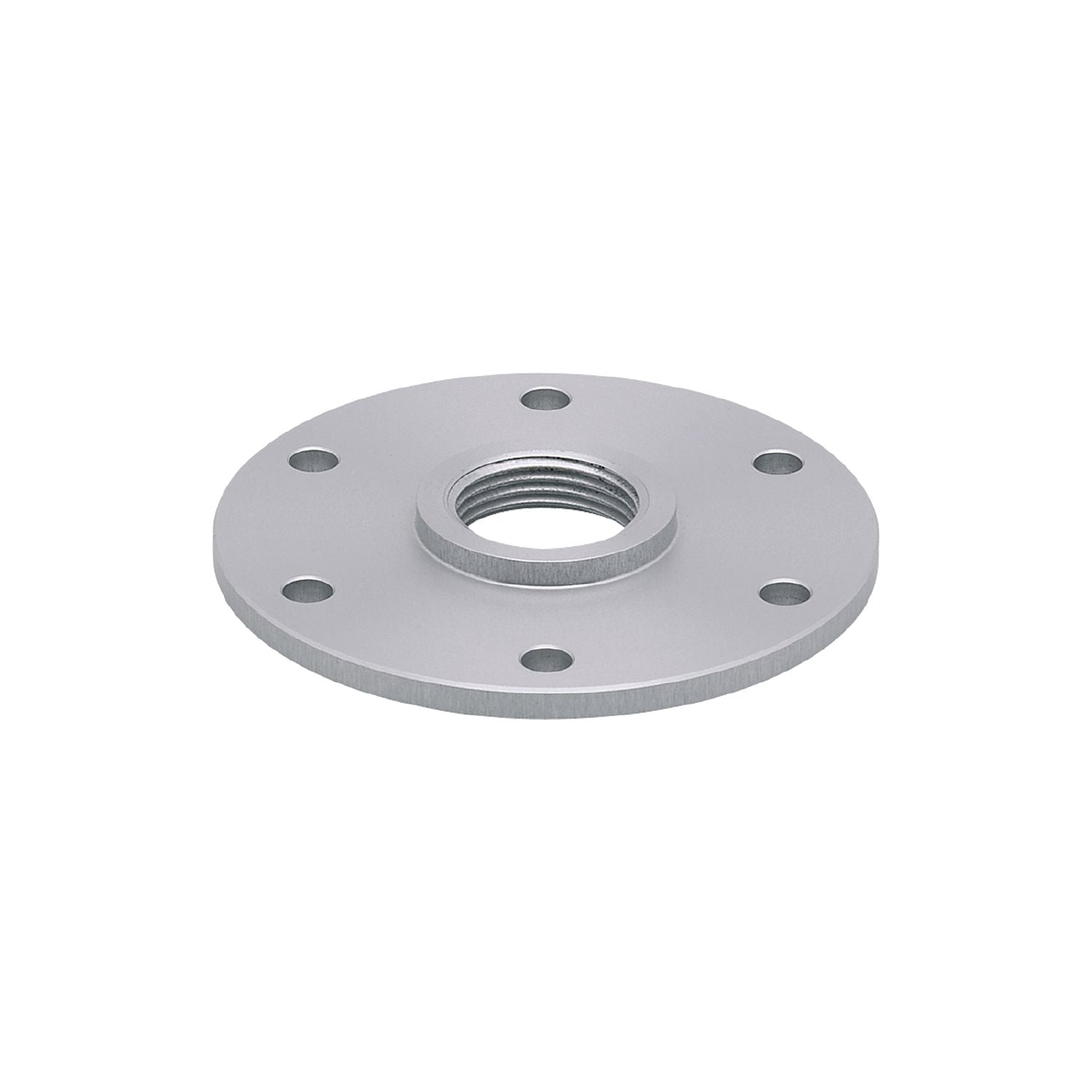

IFM E43201 - Flange plate for level sensors FLANGE PLATE 73-90/G3/4

Optional for the operation of level sensors with guided wave radar.
Easy, quick and inexpensive mounting in the tank lid

Design	for level sensors LR
Installation	according to DIN 24557
Tank pressure [bar]	-1...16

Operating conditions

Ambient temperature [°C]	0...80

Weight [g]	257.3
Type of mounting	according to DIN 24557
Materials	flange: stainless steel (1.4305 / 303); Sealing: NBR
Tightening torque [Nm]	6...9
Sensor connection	threaded connection G 3/4 internal thread
Process connection	flange Ø 90 mm

Pack quantity	1 pcs.
