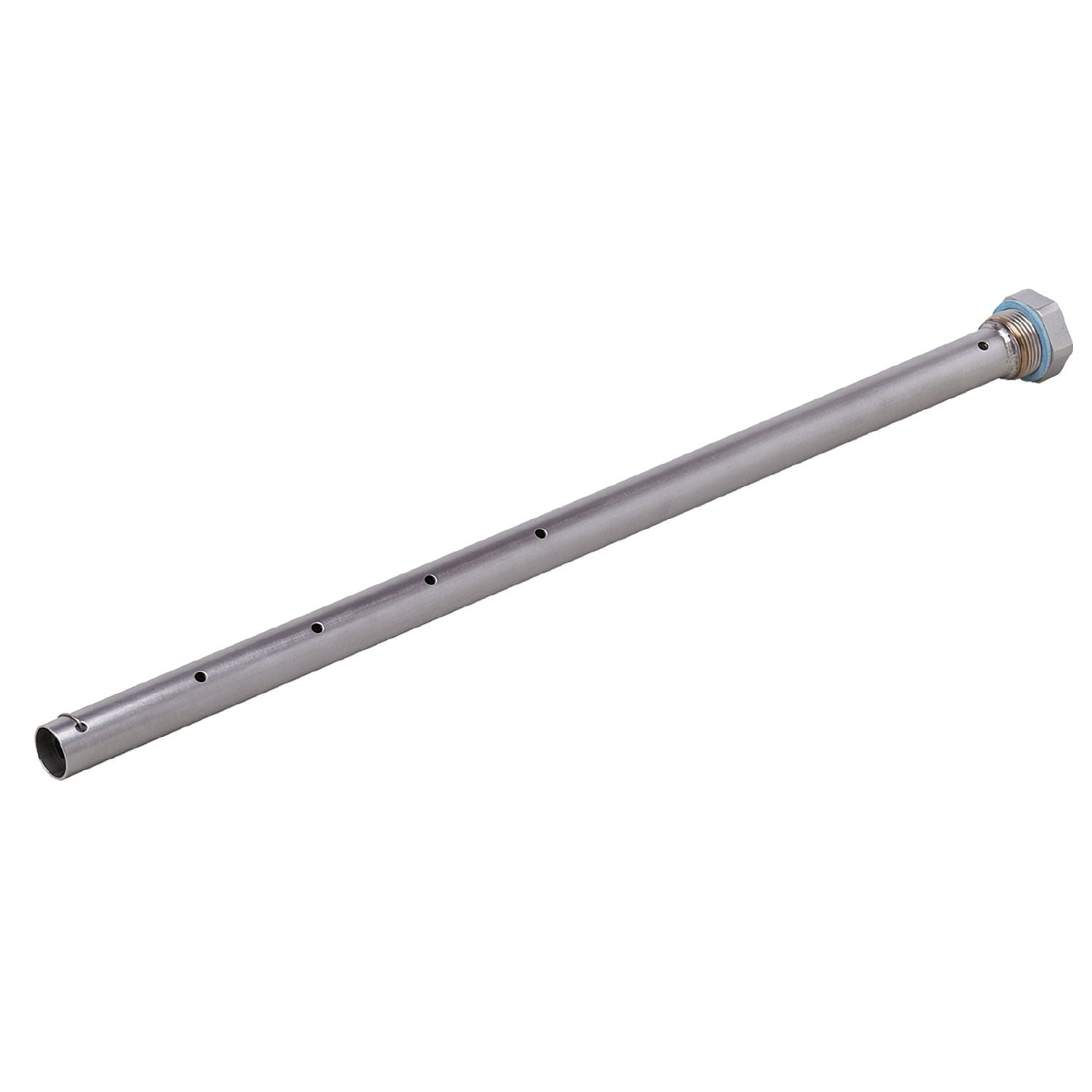

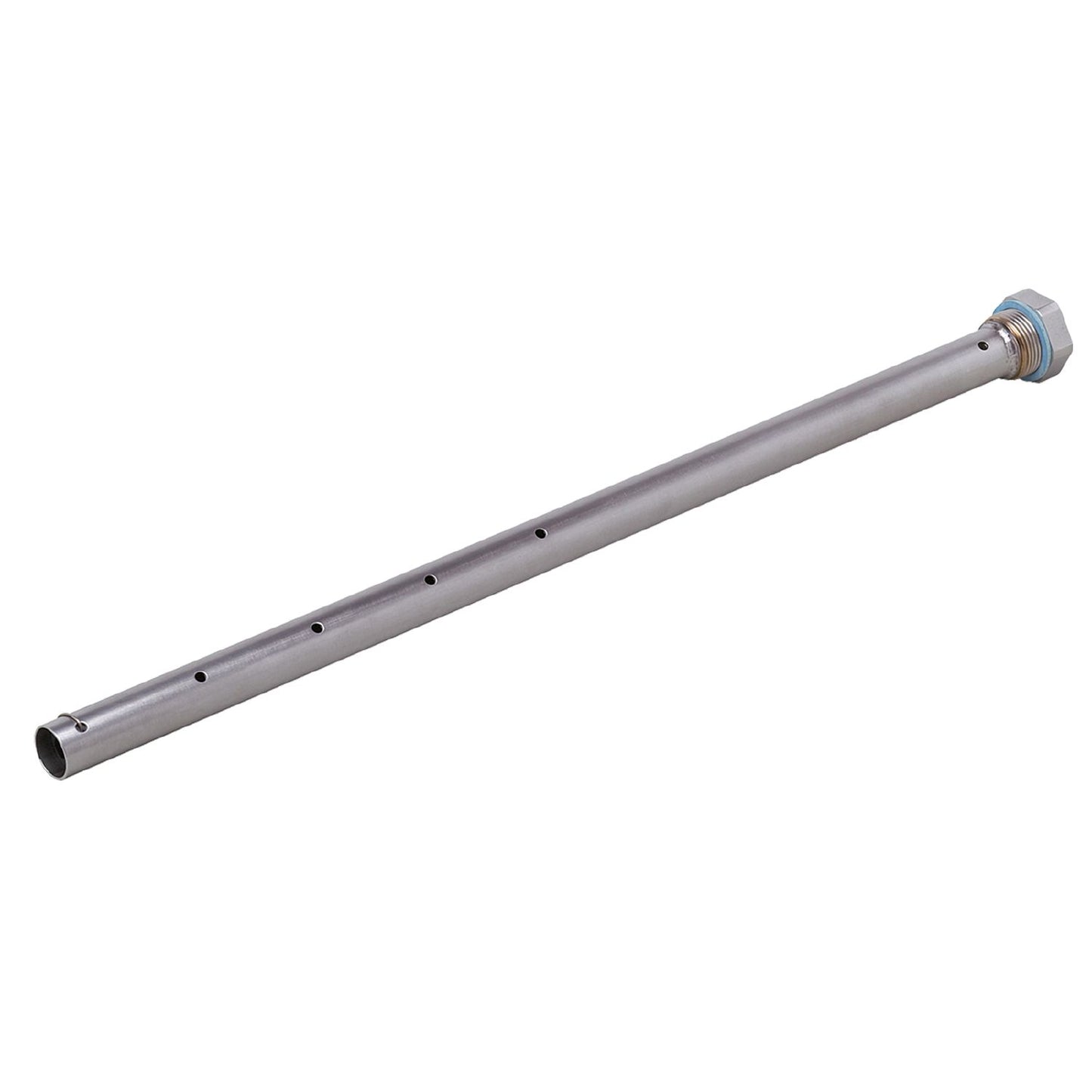

IFM E43217 - Coaxial pipe for level sensors LR COAX TUBE G3/4 L1600

For use in low dielectric media.
Reliable detection of oils and oil-based media.
Efficient protection against electromagnetic interference.
No minimum distance to the vessel wall required

Design	for level sensors LR
Medium temperature [°C]	-40...200
Pressure rating [bar]	16
Vacuum resistance [mbar]	-1000
MAWP (for applications according to CRN) [bar]	16

Weight [g]	890
Materials	Coaxial pipe: stainless steel (1.4301 / 304); Sealing: NBR reinforced fibre; Centring piece: PPS reinforced fibre; fixing bracket: stainless steel (1.4310 / 301)
Sensor connection	threaded connection G 3/4 internal thread
Process connection	threaded connection G 3/4 external thread
Length L [mm]	1600

Accessories

Items supplied	Sealing: 1
Accessories (optional)	Centring piece for coaxial pipes:, E43222

Remarks	When used under DNV GL conditions mounting of an additional centring piece is required
Pack quantity	1 pcs.
