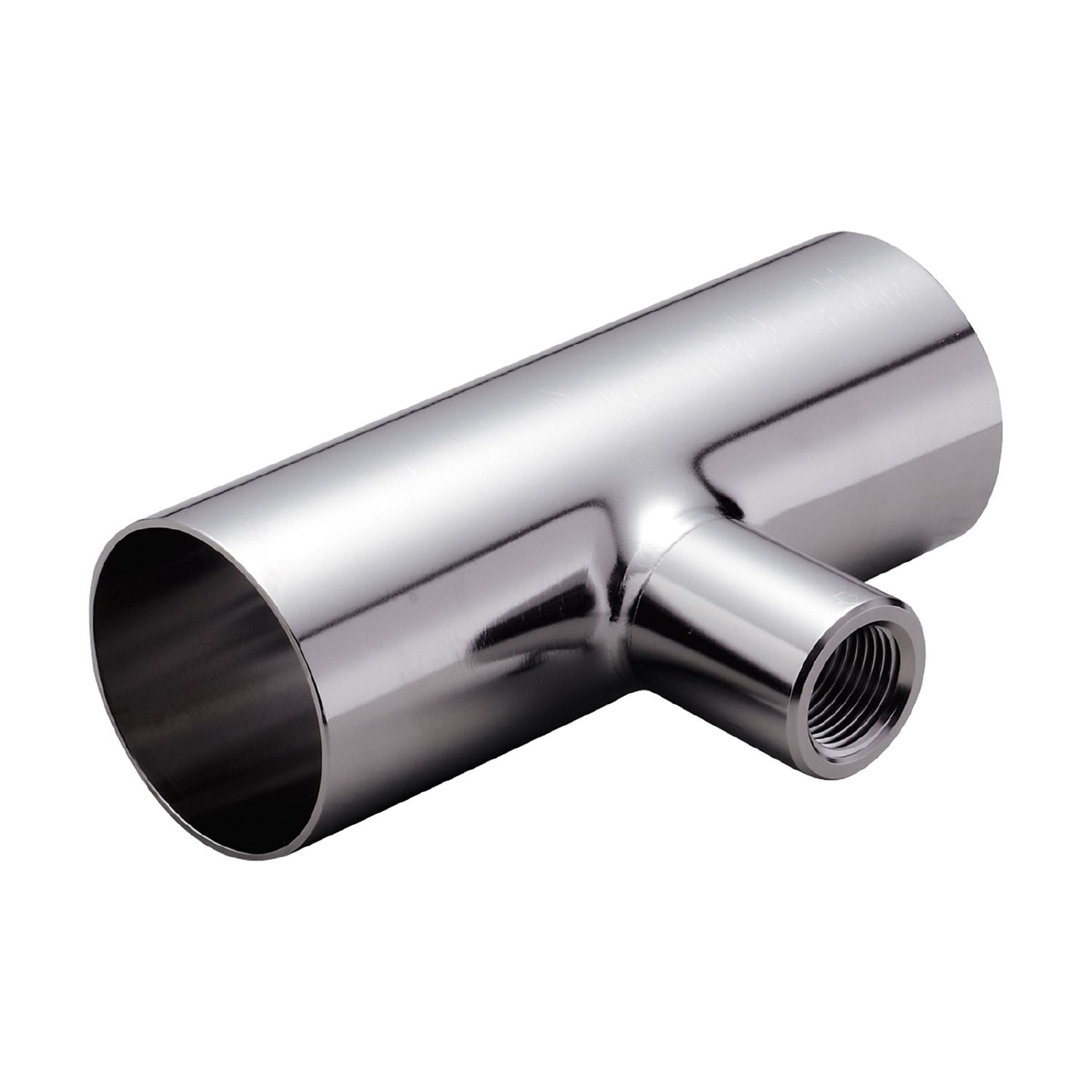

IFM E43318 - T-piece T-PIPE/G1/2/L140/DN50

Safe installation of process sensors in pipes.
For use in industrial and hygienic applications.
Robust stainless steel housing

Design	for sensors and adapters with process connection G ½ A
Pressure rating [bar]	20

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	667.5
Materials	stainless steel (1.4404 / 316L)
Sensor connection	G 1/2 sealing cone
Process connection	welding adapter Ø 53 mm
Surface characteristics Ra/Rz of the wetted parts	0.8 / 4

Accessories

Items supplied	O-ring: 1, FKM

Pack quantity	1 pcs.
