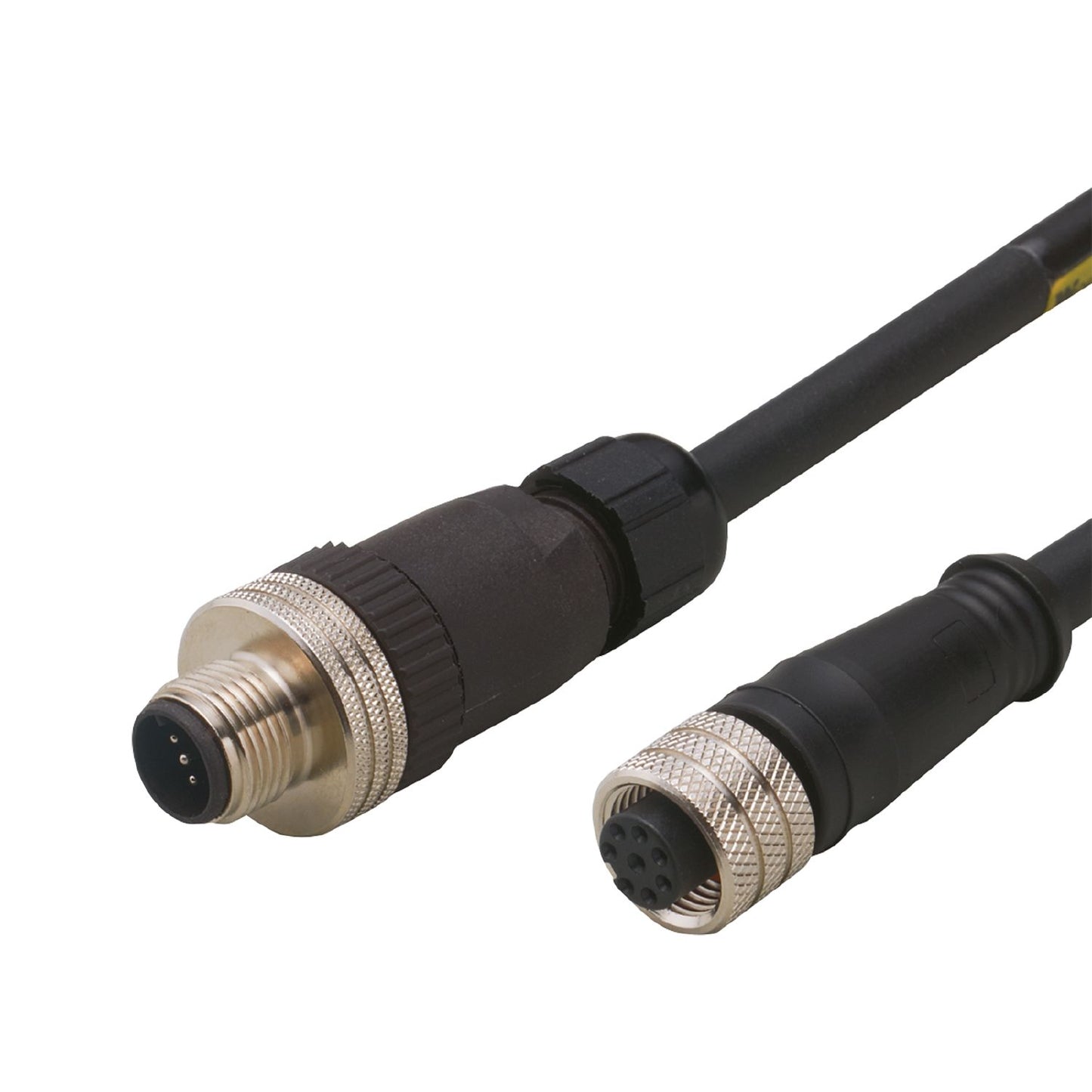

IFM E43332 - Connection cable CABLE CAN ADAPTER

Reliable connection technology for CAN bus participants.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Gold-plated contacts for reliable electrical connections

Special feature	Gold-plated contacts
Design	CAN adapter cable

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-30...80
Protection	IP 68

Weight [g]	48.8
Dimensions [mm]	20 x 20 x 55
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated

Electrical connection

Connection	Cable: 0.15 m, PUR / PVC, black, Ø 6.8 mm; 4 x 0.25 mm²

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43332-00 — 26.11.2013 —
