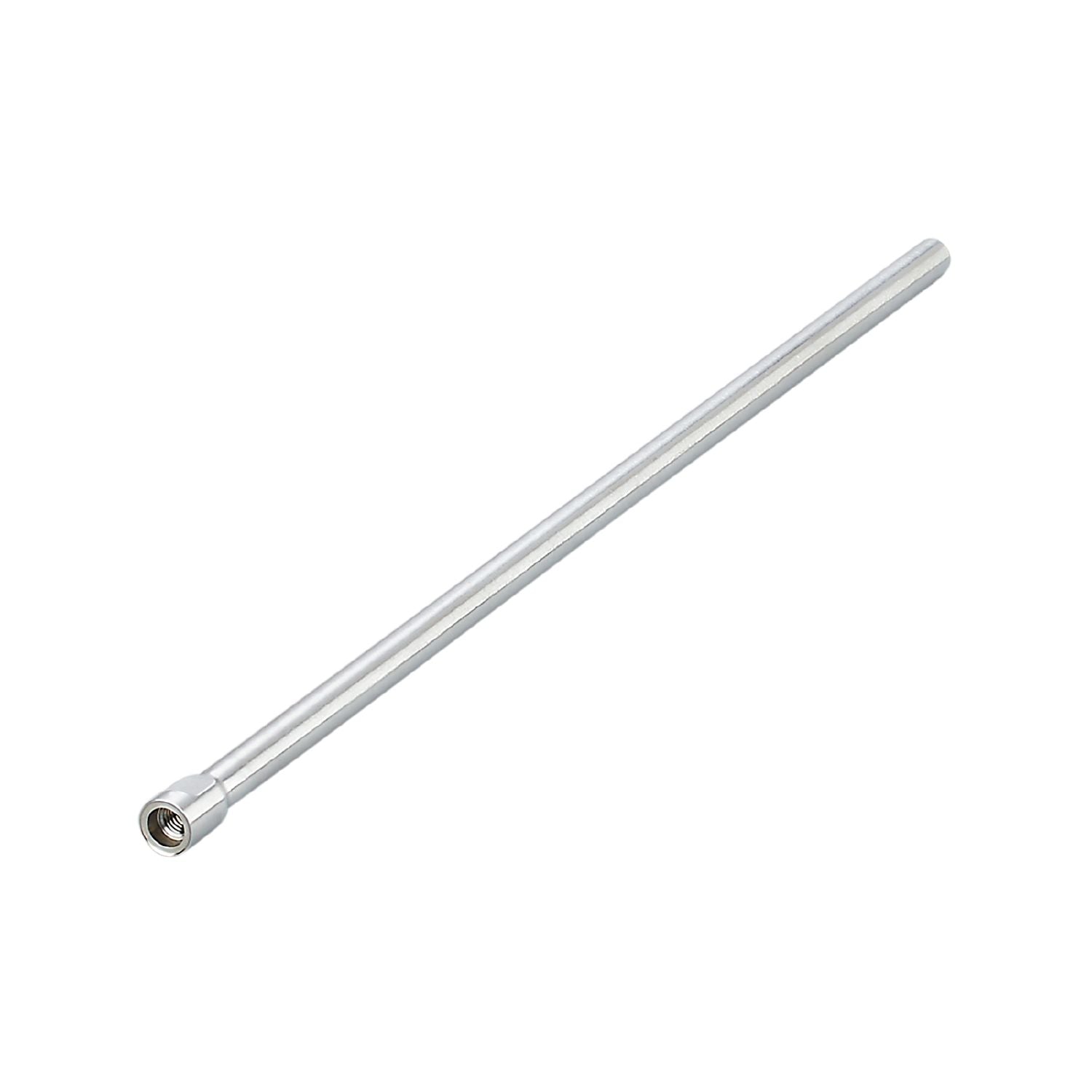

IFM E43342 - Probe for level sensors LR HYGIENE PROBE L2000

Required for the operation of level sensors with guided wave radar.
For the reliable detection of aqueous media.
Adaptation to different container heights through shortening of the probe.
Particularly suited for use in hygienic applications.
Easy, quick and secure mounting

Design	hygienic, for level sensors LR
Application	hygienic systems

Measuring/setting range

Probe length L [mm]	2000

Weight [g]	865
Materials	stainless steel (1.4404 / 316L)
Tightening torque [Nm]	< 6.5
Surface characteristics Ra/Rz of the wetted parts	< 0.8 / 8
Hygienic equipment class to DIN 11866	H3

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43342-00 — 25.03.2015 —
