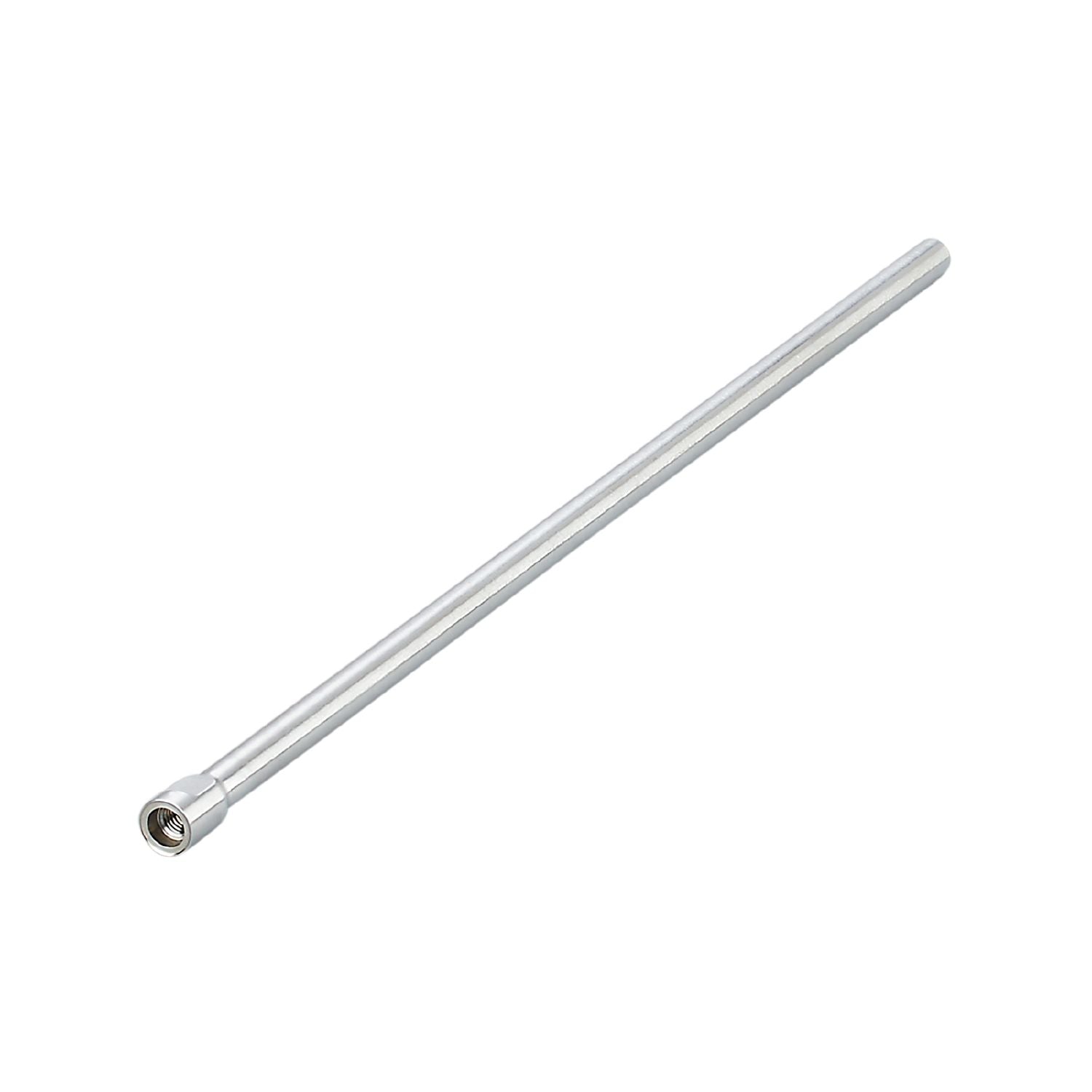

IFM E43348 - Probe for level sensors LR HYGIENE PROBE L1500

Required for the operation of level sensors with guided wave radar.
For the reliable detection of aqueous media.
Adaptation to different container heights through shortening of the probe.
Particularly suited for use in hygienic applications.
Easy, quick and secure mounting

Design	hygienic, for level sensors LR
Application	hygienic systems

Measuring/setting range

Probe length L [mm]	1500

Weight [g]	650
Materials	stainless steel (1.4404 / 316L)
Tightening torque [Nm]	< 6.5
Surface characteristics Ra/Rz of the wetted parts	< 0.8 / 8
Hygienic equipment class to DIN 11866	H3

Pack quantity	1 pcs.
