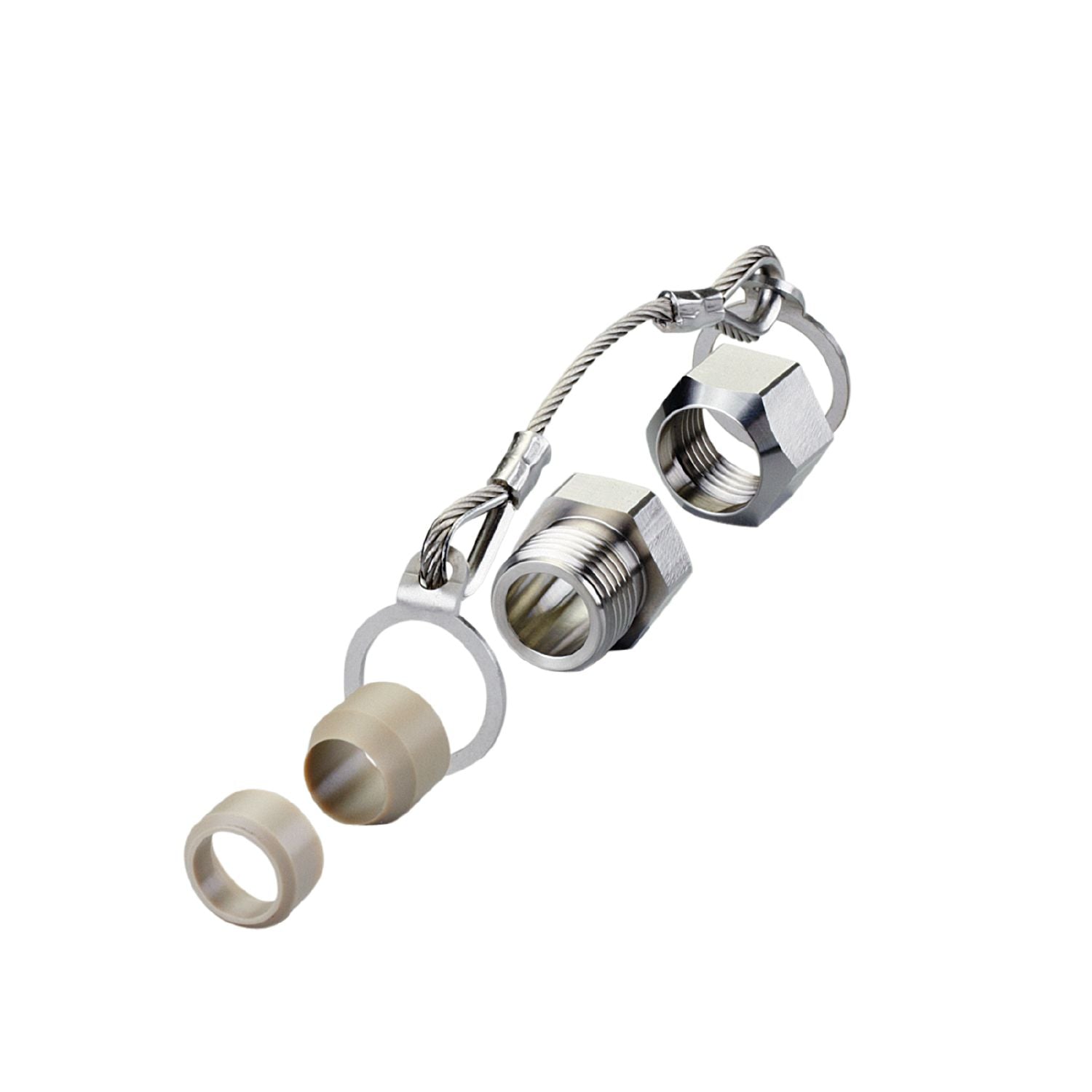

IFM E43349 - Clamp adapter for process sensors VARIABLE CLAMP ADAPTER 150

For the installation of level sensors in containers or pipes.
Easy, quick and secure mounting.
Particularly suited for use in hygienic applications.
Stainless steel adapter for the requirements of the food and beverage industry.
High pressure rating

Design	for hygienic adaptations G 1/2, for level sensor LMT104
Installation	Clamp fitting

Weight [g]	174.5
Materials	PEEK-GF30; stainless steel (1.4404 / 316L)
Sensor connection	Ø 14 mm
Process connection	threaded connection G 1/2 sealing cone

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43349-00 — 23.02.2015 —
