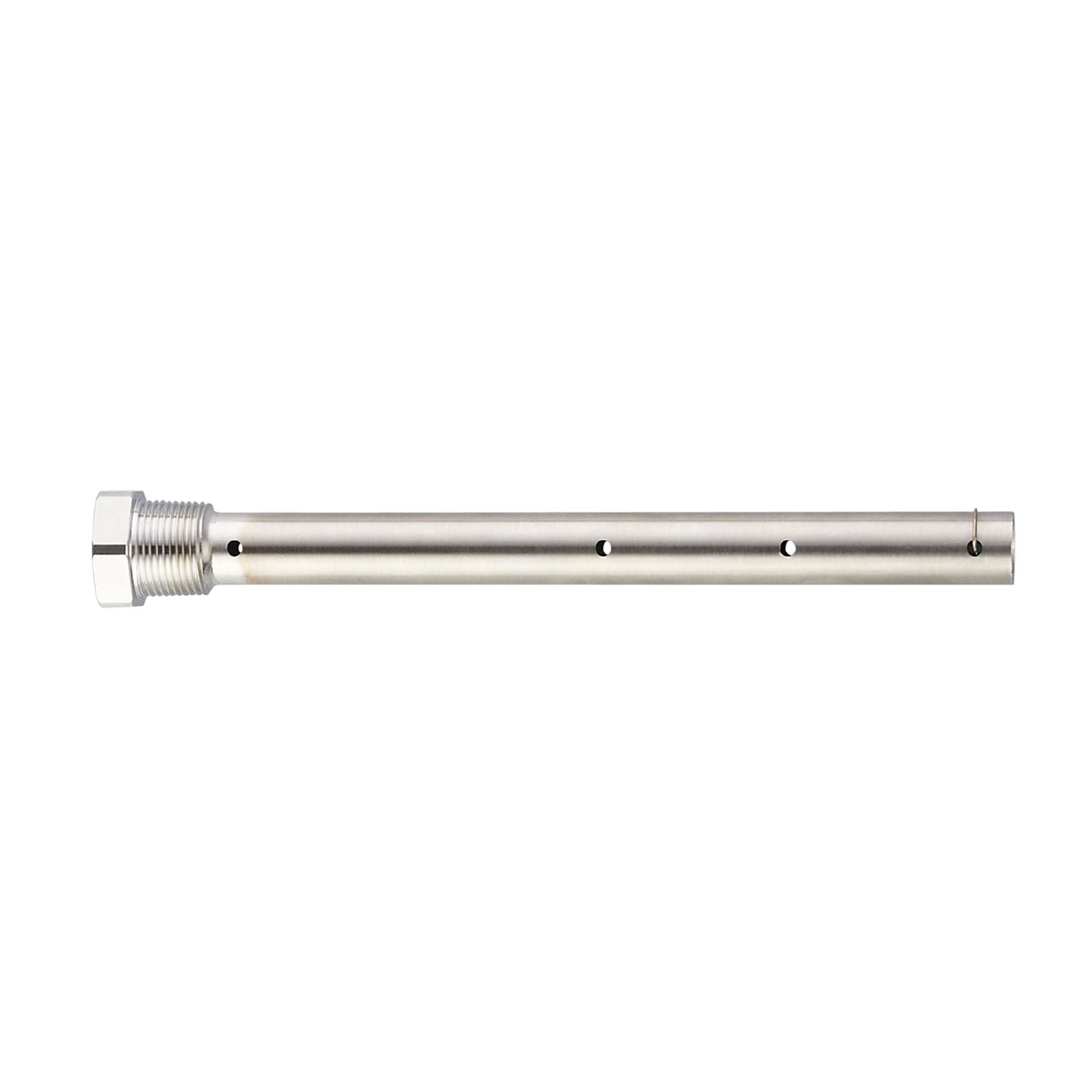

IFM E43378 - Coaxial pipe for level sensors LR COAX TUBE NPT L2000

For use in low dielectric media.
Reliable detection of oils and oil-based media.
Efficient protection against electromagnetic interference.
No minimum distance to the vessel wall required

Design	for level sensors LR
Medium temperature [°C]	-40...200
Pressure rating [bar]	16
Vacuum resistance [mbar]	-1000
MAWP (for applications according to CRN) [bar]	16

Weight [g]	1120
Materials	Coaxial pipe: stainless steel (1.4301 / 304); fixing bracket: stainless steel (1.4310 / 301); Centring piece: PPS reinforced fibre
Sensor connection	threaded connection G 3/4 internal thread
Process connection	threaded connection 3/4" NPT external thread
Length L [mm]	2000

Pack quantity	1 pcs.
