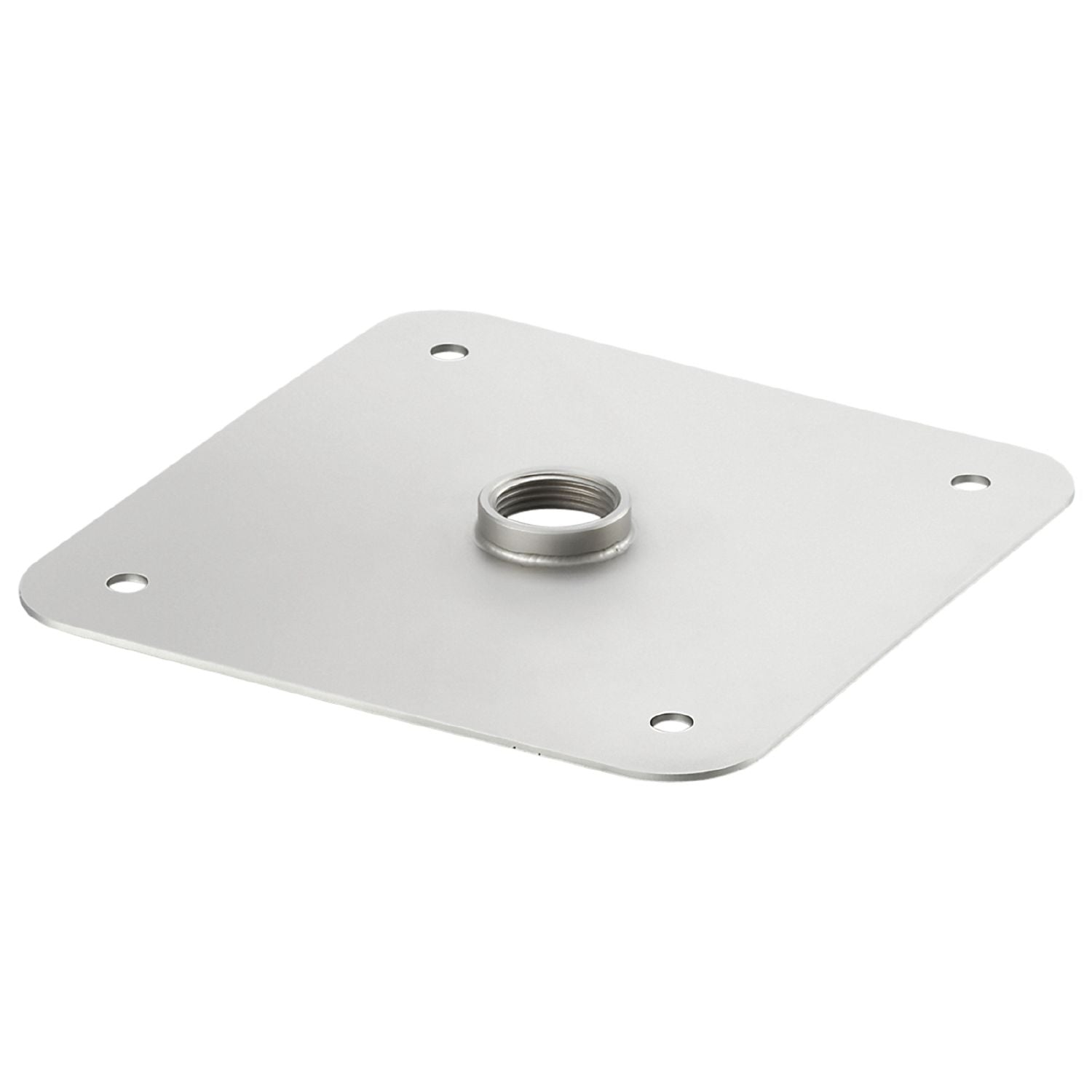

IFM E43380 - Coupling plate for level sensors LAUNCHING PLATE G3/4

Optional for the operation of level sensors with guided wave radar.
Easy, quick and inexpensive mounting in the tank lid.
Required for the operation on containers with plastic lid

Design	for level sensors LR
Tank pressure [bar]	-1...16

Weight [g]	627.5
Materials	stainless steel (1.4571/316Ti )
Tightening torque [Nm]	6...9
Sensor connection	threaded connection G 3/4 internal thread
Process connection	flange Ø 180 mm

Pack quantity	1 pcs.
