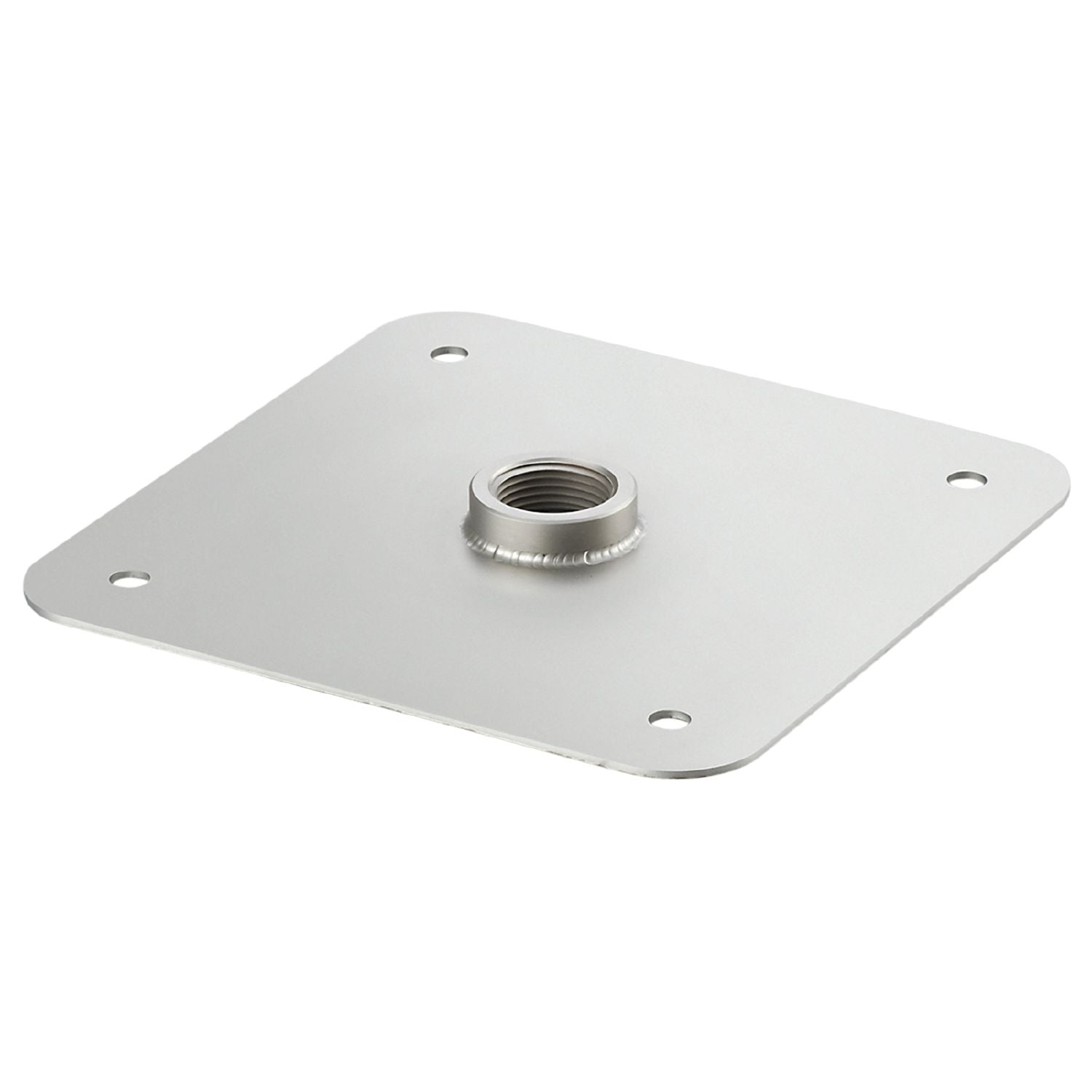

IFM E43381 - Coupling plate for level sensors LAUNCHING PLATE 3/4NPT

Optional for the operation of level sensors with guided wave radar.
Easy, quick and inexpensive mounting in the tank lid.
Required for the operation on containers with plastic lid

Design	for level sensors LR
Tank pressure [bar]	-1...16

Weight [g]	634.65
Materials	base plate: stainless steel (1.4571/316Ti ); Adapter: stainless steel (1.4404 / 316L)
Tightening torque [Nm]	6...9
Sensor connection	threaded connection 3/4" NPT internal thread
Process connection	flange Ø 180 mm

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43381-00 — 13.02.2017 —
