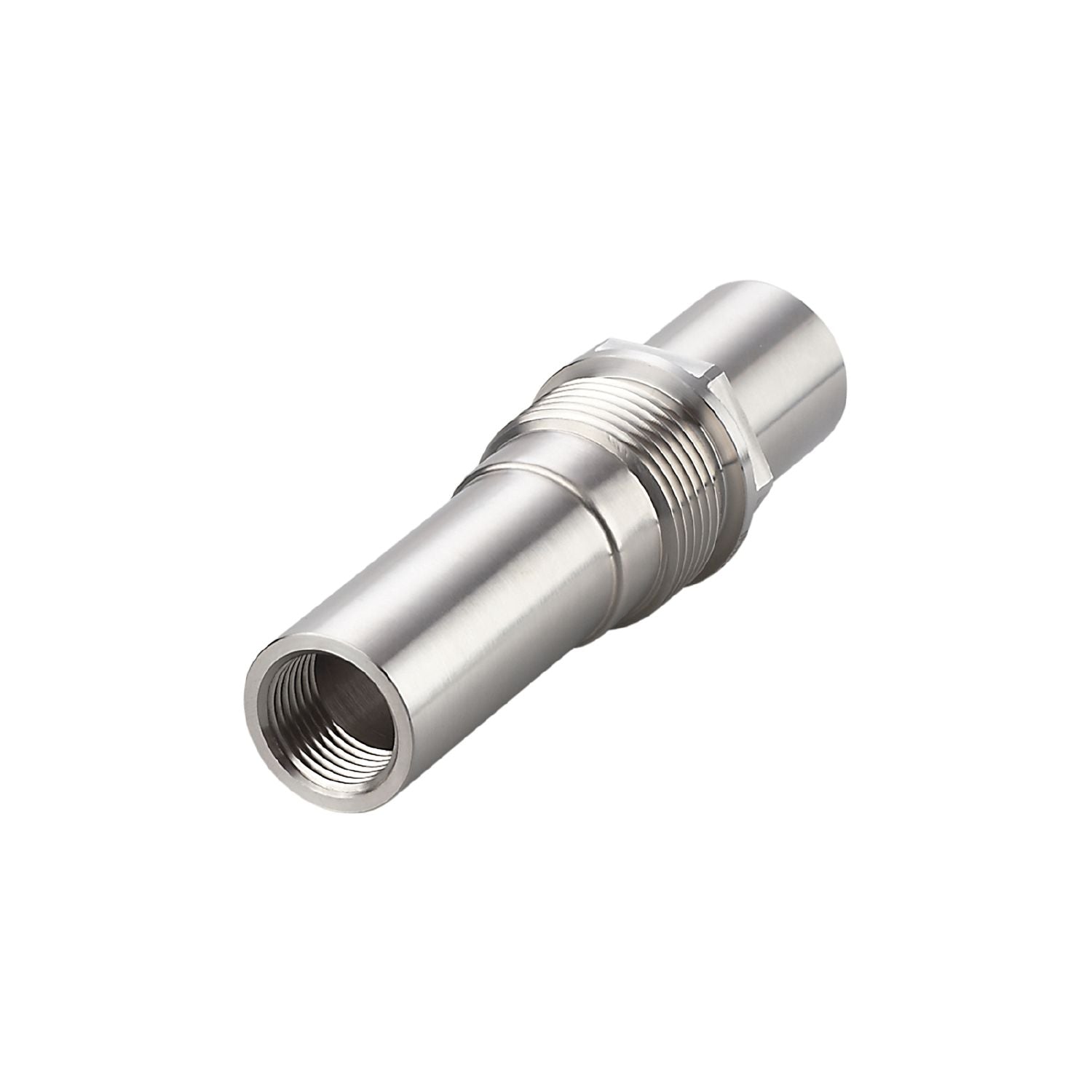

IFM E43383 - Screw-in adapter for process sensors ADAPT F VIBRATION FORK SPARE

Pressure rating [bar]	40

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	276.5
Materials	Adapter: stainless steel (1.4404 / 316L); Cover: PVC
Sensor connection	G 1/2
Process connection	G 1

Accessories

Items supplied	Cover

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43383-00 — 29.03.2017 —
